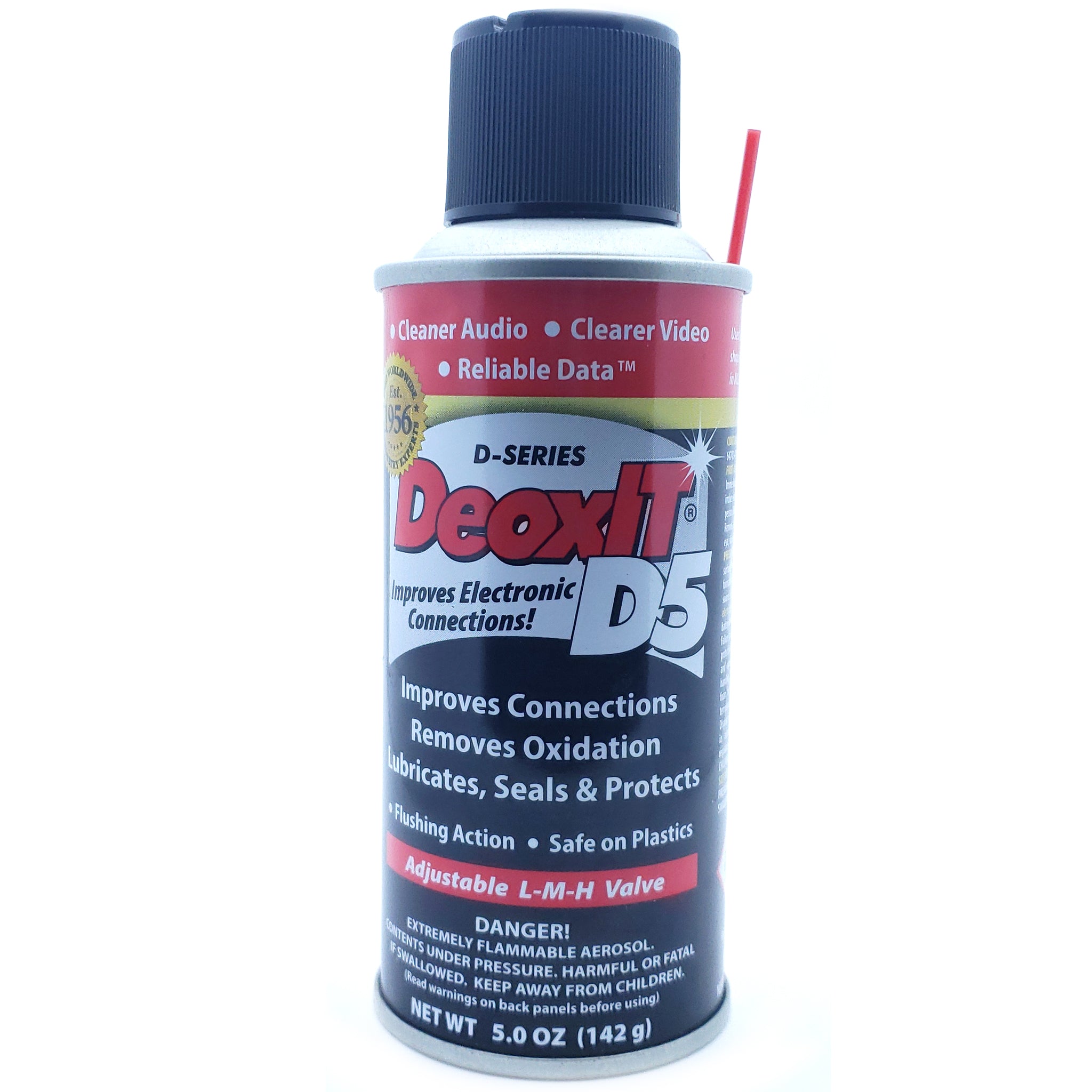

DeoxIT D-Series D5
DeoxIT D-Series D5 Contact Cleaner Spray
The DeoxIT D-Series D5 contact cleaner is a fast-acting treatment for restoring and protecting metal connectors and contacts. This 5 oz aerosol can uses an adjustable Low-Med-High spray valve to flush away contaminants, dissolve oxidation, and improve conductivity in audio, electronic, and industrial equipment.
Key Features of DeoxIT D5
- Removes oxidation, corrosion, dust, and light grease from metal contacts and connectors
- Improves conductivity and helps restore reliable signal and power transfer
- Reduces intermittent connections, arcing, noise, and RF interference
- Provides light lubrication to minimize wear and abrasion on mating surfaces
- Safe on most plastics – ideal for modern electronics and connectors (always test on sensitive or vintage parts)
- Adjustable Low-Med-High (L-M-H) valve for precise control of spray volume
Where to Use DeoxIT D5
- Audio gear: jacks, plugs, patch bays, RCA connectors, XLRs, speaker terminals, tube sockets
- Electronics and test equipment: edge connectors, sockets, headers, relay contacts, terminal strips
- Computers and networking: I/O connectors, card slots, backplane connections, power connectors
- Broadcast, studio, and live sound rigs: multicore connectors, snakes, stage boxes, rack gear
- Automotive, marine, and industrial controls: sensor connectors, control panels, low-voltage terminals
Simple Application for Reliable Connections
DeoxIT D5 is designed for quick, effective maintenance:
- Power down and disconnect equipment before cleaning.
- Set the L-M-H valve to the desired level for light, medium, or heavy spray.
- Spray directly onto the contact or connector to flush away contamination.
- Insert and cycle plugs, switches, or connectors several times to work the solution in.
- Allow the solvent to evaporate before reapplying power. The slower-evaporating carrier provides flushing action and leaves a thin protective film.
Technical Details
- Product: DeoxIT D-Series D5 Contact Cleaner
- Part number: D5S-6 (L-M-H adjustable valve)
- Net contents: 5 oz (142 g) aerosol spray can
- Formulation: 5% DeoxIT active ingredient, 75% odorless mineral spirits (carrier solvent), 20% propellant
- Approximate deoxidizing action: 20%
- Temperature range: -34 °C (-29 °F) to +200 °C (400 °F)
- Flammability: briefly flammable until solvent evaporates
- Compliance: RoHS and VOC compliant
Important Shipping Information
Note: This aerosol product is classified as hazardous for transport and cannot ship by air. It must be shipped via ground service only.
Includes: One 5 oz (142 g) DeoxIT D5S-6 L-M-H aerosol spray can.
