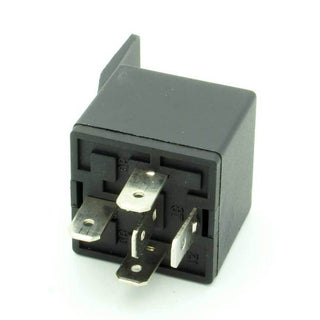

12VDC 40A SPDT Automotive Relay
12VDC 40A SPDT Automotive Relay – Easy, Reliable Power Switching12V Automotive Relay – Simple, Versatile, and Durable
Looking for a reliable solution for switching high currents in your car, truck, or project? This 12VDC 40A SPDT Automotive Relay is the perfect choice for everyday consumers seeking dependable automotive relay performance and easy installation.
Key Features of the 12V 40A SPDT Relay
- High-Current Switching: Handles up to 40 amps (NO) and 30 amps (NC) at 14VDC – perfect for headlights, fans, fuel pumps, and other automotive accessories.
- Single Pole Double Throw (SPDT): Versatile contact form for switching between two circuits – use as a changeover relay for added flexibility.
- 5-Terminal Design: Standard automotive relay pinout with 0.250" quick connect terminals for fast, secure wiring.
- Plastic Mounting Tab: Easy to install – snap it into a relay socket or use the plastic tab for chassis mounting in your car, truck, or DIY project.
- Automotive-Grade: Built for performance and durability in demanding environments.
Technical Specifications
| Coil Voltage | 12VDC |
|---|---|
| Coil Type | Non-latching |
| Contact Form | SPDT (Single Pole Double Throw) |
| Contact Current Rating | 40A NO (Normally Open), 30A NC (Normally Closed) at 14VDC |
| Termination Style | Plug-in, .250" Quick Connect Terminals (5-pin) |
| Mounting Type | Socketable, Chassis Mount with Plastic Tab |
Quick and Hassle-Free Installation
This automotive relay easily plugs into relay sockets or quick connects, making wiring simple and secure. The plastic tab lets you attach the relay wherever you need it in your vehicle or project enclosure.
Need a matching relay socket? Check out the CES-BRS-006 Relay Socket here for the perfect fit.
Perfect For Many Uses
- Automotive electrical systems
- Upgrade or replace relays in cars, trucks, RVs, and boats
- Switching high-current loads in hobby, DIY, and electronics projects
- Control lights, motors, horns, pumps, and other 12V accessories
Make power switching fast and easy in your next project with this dependable 12V 40A SPDT relay – your go-to solution for automotive and general 12V switching needs.
