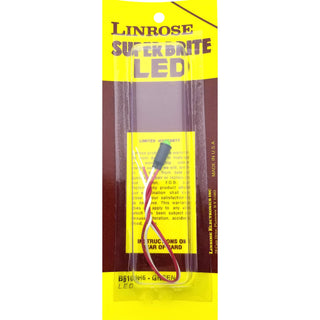

Linrose B5100H5 5mm Green Panel Mount LED
SKU: B5100H5
Green LED
- Size : T1¾ (5mm)
- Voltage : 2.2V
Specifications
| Size | T1¾ (5mm) |
| Lens Color | Diffused |
| Voltage | 2.2V |
| Mounting | Will snap-fit into Ø.249”/.254” hole in panels .031”/.062” thick. |
| Wire Leads | No. 24 AWG, 6” insulated, bonded strands, stripped 1/2” |
| Anode (+) | Red Lead |
| Housing | Black Nylon |
| Emitted Color | Green |
| Typical Intensity (mcd) | 30 |
| Rated Current (mA) | 20 |
| Continuous Forward Current Max. (mA) | 30 |
| Forward Voltage | Typ. (V) : 2.2 Max. (V) : 3. 0 |
| Peak Forward Current @ 1ms-300 PPS (A) | .09 |
| Reversem Breakdown Voltage Min. (V) | 5 |
| Peak Wavelength (nm) | 562 |
