MG Super Thermal Grease
MG Part Number: 8616-3ml

Designed for use with heat sinks to effectively dissipate heat generated by electronic devices and circuitry. Ideally used to cool CPUs (over clocking), chipset and graphics cards.

Formulated with Boron Nitride, this grease gives super high thermal conductivity without the capacitance issue associated with silver filled greases.

• Thermal conductivity of 1.8 w/(m·k)
• Silicone Free and non-bleeding
• Lowers the contact resistance between irregular surfaces
• Extends the life of electronic components
• High dielectric strength
• Safe on plastics

Heat sinks alone are not effective enough to properly cool your system do to the imperfections on the surface of your circuitry and the heat sink.

The use of our Super Thermal Grease in assisting the heat sink will provide you with superior heat dissipating ability.

Specifications:

Physical Properties
Shelf Life		5 year
Storage Temperature Limits		-10 to +40 °C [14 to +104°F]
Service Temperature		-68 to +165 °C [-90 to +329 °F]
Maximum coverage for 25μm [1.0 mil] thickness		2 [2]
Color		White, silvery cream-like
Filler		Aluminum oxide, zinc oxide, and boron nitride
Odor		Odorless
Density @25 °C		2.74 g/mL
Viscosity @25 °C [77 °F]		test in progress
Drop Point	ASTM D 2265	> 300°C [> 572 °F]
Cone Penetration	ASTM D 217	test in progress
Oil Separation (Boeing test)		None
Salt Spray Corrosion Resistance	ASTM B 117	Pass
Corrosivity		Non-corrosive
%Evaporation loss @ 25 °C, 44 h		0% (wt)
%Evaporation loss @ 204 °C, 44 h		5% (wt)
VOC (Volatile Organic Compound)	Estimated	5% to 18%
Lubricant		No
Bleed resistant		Yes
Thermal Properties
Thermal Conductivity @25 °C	ASTM E 1461	1.8 W/(m·žK)
		12 Btu·in/(h·ft2·°F)
Volume resistivity (ρv)		test in progress
Dielectric strength		test in progress
Synthetic Oil Properties
Oil viscosity index	ASTM D 2270	> 110
Fire Point	ASTM D 92	321 °C [559 °F]
Flash Point	ASTM D 92	> 290 °C [550 °F]

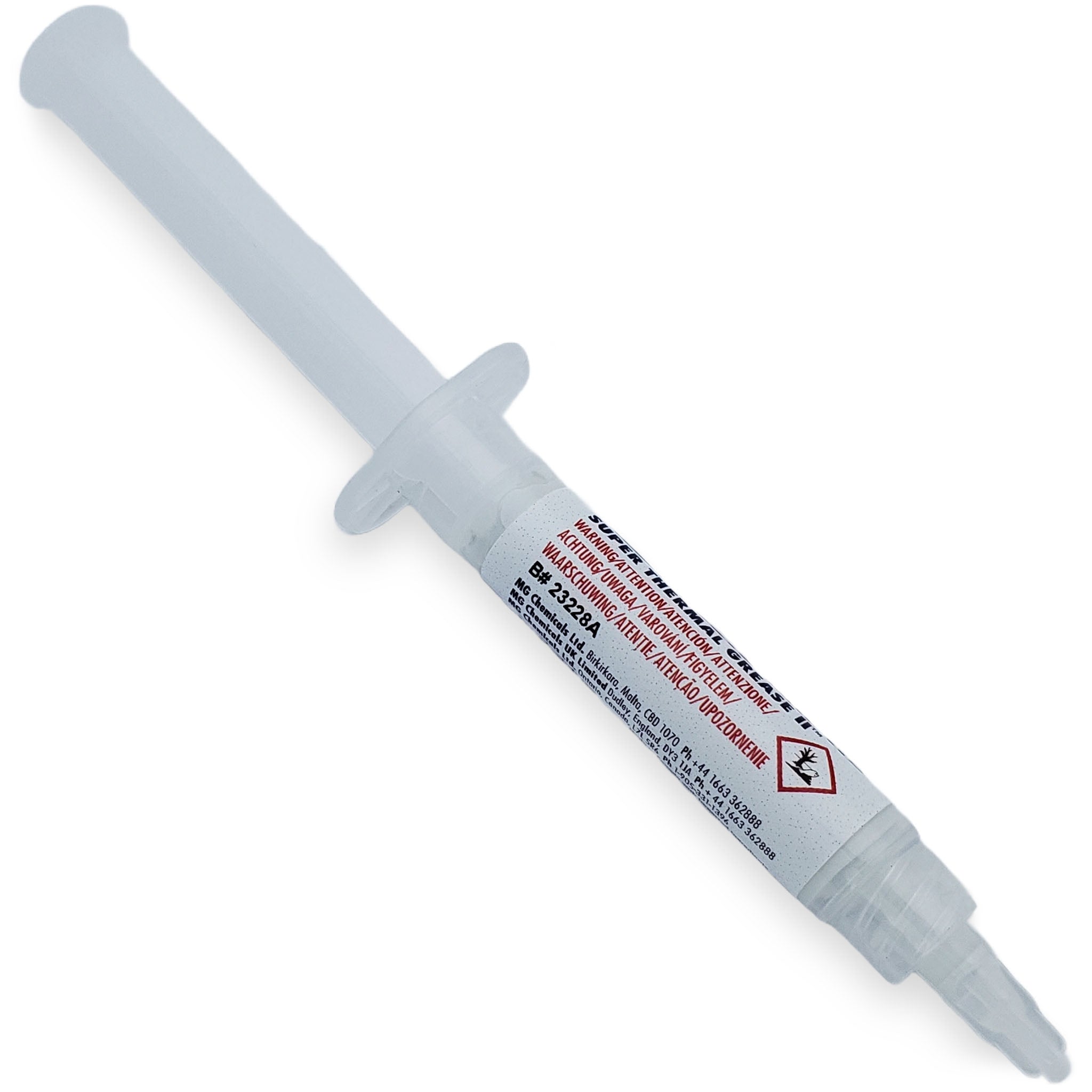

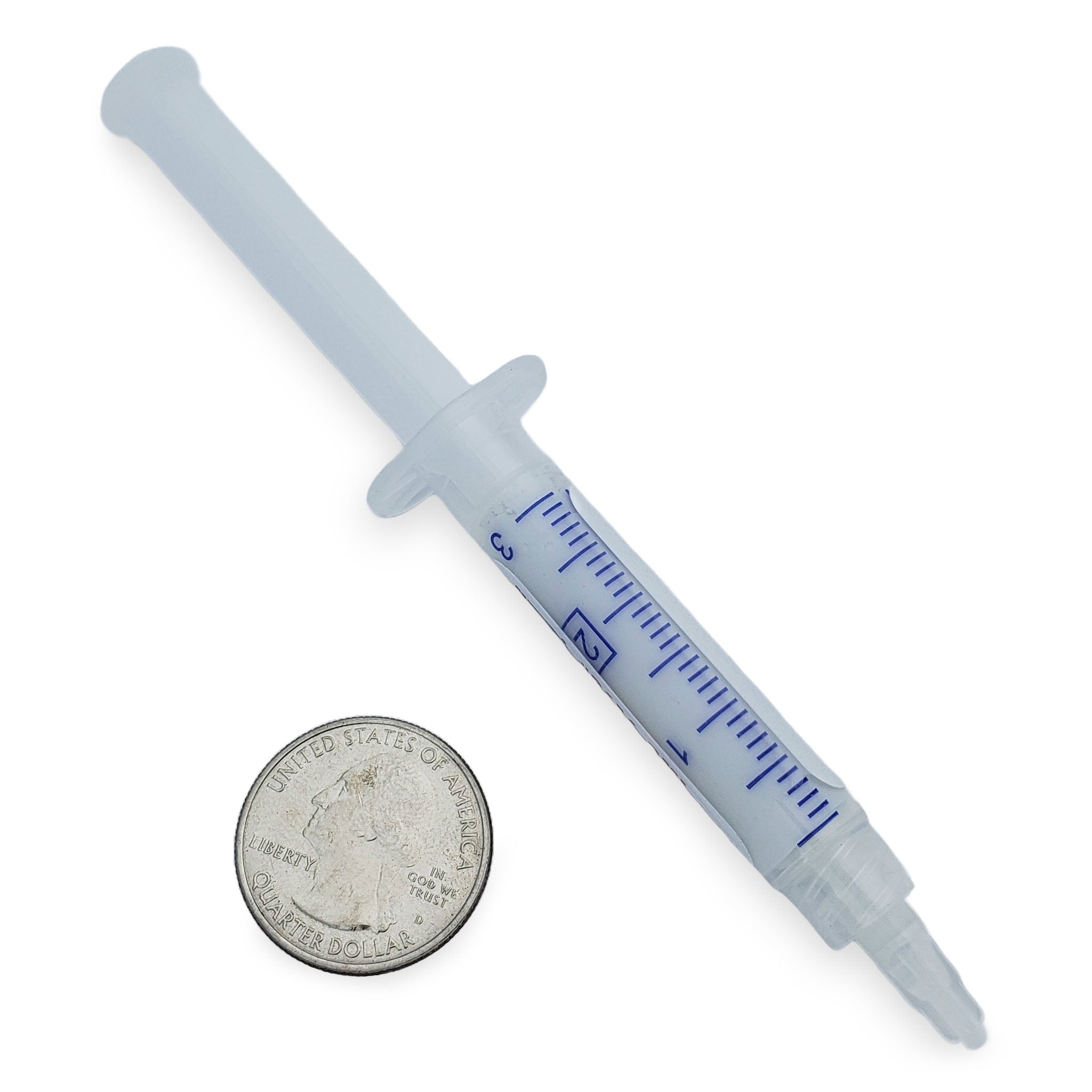

QTY: 1 3ml Syringe (.10oz)

For full specs, please see the DATASHEET.
