IEC C14 Jack, Panel-mount w/Flange
SKU: 8529B
Regular price
$1.99
- Unit price
- / per
IEC C14 Jack Panel-mount w/Flange

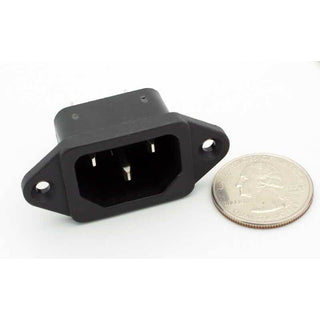

This is a panel mount IEC C14 Jack. It features a flange with two mounting holes spaced 42.5mm apart. This is an easy to mount power jack because the panel cut out hole does not need to be the same precision as snap-in style jacks. It can also be mounted in much thicker panels.
The overall dimensions of the jack are: 22.5mm High x 50mm Wide x 28mm Deep, Including Terminals
The panel cut out dimensions are:: 19mm High x 27mm Wide
Electrical Rating: 10A / 250VAC

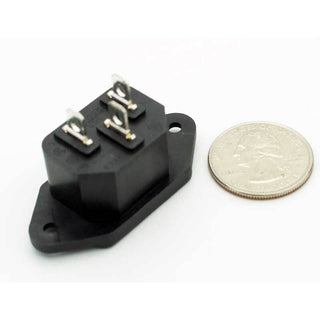

The rear of the connector has 3 solder or 0.187" Quick Connect Terminals for the ground, hot and neutral conductors. The solder tabs will accept 14AWG wire.
QTY: 1 x IEC C14 Jack, Panel-mount w/Flange
This is a panel mount IEC C14 Jack. It features a flange with two mounting holes spaced 42.5mm apart. This is an easy to mount power jack because the panel cut out hole does not need to be the same precision as snap-in style jacks. It can also be mounted in much thicker panels.
The overall dimensions of the jack are: 22.5mm High x 50mm Wide x 28mm Deep, Including Terminals
The panel cut out dimensions are:: 19mm High x 27mm Wide
Electrical Rating: 10A / 250VAC
The rear of the connector has 3 solder or 0.187" Quick Connect Terminals for the ground, hot and neutral conductors. The solder tabs will accept 14AWG wire.
QTY: 1 x IEC C14 Jack, Panel-mount w/Flange
