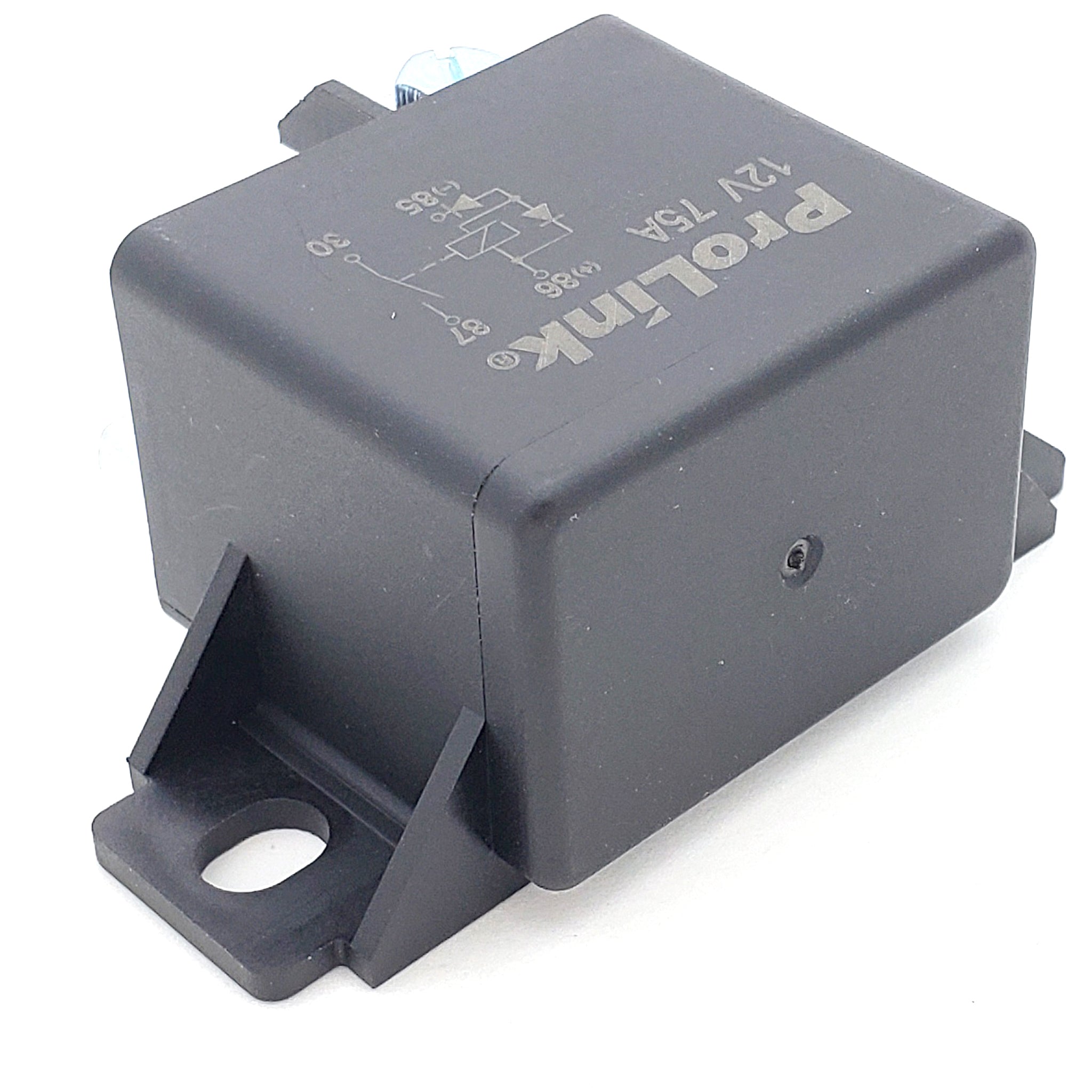

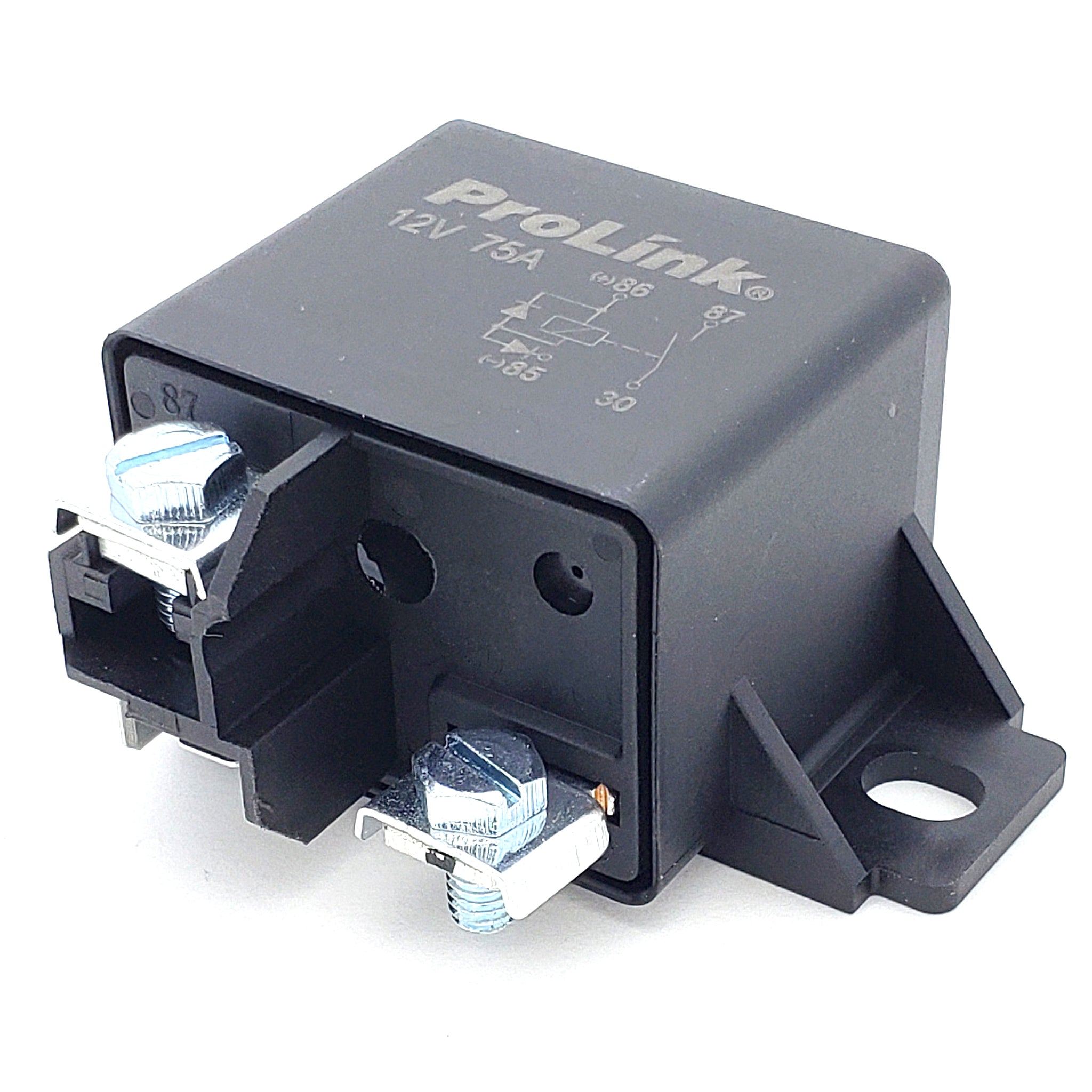

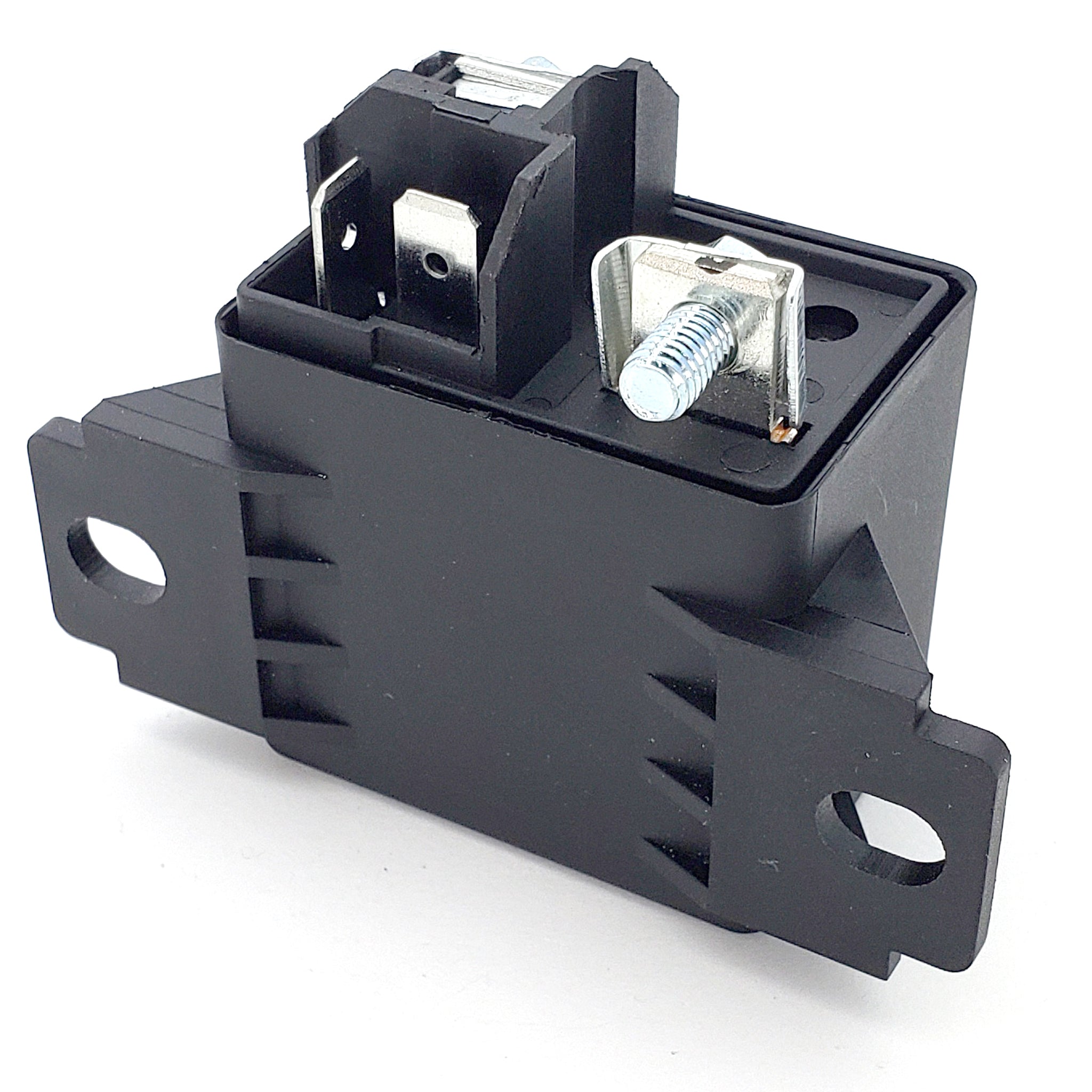

75 Amp 12V DC Relay Module - Universal - Easy Mount
75 Amp 12 V DC Relay Module – Universal, Easy-Mount
Heavy-Duty, Easy-Mount 12 V DC Relay Module
This 75 amp 12 V DC relay module is a rugged, universal relay module designed for simple installation and reliable high-current switching. The easy-mount relay module bolts or screws to most flat surfaces—dash panels, engine bays, project boxes—or can be secured with zip ties for quick setups.
Built for Automotive & DIY Power Projects
Ideal as an automotive relay module for light bars, auxiliary lighting, high-amperage accessories, pumps, and fans, as well as general 12 V DC projects. Use it anywhere you need clean, reliable switching without stressing your control circuit.
Simple Connections
- Coil terminals: 0.250″ quick-connect tabs (approx. 6.35 mm) for fast, tool-friendly hookup
- Load terminals: Heavy-duty screw terminals for secure, high-current cable connections
- Mounting: Easy surface mount to boards, walls, or panels (screw/bolt or zip tie)
Key Features
- 75 A relay module for high-current loads
- 12 V DC coil with normally-open (NO) contact configuration
- Universal, easy-mount design fits a wide range of installations
- Great for vehicle exterior/interior lighting, aftermarket accessories, and other 12 V applications
Technical Specifications
| Coil Voltage | 12 V DC (Normally Open) |
| Contact Rating | 75 A (heavy-duty) |
| Contact Voltage Range | 0 – 15 V DC |
| Coil Connections | 0.250″ quick-connect terminals |
| Load Connections | Screw terminals |
| Mounting | Surface-mount (screw/bolt or zip-tie) |
Where It Works Best
- Vehicle light bars and auxiliary lighting
- High-amperage 12 V accessories and add-ons
- DIY electronics, marine, RV, off-road, and power-sports projects
Note: For best results, size wiring and fusing for 75 A loads and follow standard 12 V DC wiring practices.
