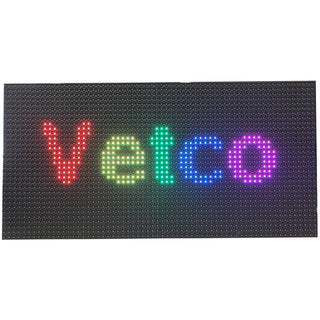

64x32 Color LED Matrix Screen (RGB) for ESP32, Arduino or Raspberry Pi
64x32 Color LED Matrix Screen for ESP32, Arduino or Raspberry Pi
Bring Your Projects to Life with a 64x32 RGB LED Matrix Panel

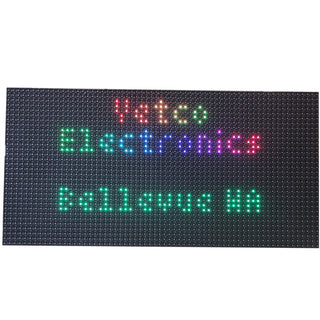

Create dazzling, colorful displays with this 64x32 color LED matrix screen. It’s perfect for anyone who wants to add big, bright visuals to DIY electronics, from scrolling text banners to simple graphics—all controlled by your favorite microcontrollers like Arduino or Raspberry Pi.
Easy to Use, Versatile, and Fun
Designed with everyday makers in mind, this LED display for Arduino and Raspberry Pi is easy to integrate into your next project. Use open-source libraries and community guides to get started quickly. The HUB75 interface ensures broad compatibility and simple wiring, whether you’re showing time, weather, or game stats.
For best results, use this screen with an ESP32. ESP32's can drive this unit at high frame rates and higher quality graphics. But you must us a powered logic level converter because the screen requires 5V logic, and the ESP32 is only 3.3V logic. We sell the recommended ESP32 and the the logic level adapter board.
You can also run this using an Arduino Mega 2560 (UNO will slow on complex animations to about 0.50 FPS), or connect to a Raspberry Pi for even more possibilities. Just add your own microcontroller and a 5V, 3A or higher power supply (not included).

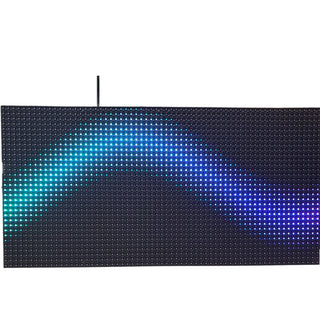

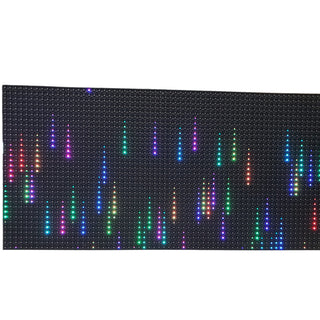

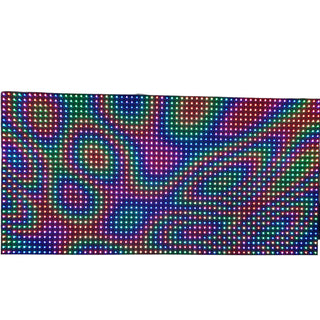

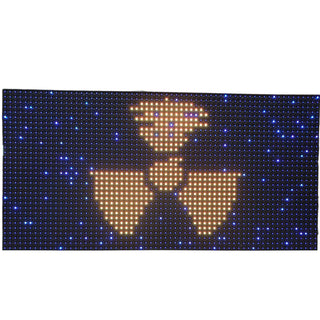

This screen can do 12Bit color, and gradients. Each pixel is brightness controllable. Meaning you can do some VERY cool graphics on this. Gang enough panels, and you can do full color images or video. This is not your standard old scrolling marque sign. This is something so much more.
Important: Do not power this RGB LED matrix from your Arduino’s onboard regulator—it needs its own 5V external supply to run safely!
Key Features of the 64x32 Color LED Matrix
- Large 320mm × 160mm RGB panel—perfect for bold, eye-catching projects
- 2048 full-color LEDs (64 x 32 resolution) provide sharp images and vibrant text
- 5mm LED pitch balances detail and viewing distance
- Wide viewing angle: ≥140° so your message is clear from any direction
- Works with Arduino, Raspberry Pi, or other controllers using the HUB75 header
- Low power use (≤20W) for efficient operation
Technical Specifications
| Dimensions | 320mm × 160mm |
|---|---|
| Pixels | 64×32 = 2048 DOTS |
| Pitch | 5mm |
| Pixel form | 1R1G1B (Red, Green, Blue) |
| Viewing angle | ≥140° |
| Control type | synchronization |
| Driving | 1/16 scan |
| Header | HUB75 (Requires 5V logic) |
| Power supply | 5V / 4A (VH4 header input) |
| Power | ≤20W |
| Product ID | VUPN1217 |
HUB75 Pinout Reference
| Pin | Description | Pin | Description |
|---|---|---|---|
| VCC | 5V power input | GND | Ground |
| R1 | R higher bit data | R2 | R lower bit data |
| G1 | G higher bit data | G2 | G lower bit data |
| B1 | B higher bit data | B2 | B lower bit data |
| A | A line selection | B | B line selection |
| C | C line selection | D | D line selection |
| E | E line selection | CLK | clock input |
| LAT/STB | latch pin | OE | output enable |
Get Started Easily
You’ll find helpful resources to speed up your builds—including a detailed usage guide for the 64x32 RGB LED matrix (external link).
Microcontroller and power supply not included. Please note: Vetco is unable to provide technical assistance for this product.
Want a copy of our in store demo running on THIS ESP32?
Click here for the program source code.
And you need this board!
