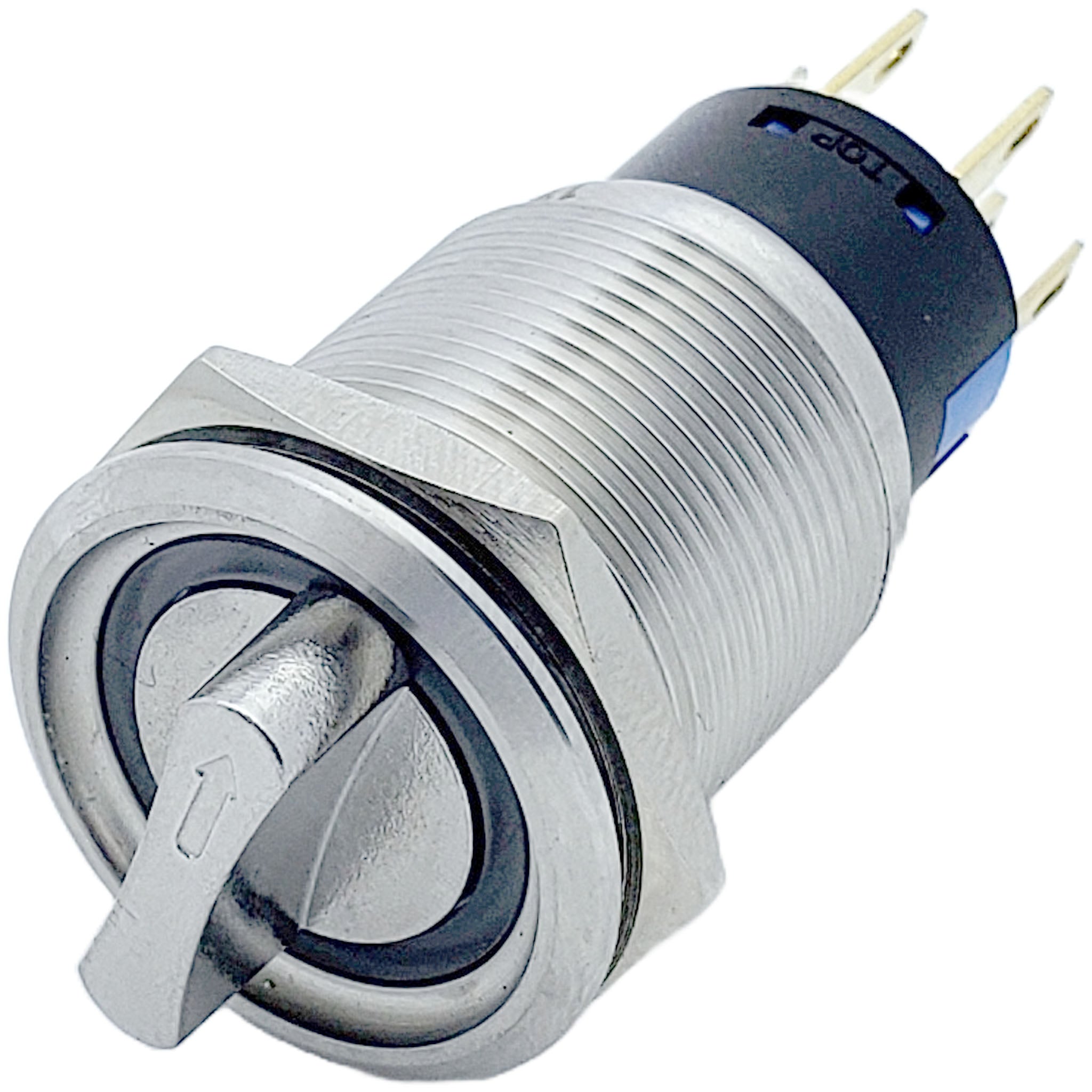

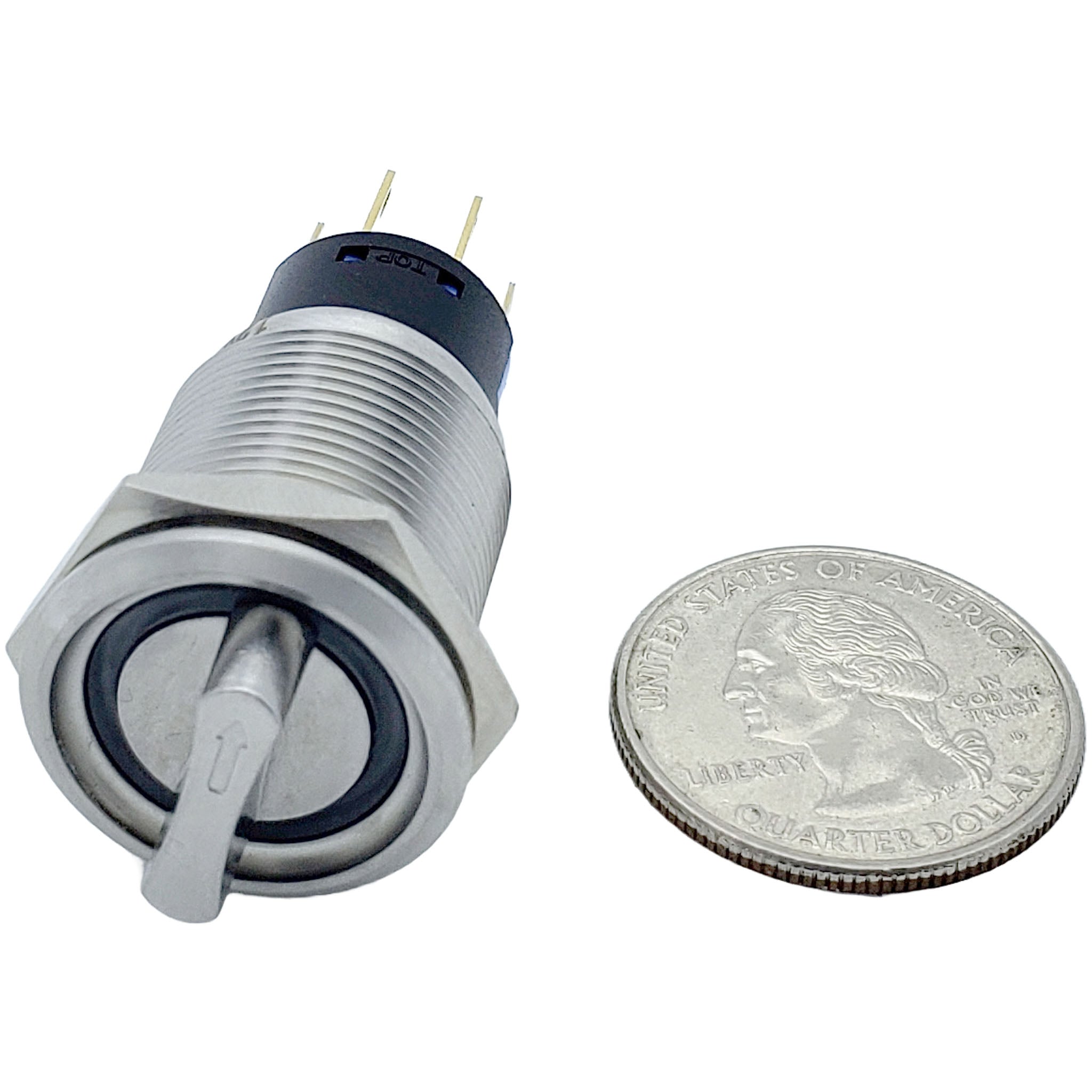

19mm Blue 5A 12V DPDT 3-Position Illuminated Rotary Selector Switch

Simple control with clear indication

This compact 19mm rotary selector switch features a blue 12V LED ring and a smooth 3-position selector action, making it ideal for car dashboards, marine panels, DIY electronics and hobby setups. Its intuitive design ensures you instantly know which mode or circuit is active.

Features that matter

• Blue LED illumination: Indicates active status at a glance (12V).
• Three positions: Offers selectable states — perfect for multi-mode setups or alternate controls.
• Compact 19mm mounting size: Fits into standard panels and retrofit applications.
• Durable metal build: Stainless-steel actuator and nickel-plated brass sleeve ensure long-term reliability.

Consumer-friendly use cases

Whether you’re upgrading your vehicle’s lighting control, adding a selection switch to a gaming rig, or building a custom accessory panel in your RV or boat—this selector switch gives you a professional look and intuitive operation. The illuminated ring ensures visibility even in low-light conditions.

Technical specifications

• Mounting Hole: 19mm diameter
• Function: DPDT 3-position rotary selector (center position included)
• Illumination: Blue LED,12 V
• Rated Current/Voltage: 5A up to 36 VDC
• Rated Power: 180 W (DC) / 1,250 W (AC)
• Protection Level: IP65 front face, IK08 impact rating
• Construction: 304 stainless actuator, nickel-plated brass sleeve, PA66 glass-filled housing
• Operating Temperature: -25 °C to +85 °C

Installation tips

• Drill a clean 19 mm cutout and secure the switch with the included mounting nut.
• Wire the LED ring to the 12 V supply; separately wire the selector terminals to your load or control circuit.
• If the circuit does not include a fuse, add an inline fuse appropriate for your load for safety.
