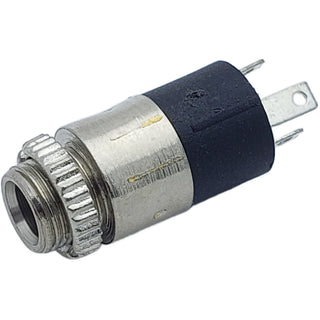

3.5mm Stereo Jack Panel Mount (High Quality)

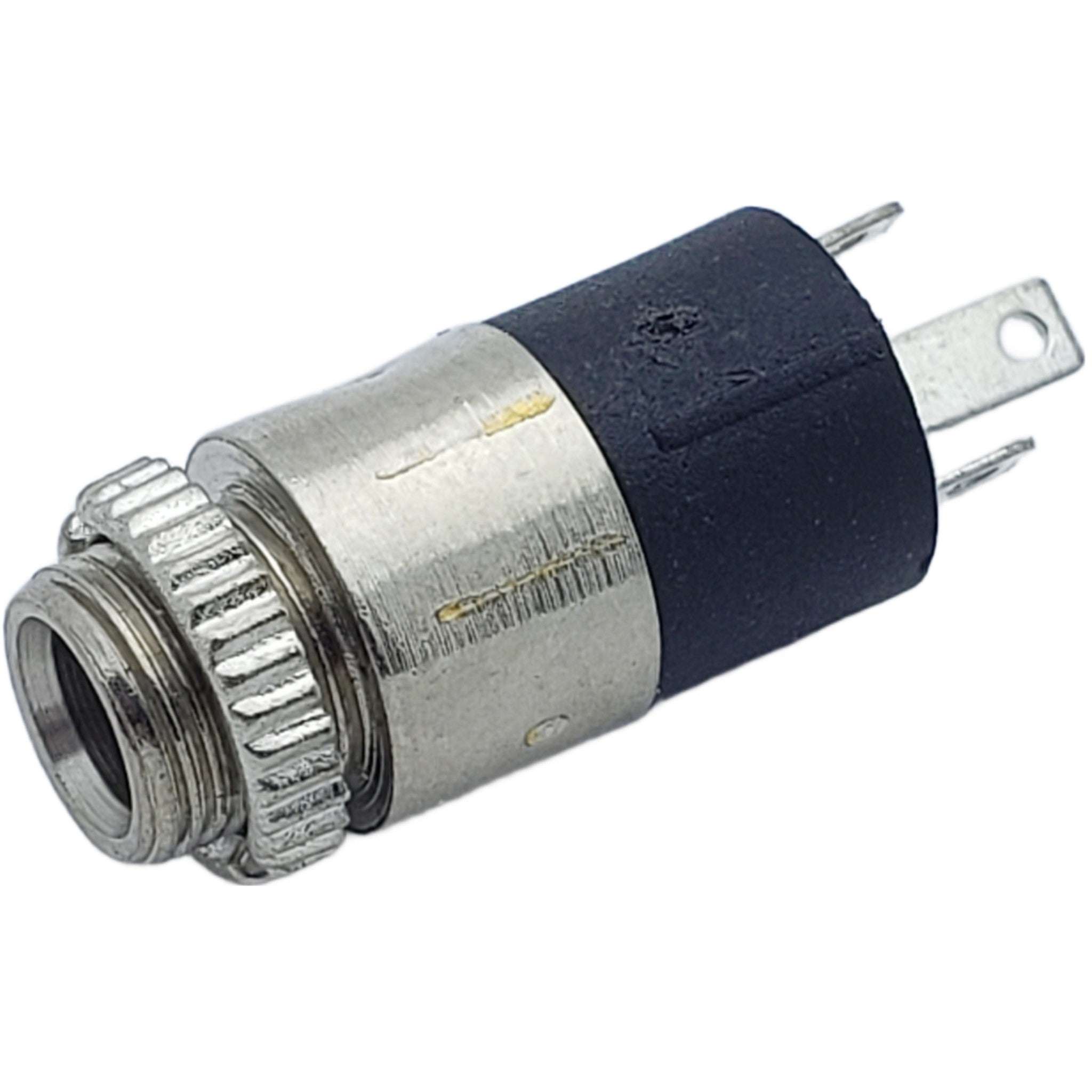

High-Quality 3.5mm Stereo Jack Panel Mount
Durable 3.5mm Stereo Jack Panel Mount for Audio Projects
Upgrade your DIY audio setup with this high-quality 3.5mm stereo jack panel mount. Perfect for custom enclosures, headphone jacks, amplifiers, or audio repairs, this connector offers reliable performance in any application. Also known as a 1/8 inch stereo jack or stereo mini jack, it fits seamlessly into new builds or replacements.
Robust and Sealed Construction

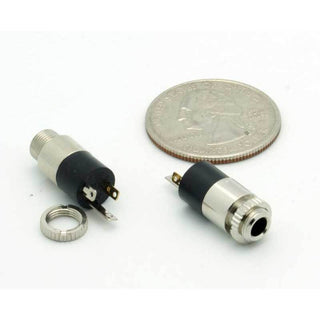

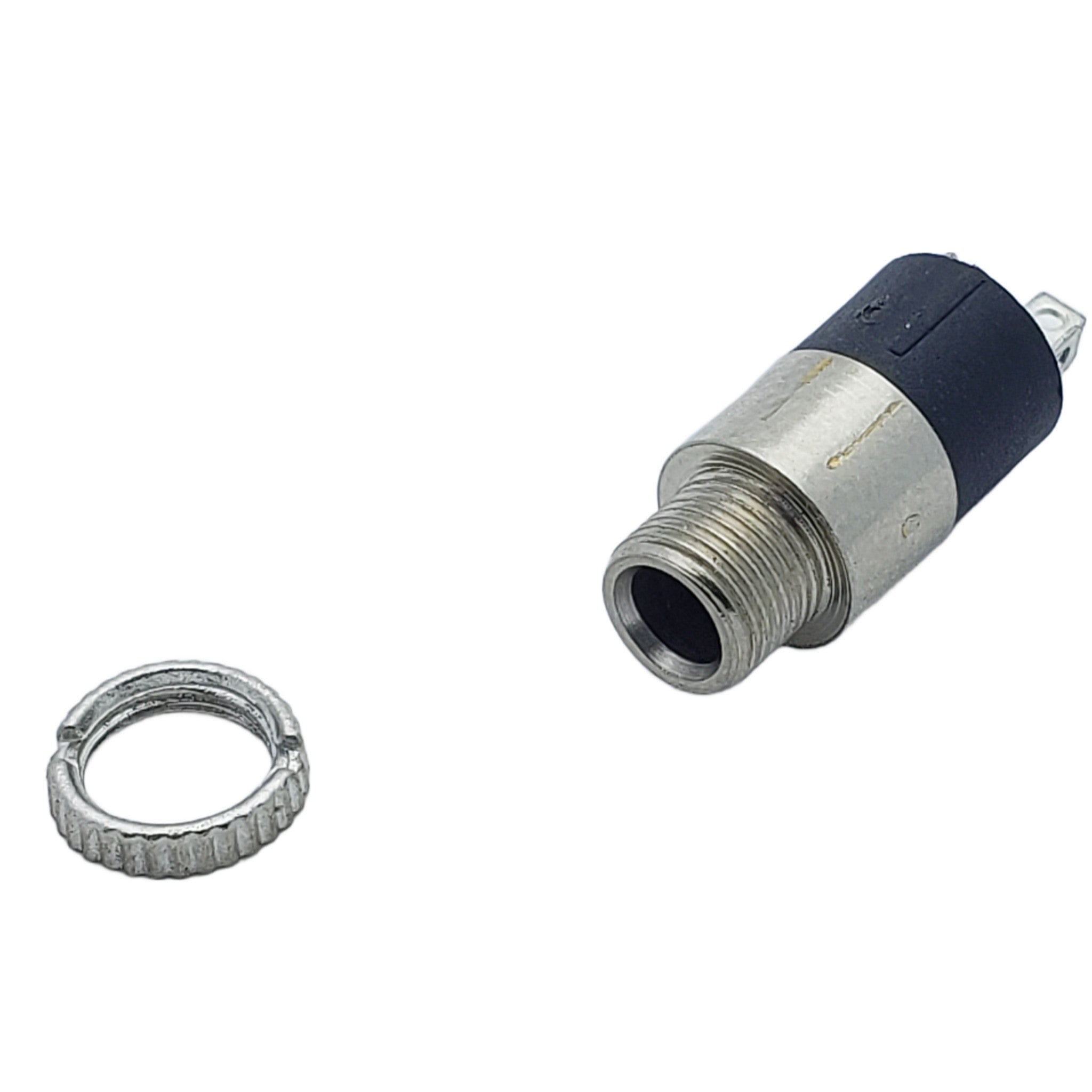

This 3.5mm panel mount stereo jack stands out with its completely sealed metal and plastic construction. Sealed design helps protect the contacts and deliver long-lasting performance. An attractive knurled mounting nut is included, ensuring a secure and professional look for your panel or chassis.
Easy Panel Mount Installation

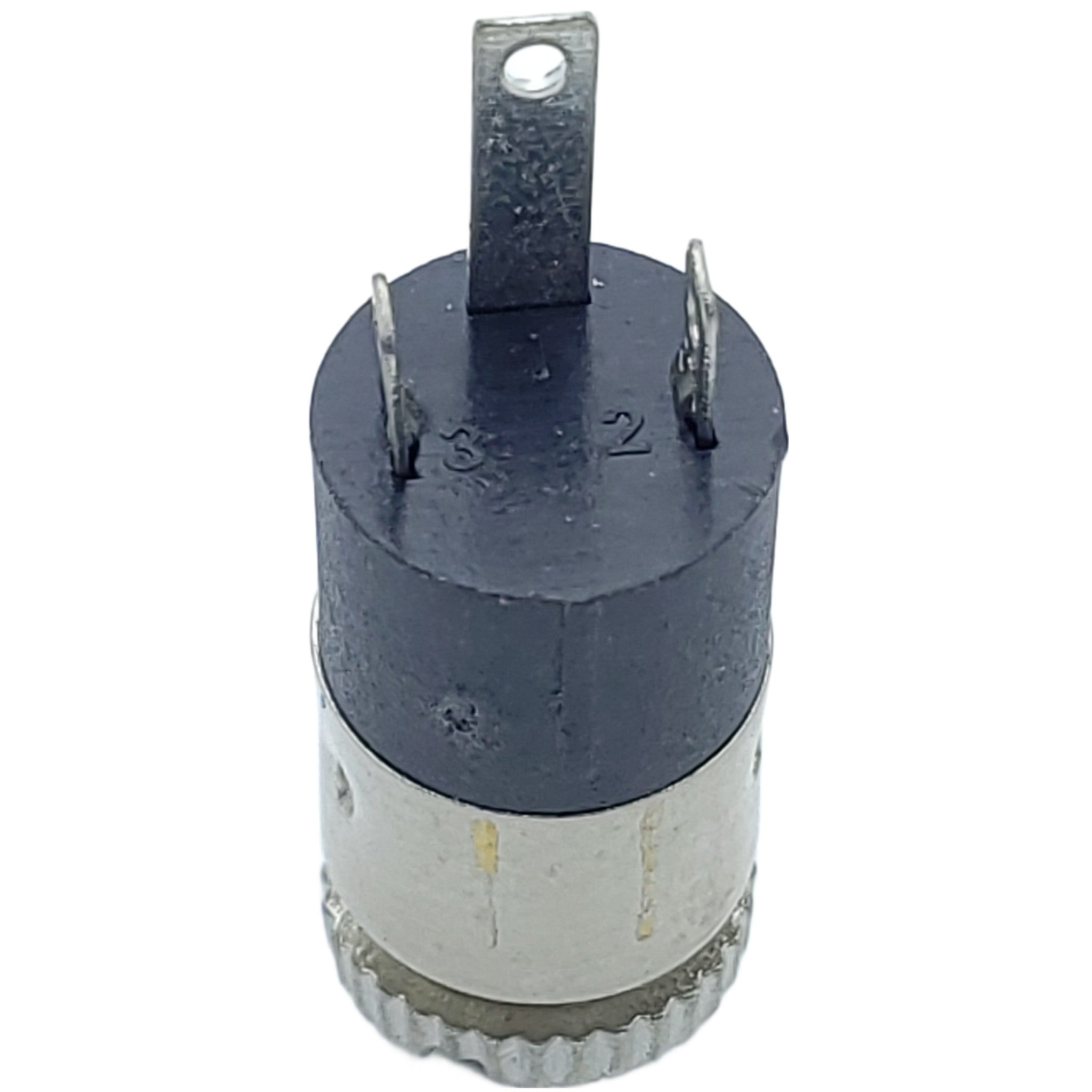

The 3.5mm stereo jack panel mount is designed for easy installation, mounting securely in a 1/4" (6.35mm) hole. It accommodates panels up to 0.075" thick, making it compatible with a wide range of chassis and DIY projects. Solder tabs provide durable, reliable wire connections—a great fit for electronics hobbyists and professionals alike.
Technical Data & Features
| Category | Connectors, Interconnects > Barrel Connectors > Audio Connectors |
|---|---|
| Manufacturer | Vetco Inc. |
| Vetco Part Number | 504KB |
| Installation Type | Screw Panel Mount - Solder Lugs |
| Connector Type | Phone Jack |
| Gender | Female |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Actual Diameter | 0.142" (3.60mm) |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Internal Switch | Does Not Contain Switch |
| Mounting Type | Panel Mount, Through Hole, Leads |
| Termination | Solder |
| Panel Hole Size | 0.244" (6.20mm) |

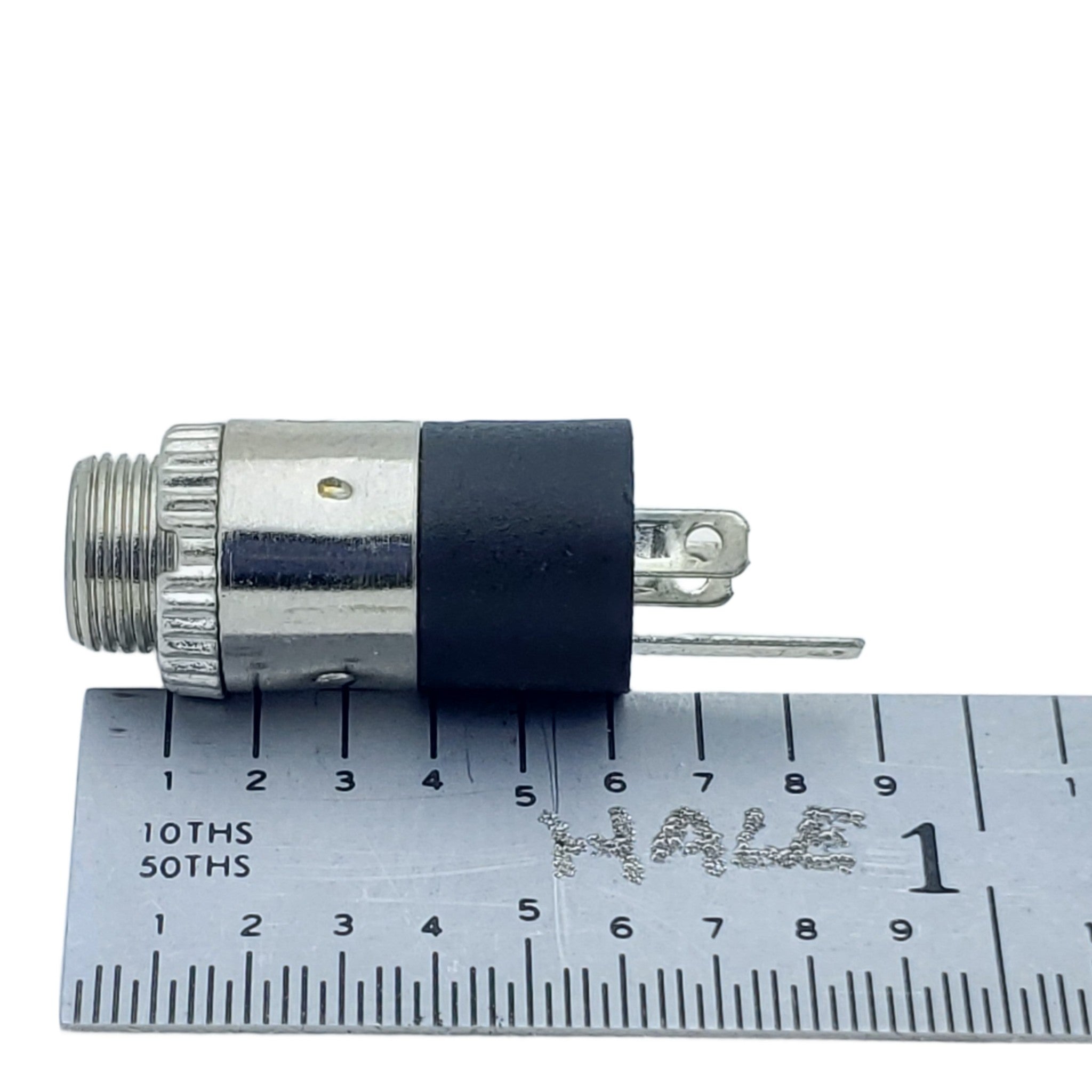

| Mating Length/Depth | 0.551" (14.00mm) |
| Voltage Rating | 30VAC/DC |
| Current Rating | 500 mA |
| Operating Temperature | -20°C to 70°C |
| Shielding | Unshielded |
| Features | Thread Lock |
| Contact Material | Brass |
| Contact Plating | Gold |
| Body Material | Brass |
| Body Color | Silver |
| Includes | 2 pcs - Consisting 1 Connector, 1 Nut |
| Packaging | Bulk |
Why Choose This 3.5mm Stereo Jack Panel Mount?
This high-quality 3.5mm stereo jack panel mount is ideal for anyone needing a dependable connector for audio panels, custom electronics, or professional repairs. The robust construction, sealed design, and easy-to-use solder tabs set it apart from ordinary mini jacks, ensuring clear sound and long-term durability.
Your Trusted Source for Audio Connectors
Vetco Electronics provides top-tier 3.5mm stereo jack panel mounts and audio connectors, giving you quality options for every project—whether you're an audio enthusiast or building custom electronics.
Previously known under part number: PH-504KB
