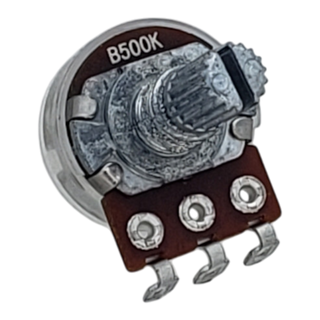

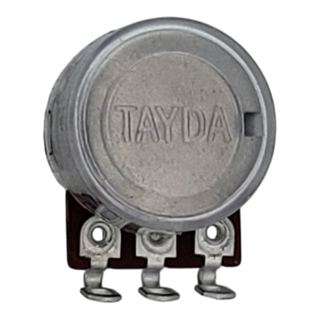

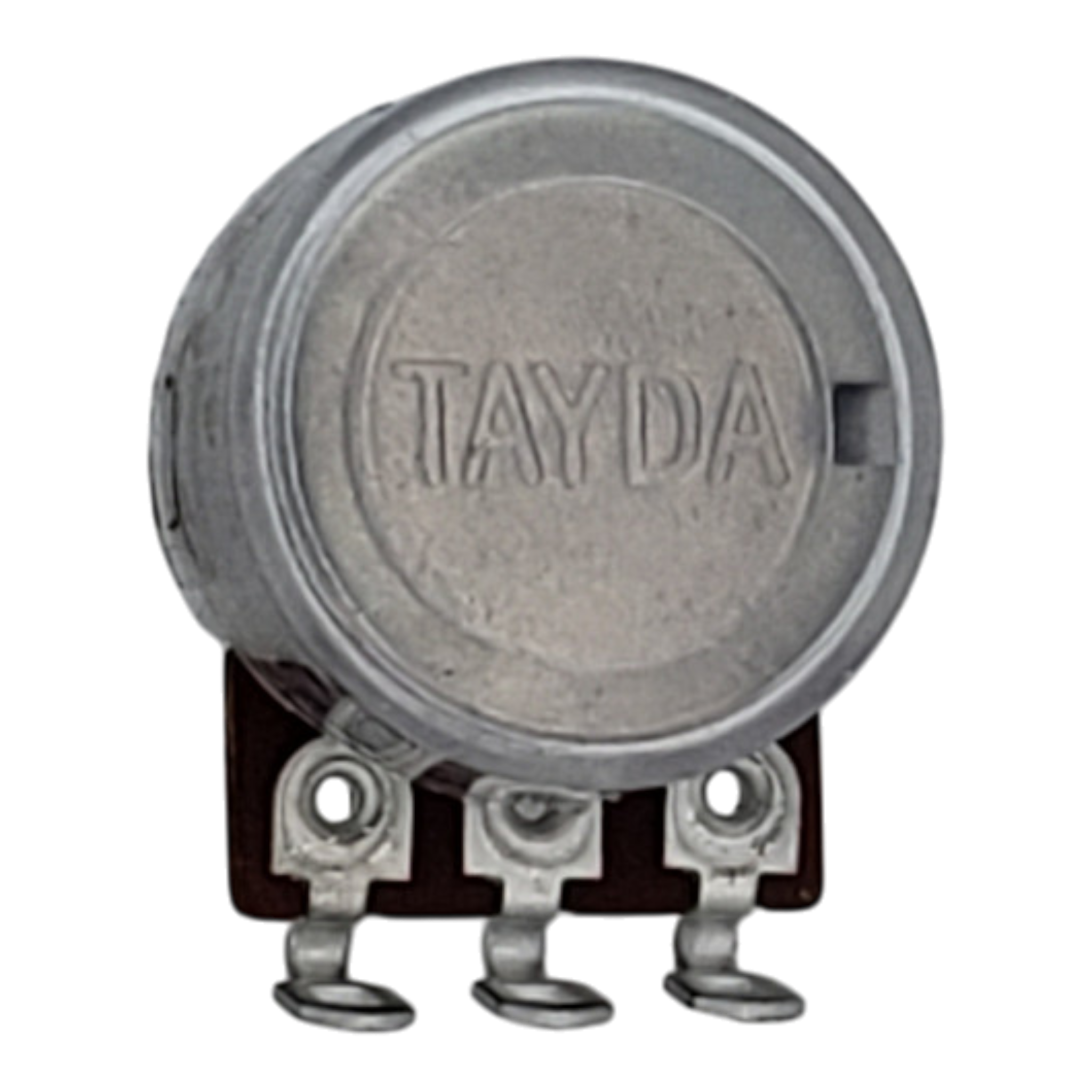

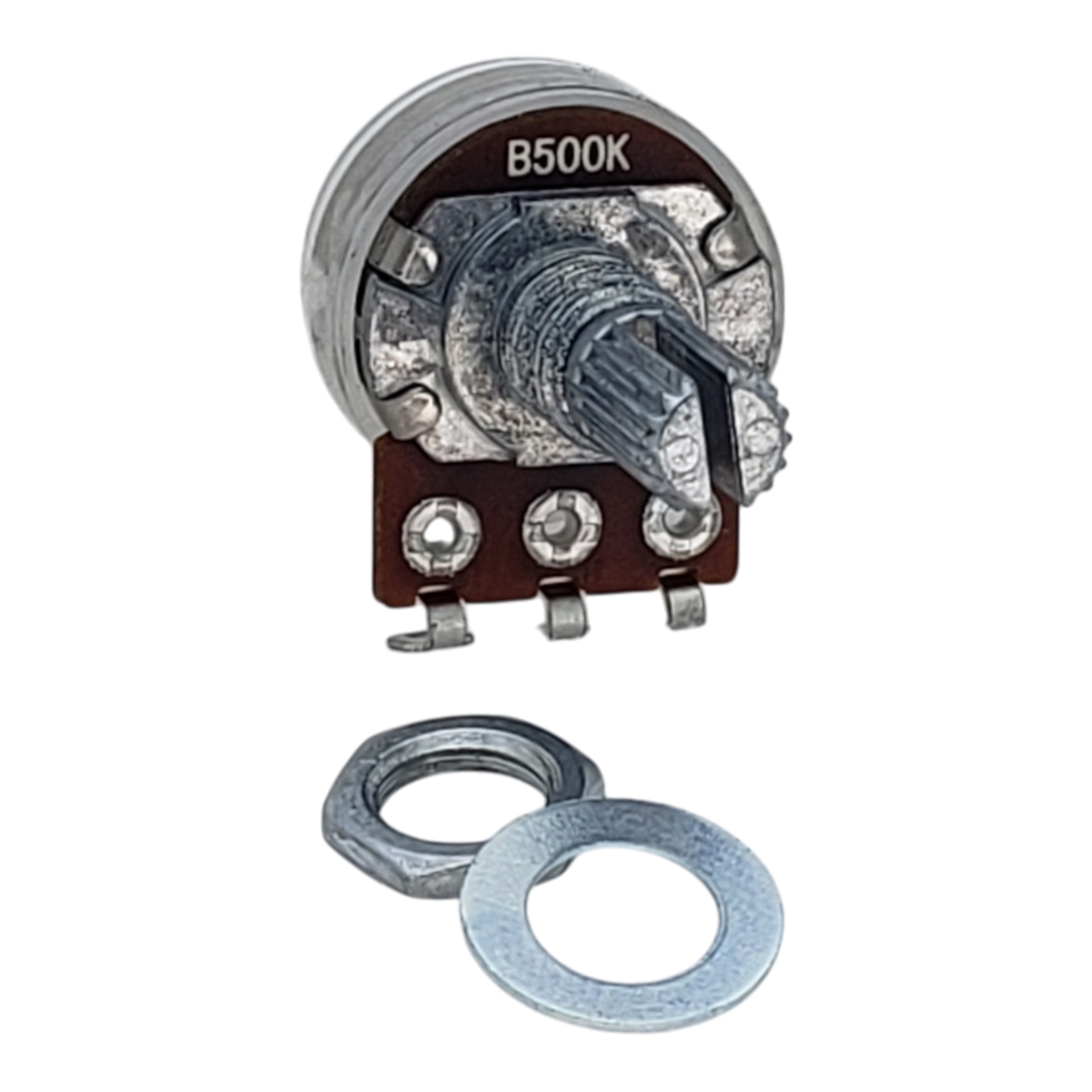

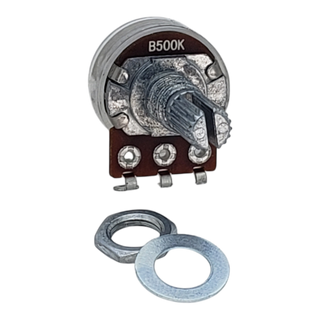

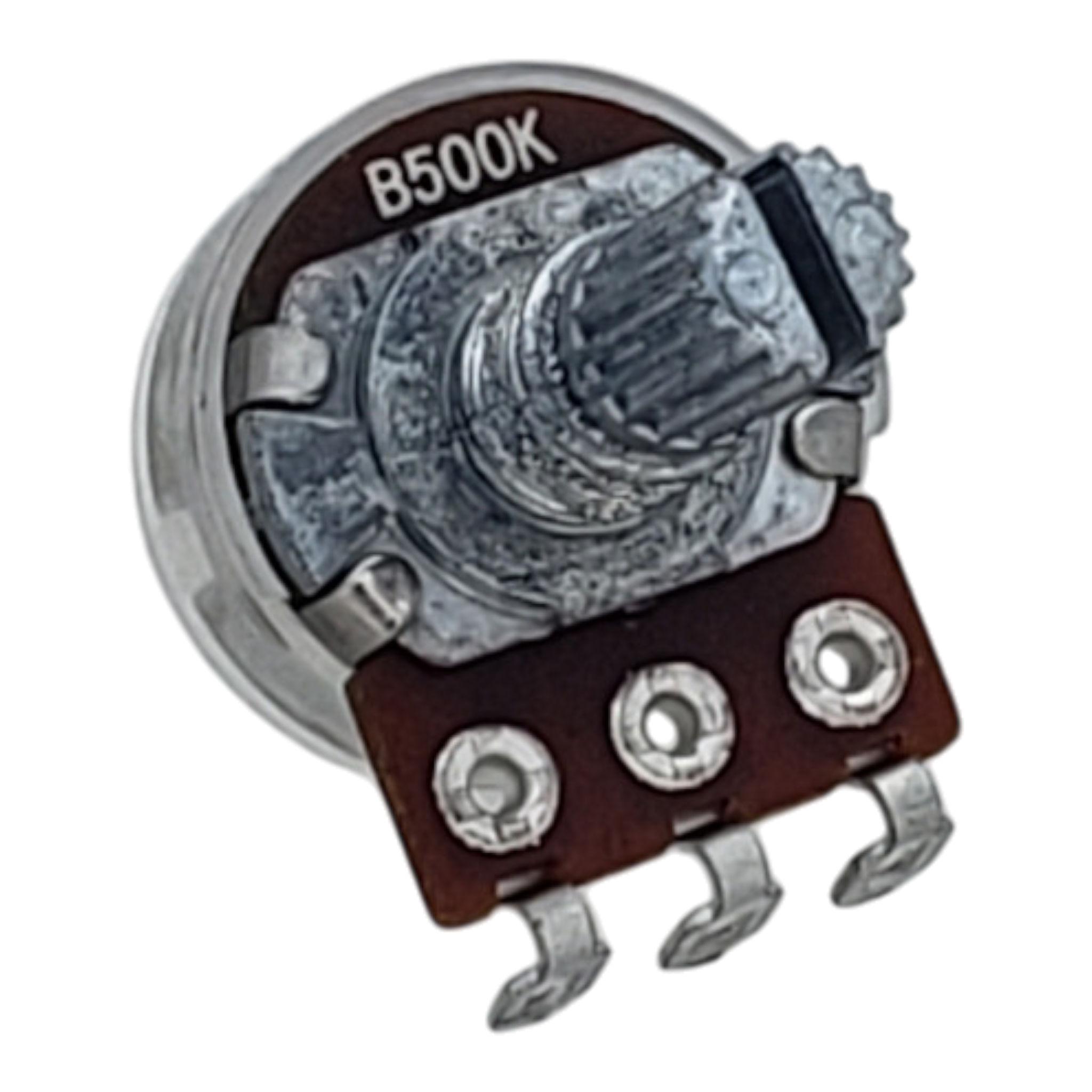

500K Linear 1/8W Potentiometer with Split Splined Shaft & Dust Seal
500K Linear 1/8W Potentiometer with Split Splined Shaft & Dust Seal
This 500K linear taper potentiometer is a compact control part for electronics projects, audio circuits, repairs, and custom control panels. The linear taper provides an even resistance change as the shaft turns, making it useful anywhere a smooth, predictable adjustment is needed.
It includes solder lug terminals for easy wiring and a 6mm split splined shaft that fits many standard push-on knobs. This version also includes a dust seal, which helps protect the control in everyday project and repair use.
500K Linear Potentiometer for DIY Controls and Repairs
A 500K potentiometer is commonly used in audio, guitar pedal, amplifier, signal control, and general electronics work. The solder lug design is especially convenient for hand-wired circuits, replacement controls, and panel-mounted projects.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Tayda Electronics |
| Manufacturer Part Number | RV16108NO-KA17D8.5-B500K-060C |
| Resistance | 500K ohm |
| Taper | Linear, Type B |
| Power Rating | 0.1W |
| Adjustment Type | Top adjustment |
| Terminals | Solder lugs |
| Dust Seal | Included |
| Shaft Type | Split splined / knurled shaft |
| Shaft Diameter | 6mm |
| Shaft Length | 17mm total, 10.5mm + 6.5mm |
| Thread Length | 6.5mm |
| Mounting Hole | 7.5mm |
| Base Diameter | 16mm |
| Rotation Angle | 300° ± 5° |
| Vetco SKU | TEA-5657 |
Why Vetco Carries This Potentiometer
Vetco carries 500K linear potentiometers because they are useful replacement and project parts for audio work, controls, and everyday electronics. This solder lug style is easy to install, easy to wire, and a good fit for customers building or repairing small electronic devices.
