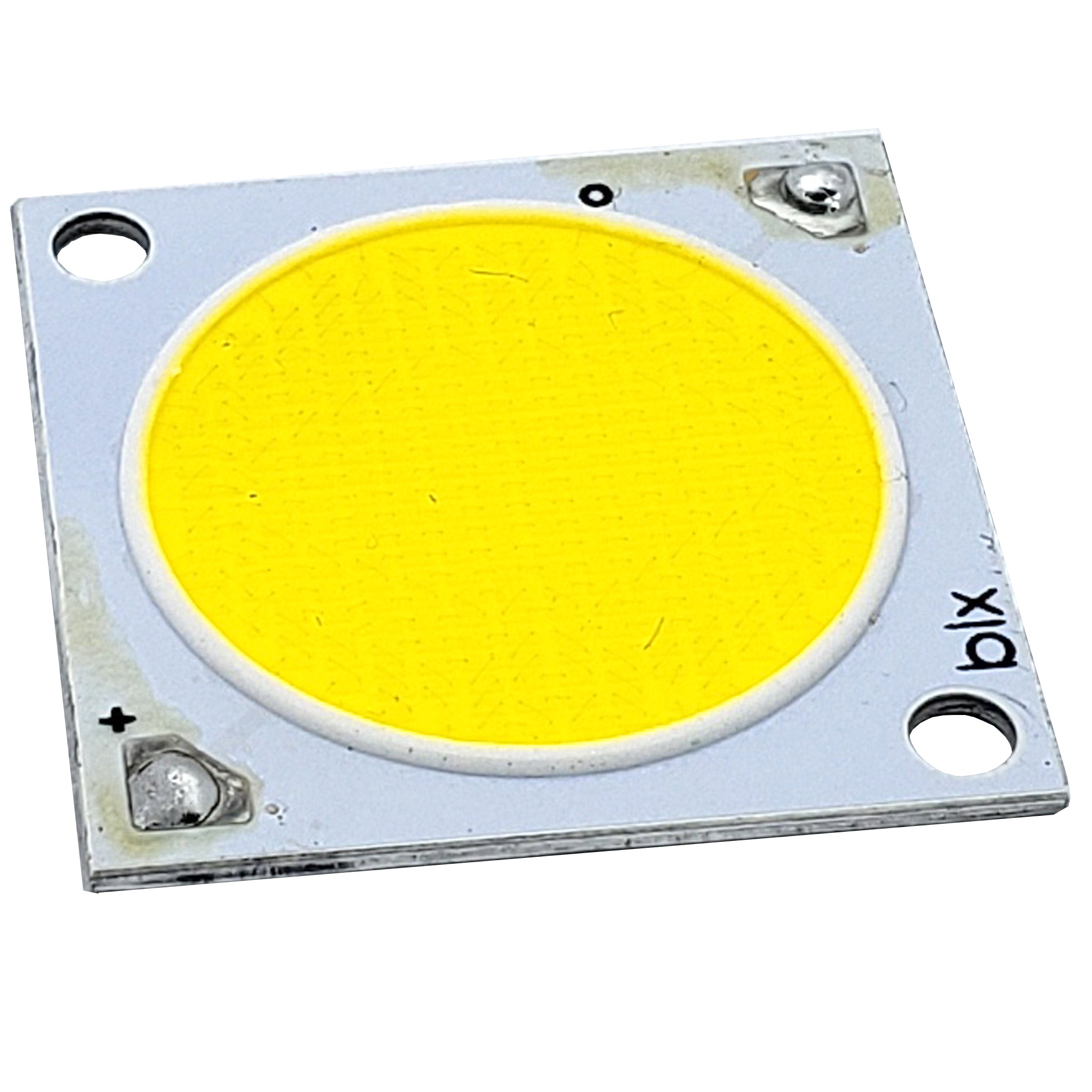

50W 6500K High Power COB LED Array

This high-output COB LED is a bright 6500K “daylight white” array that’s ideal for DIY flood lights, work lights, and streetlight retrofits. It aligns with the Bridgelux 50C-series V-class COB design, offering strong performance in a compact, easy-to-mount module.

Bright 50W COB LED for DIY Lighting

With a nominal operating power of around 50 watts, this COB LED provides excellent illumination from a single large-emitter package. It’s perfect for work lamps, garage lighting, outdoor fixtures, and projects that need reliable, high-density light output.

Daylight White 6500K Output

The 6500K daylight white color temperature produces a crisp, bright white light commonly used in outdoor fixtures, street lamps, shop lighting, and task lighting. With a CRI of 70, it delivers efficient, high-output illumination suitable for practical, everyday applications.

Electrical Characteristics

This high-power COB LED requires a constant-current LED driver. Its nominal operating point is approximately 36–38 V DC at a drive current of 1.2–1.4 A, placing it within the standard 50W COB class commonly used in commercial lighting.

It can be driven toward the upper end of this range for additional brightness, provided you maintain strong thermal management and follow safe operating limits.

Thermal Management & Heatsinking

As with all high-power COB LEDs, proper thermal control is critical. Mount the LED to a flat aluminum surface or dedicated LED heatsink using thermal grease or a thermal pad. Good airflow and a solid mounting surface will prevent overheating and extend the lifespan of the LED.

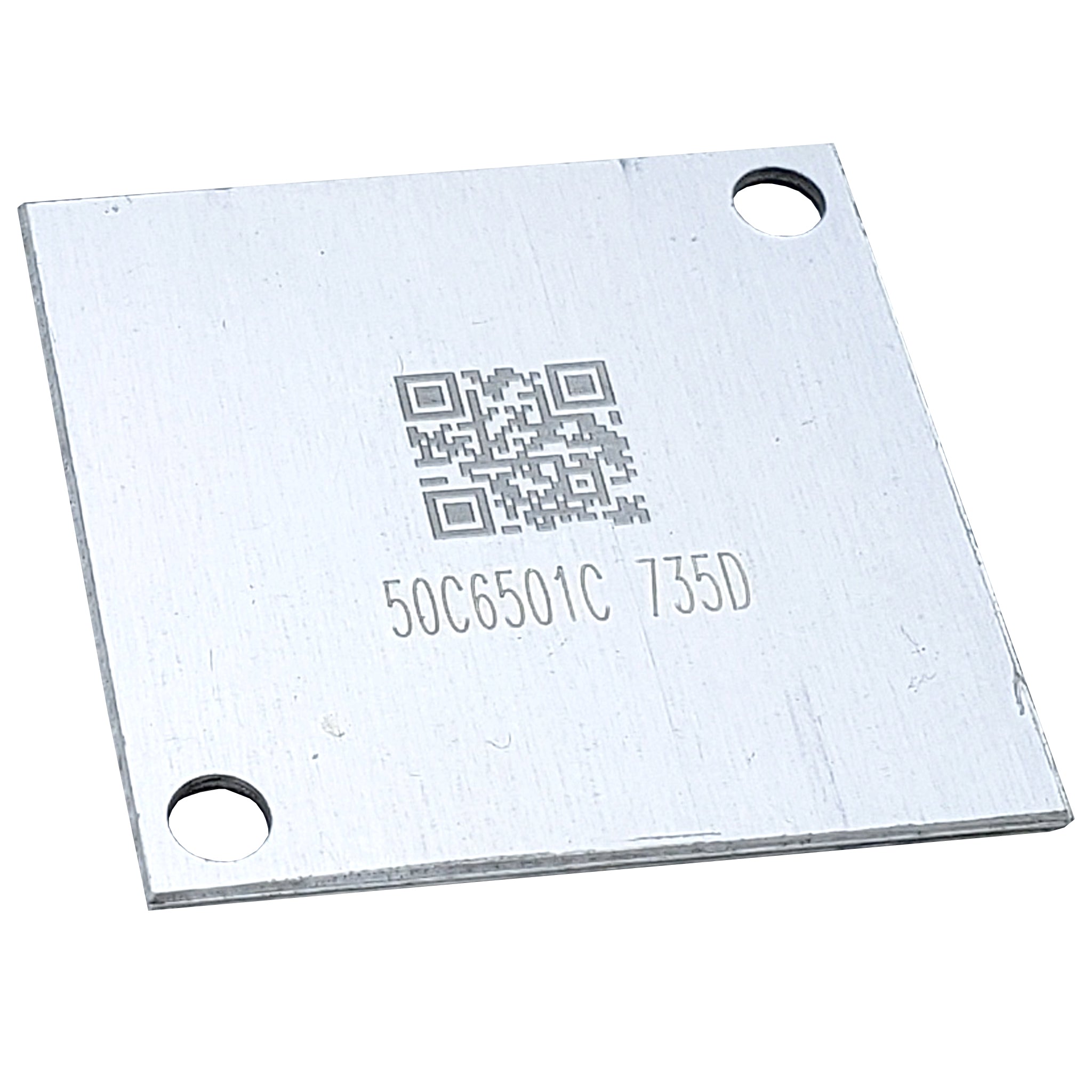

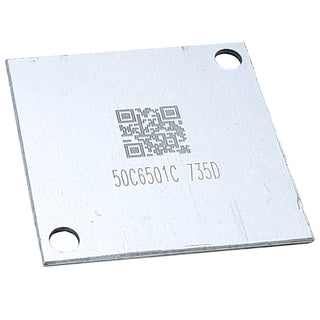

These COB LEDs are new but manually harvested from unused Evluma street-lamp boards. They may show minor signs of removal such as solder residue, flux, or small marks from being separated from the larger PCBs, but all units were never installed or put into service.

Key Specifications

• COB Type: Similar to Bridgelux 50C-series V-class COB
• Nominal Power: ~50 W
• Typical Forward Voltage (Vf): 36–38 V DC
• Nominal Drive Current: 1.2–1.4 A
• Color Temperature: 6500 K daylight white
• CRI: 70

If you’re looking for a reliable 50W COB LED, a bright 6500K daylight module, or a part compatible with common Bridgelux V-series footprints, this LED is an excellent choice for durable, efficient lighting projects.

50W 6500K high power COB LED for bright DIY lighting, matching Bridgelux 50C-class performance.
