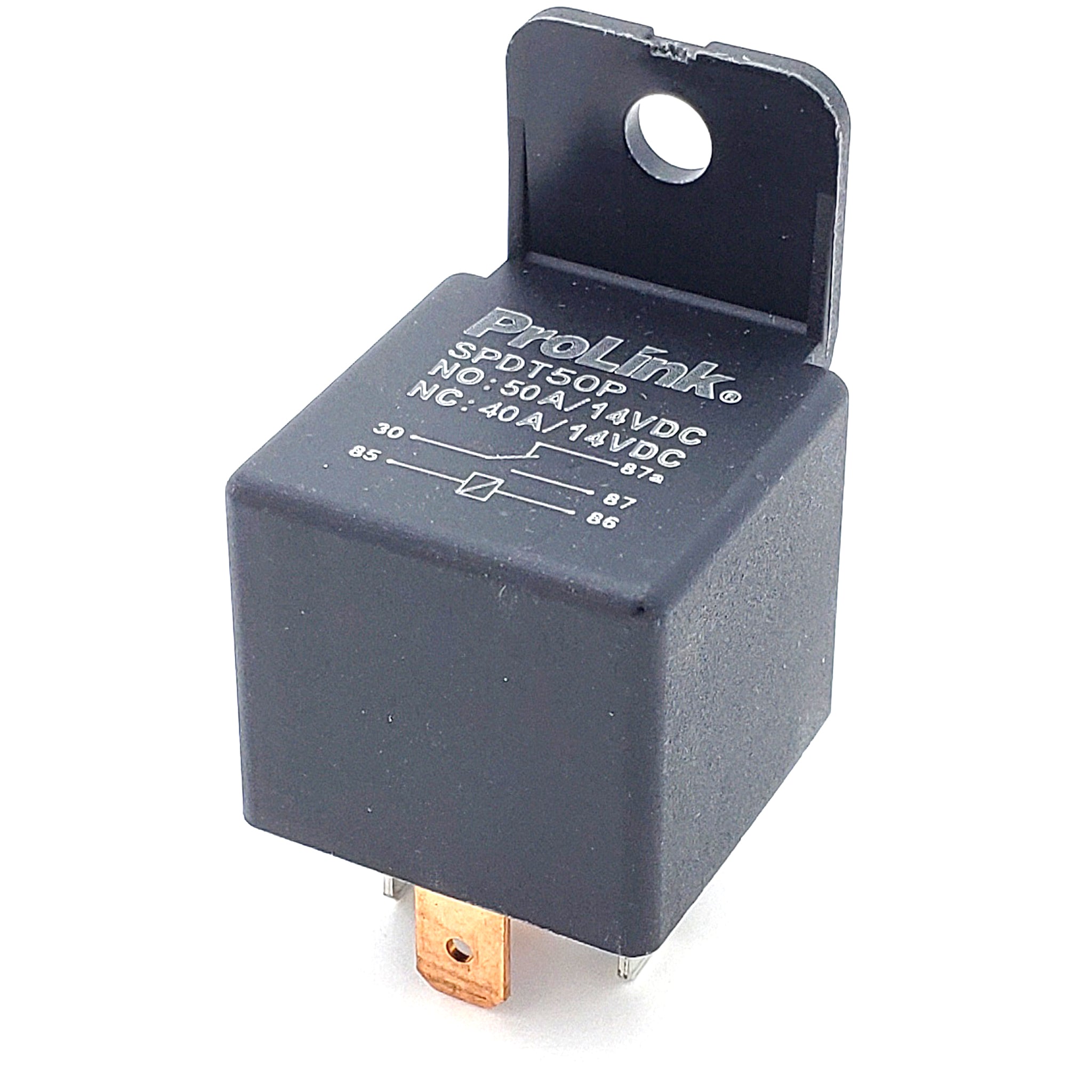

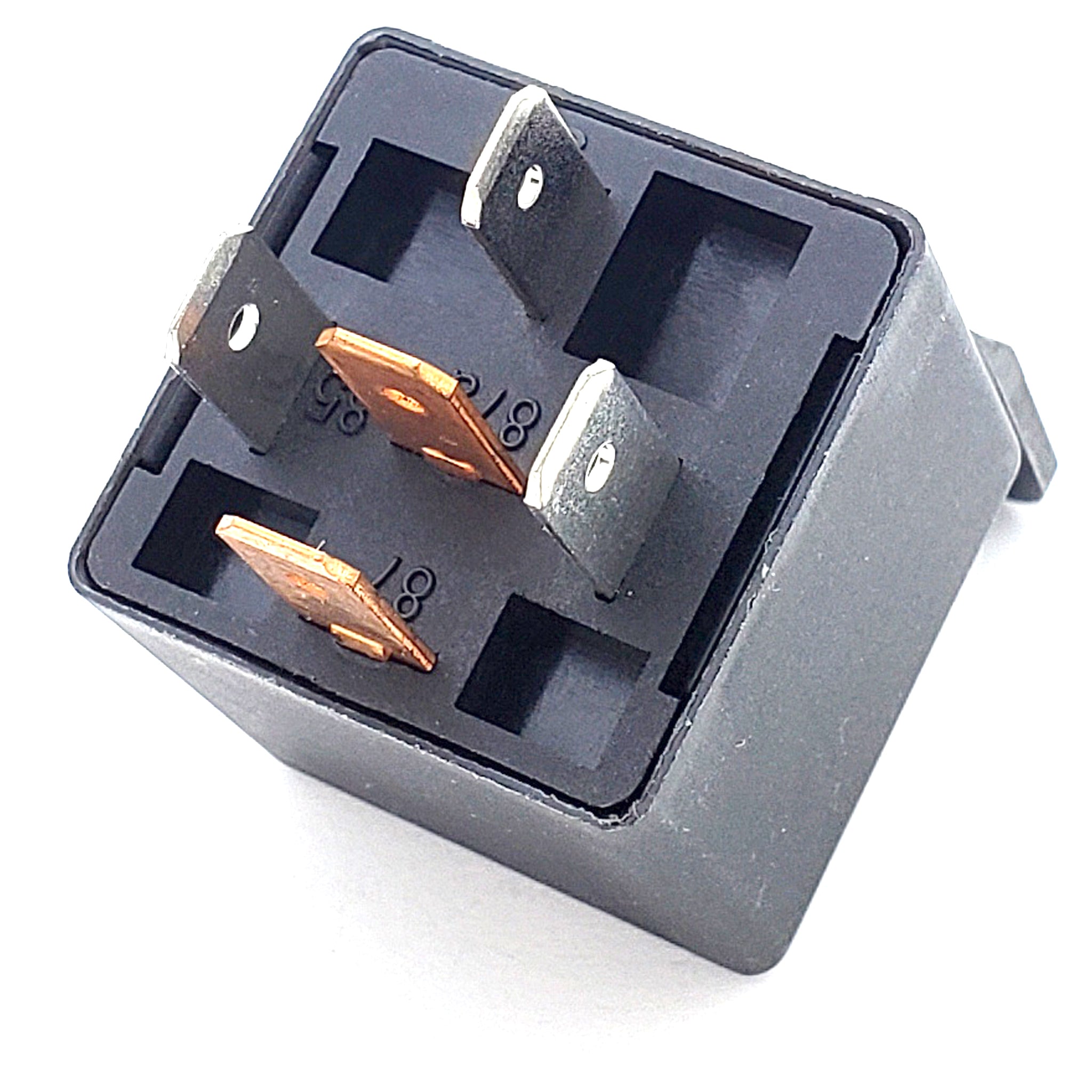

50 Amp 12V DC Relay - Automotive - Mounting Tab
50 Amp 12V DC Automotive Relay with Mounting Tab Heavy-Duty 12V DC Relay for Automotive & DIY
This 50 amp 12V DC relay is a durable, high-current solution for vehicles and 12V projects that need more power than standard 30A or 40A relays. It features a plastic, non-conductive housing and a plastic mounting tab for easy, secure installation.
Why Choose This 50A Automotive Relay
- High-current capacity: ideal upgrade from 30A/40A relays
- SPDT (NO/NC) contacts: flexible control for multiple circuits
- Universal fit: drops into standard automotive relay sockets
- Easy mount: integrated tab for quick panel or bracket mounting
Socket Compatibility
Fits standard automotive relay sockets, including these Vetco options: CES-BRS-006 and CES-BRS-008.
Suggested Uses
- Auxiliary lighting and light bars
- Pumps, fans, and high-draw accessories
- Upgrading lower-amperage relay installations
- New 12V automotive or powersports projects
Technical Specifications
| Coil Voltage | 12V DC |
| Contact Configuration | SPDT (Normally Open & Normally Closed) |
| Normally Open Rating | 50A at up to 14V DC |
| Normally Closed Rating | 40A at up to 14V DC |
| Housing | Plastic, insulated, non-conductive |
| Mounting | Plastic mounting tab (panel/bracket friendly) |
| Socket Fit | Standard automotive relay sockets (e.g., CES-BRS-006, CES-BRS-008) |
Notes
Use appropriately sized wiring and fusing for 50A loads. This relay is a great replacement for existing units, an upgrade from lower-amp relays, or a dependable choice for new builds.
