5 Pin Push Button Socket Pigtail

Easy Wiring for Metal Push Button Switches

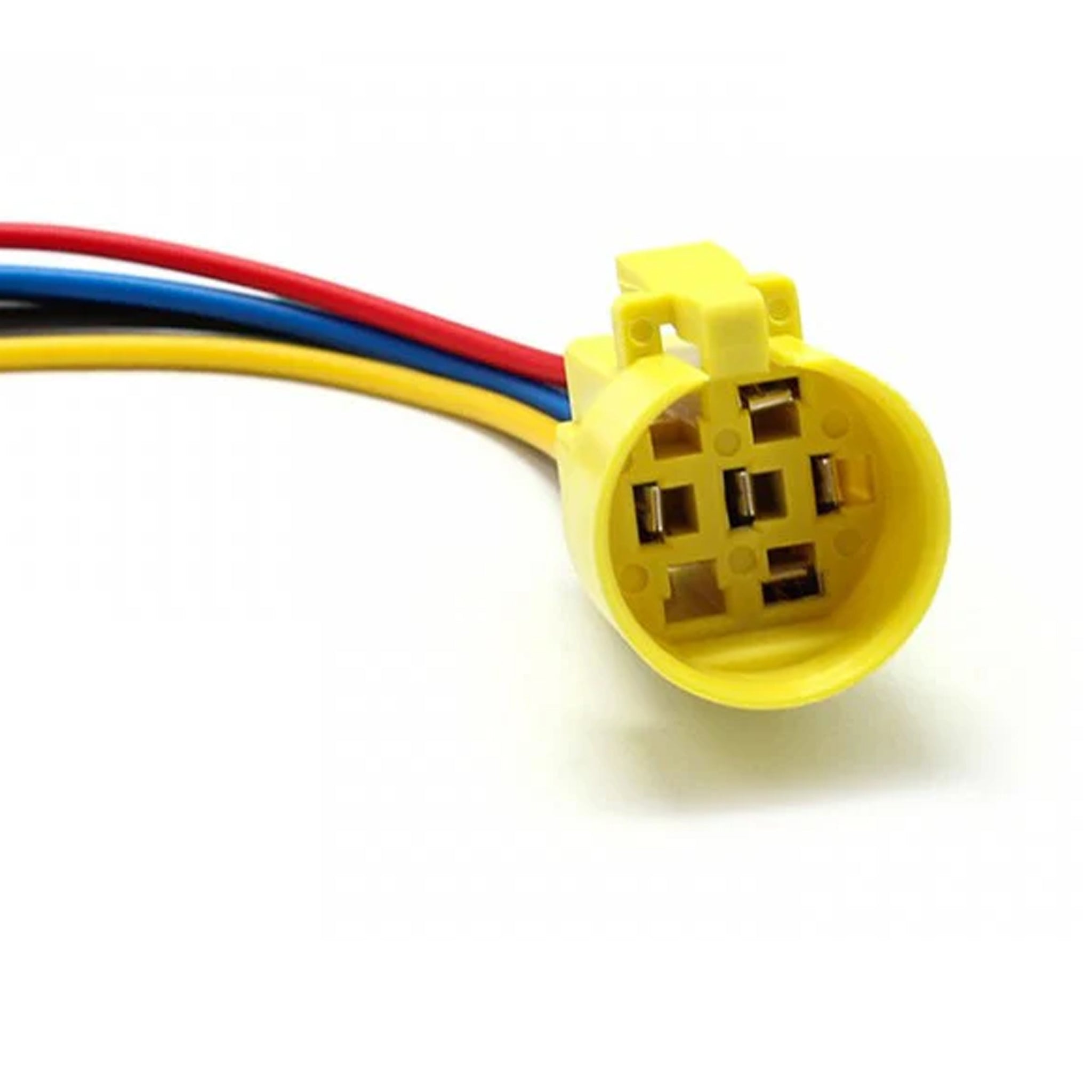

This 5 Pin Push Button Socket Pigtail makes wiring your metal push button switch simple and reliable. Designed for quick installation, it provides a clean connection point for illuminated push buttons, reducing wiring mistakes and speeding up your project.

Pre-Wired Leads for Fast Setup

The pigtail features 300V-rated 20AWG wire and includes a standard cord length of approximately 20 cm. Each lead is color-coded to help you identify switch and LED connections without needing a wiring diagram.

Clear Wire Color Functions

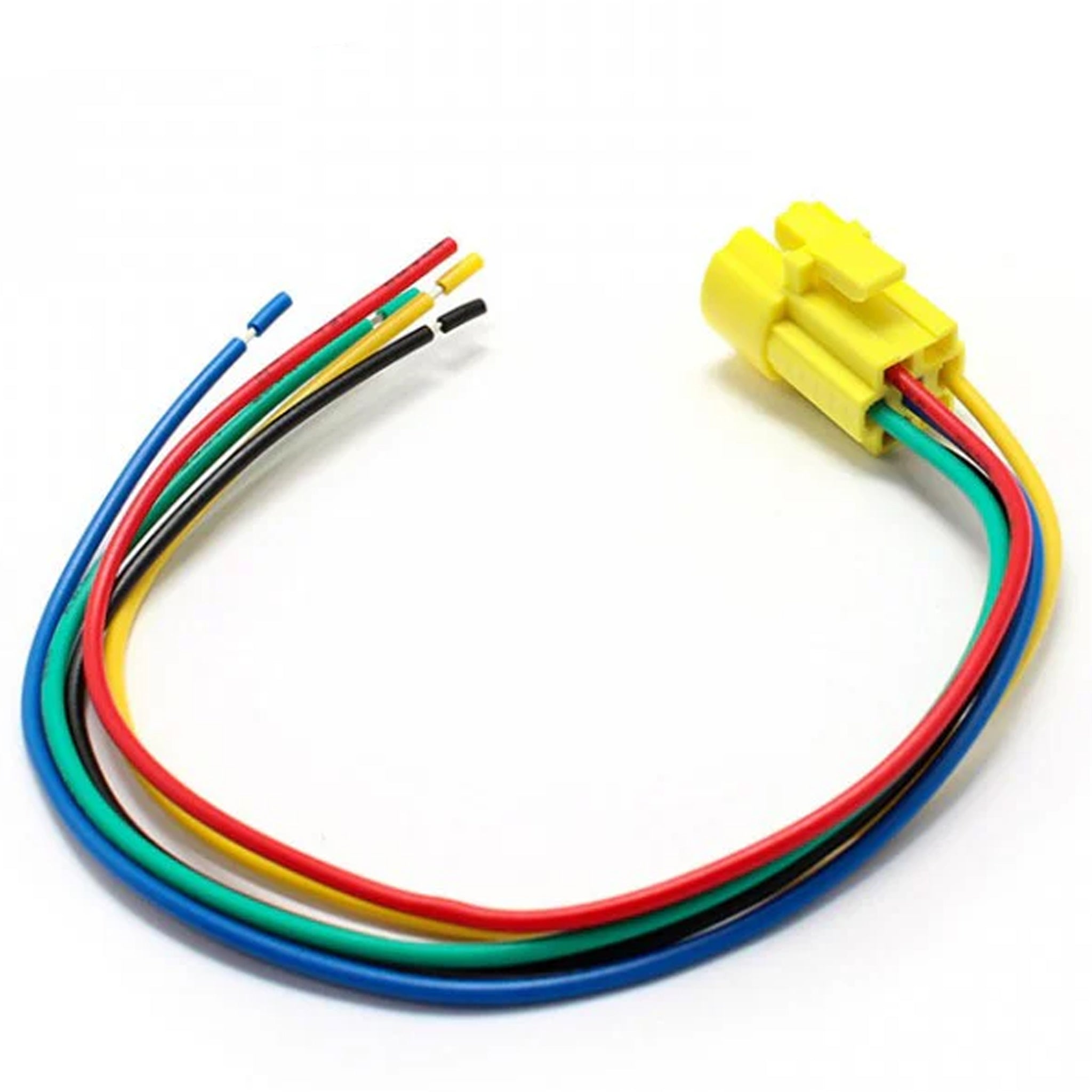

This 5 pin switch pigtail includes five pre-stripped wires:

• Red: Positive pin for the LED lamp
• Black: Negative pin for the LED lamp
• Green: Common switch pin (C)
• Blue: Normally Open (NO) switch pin
• Yellow: Normally Closed (NC) switch pin

These standardized assignments eliminate guesswork when integrating the connector into a circuit, making it ideal for beginners and experienced builders alike.

Compatible with Waterproof Metal Push Buttons

This socket pigtail is designed to fit a range of waterproof metal push button switches commonly used in automotive, hobby, and electronic control panels. It is compatible with the following Vetco part numbers:

• VUPN2825
• VUPN2824
• VUPN2823
• VUPN2801
• VUPN2800
• VUPN2799

It may also fit additional models using similar 5-pin housings. This is a 7 pin socket, but only 5 of the pins are populated. We do not sell the pins for this socket.

Reliable Connector for DIY and Custom Builds

Whether you're adding a power button to a PC case, building control panels, modifying automotive switches, or creating custom electronics, this push button socket pigtail delivers a secure and professional-grade connection to your switch hardware.
