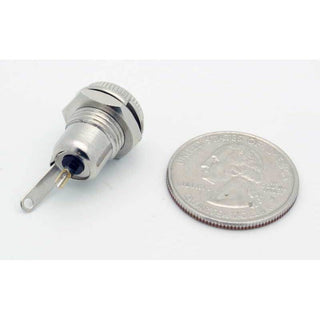

2.1mm x 5.5mm DC Power Panel Mount Jack

Panel Mount DC Barrel Power Jack. These jacks may also be called DC Coaxial Jacks.

• Jack Size: 2.1mm ("Type M")
• Center Pin: 2.1mm
• Inner Diameter: 5.5mm
• Solder Terminals for 18-24awg wire
• Mounting Hole: 0.437"

This jack mates with the following plug:
2.1mm DC Plug PH-210B

Overall Dimensions: 0.86" Tall x 0.49" Wide
QTY: 1 Jack. Includes mounting nut.



Vetco stocks a wide variety of DC Barrel Plugs, Jacks, Adapters and Pig Tail Cables.
