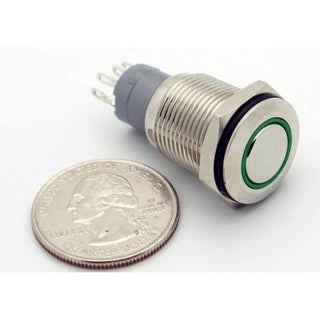

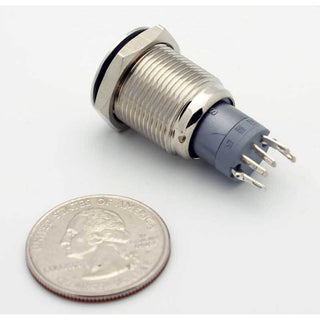

SPDT Sealed Illuminated Push Button Switch ON-OFF (Green)
SPDT Sealed Illuminated Push Button Switch – Green, Waterproof, IP67Green Illuminated Push Button Switch for Everyday Projects
Upgrade your electronics with this easy-to-use SPDT sealed illuminated push button switch. Designed for everyday consumers and DIYers, this flush mounted switch features a bright green ring that lights up at 12VDC. The push-on, push-off (locking) mechanism means you can easily control your devices with a simple press.
Waterproof and Tamper-Proof Design – Built to Last
Engineered with an IP67 waterproof rating, this panel mount push button switch can handle wet and dusty environments, making it perfect for automotive, marine, and outdoor projects. The tamper-proof nickel-plated brass body offers reliable durability, while the low-profile design looks great in any panel or project box.
Technical Specifications
- Switch Type: Single Pole Double Throw (SPDT)
- Contact Action: Push-On / Push-Off (Latching/Locking)
- Illumination: Green ring, 12VDC
- Contact Rating: 3A @ 250VAC, 2A @ 24VDC
- Electrical Life: 50,000 cycles
- Contact Resistance: 50mΩ maximum (initial)
- Insulation Resistance: 1,000MΩ min @ 500VDC
- Dielectric Strength: 2,000V RMS, 50~60Hz
- Operating Temperature: -20°C to +70°C
- Mounting Hole: 5/8" (16mm)
- Max Panel Thickness: 0.50"
- Overall Length: 1.23"
- IP Class: IP67 Waterproof
- Operating Force: 5.5N max
- Protection Torque: 5 ~ 14Nm (max applied to nut)
Quality Materials for Reliable Operation
- Bushing and Button: Nickel-plated brass
- Contacts: Silver alloy
- Nut: Nickel-plated brass
- Base: PBT (Polybutylene Terephthalate)
What’s Included
Each package includes one SPDT sealed illuminated push button switch, a mounting nut, and an O-ring for a secure, waterproof install.
Easy Installation for Any Application
Perfect for use as a waterproof push button switch in automotive dashboards, marine consoles, DIY electronic panels, or any project needing an illuminated, tamper-proof, panel mount switch. Enjoy easy setup, dependable operation, and modern style—all in one compact package.
