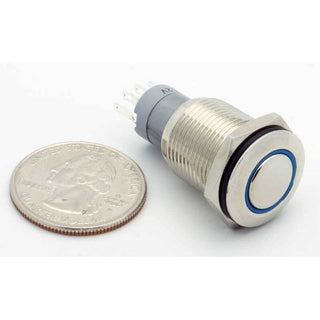

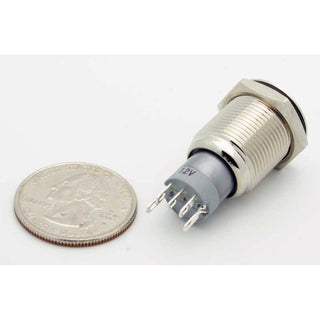

SPDT Sealed Illuminated Push Button Switch – Momentary, Blue LED, Waterproof

Easy-to-Use, Waterproof, Blue Illuminated Push Button Switch

Upgrade your projects with this SPDT sealed illuminated push button switch, featuring brilliant blue LED illumination and reliable momentary action. Perfect for everyday users and hobbyists, this waterproof push button switch adds style and durability to any panel or DIY electronics application. The tamper-proof nickel-plated brass construction ensures long-lasting, professional-grade performance.

Key Features of the Blue LED Momentary Push Button Switch

• Panel-mount design with modern blue illuminated ring
• SPDT (Single Pole Double Throw) functionality: Choose between momentary ON (Normally Open) or momentary OFF (Normally Closed) action
• IP67 waterproof rating – fully sealed for reliable operation in outdoor and harsh environments
• Flush-mounted tamper-proof design for clean, secure installation
• Illuminates at 12VDC for easy panel visibility and status indication
• Includes mounting nut and O-ring for fast, hassle-free setup

Technical Specifications

• Electrical Rating: 3A @ 250VAC, 2A @ 24VDC
• Contact Resistance: ≤ 50mΩ (initial)
• Insulation Resistance: ≥ 1,000MΩ at 500VDC
• Dielectric Strength: 2,000V RMS, 50~60Hz
• Electrical Life: 50,000 cycles
• Operating Temperature: -20°C to +70°C
• Switching Circuit: Momentary ON or Momentary OFF (SPDT, NO or NC)
• IP Class: IP67 (sealed and waterproof)
• Torque (nut): 5 ~ 14Nm max
• Operating Force: 5.5N max
• Mounting Hole: 5/8" (16mm)
• Max Panel Thickness: 0.50"
• Overall Length: 1.23"
• Bushing/Button Material: Brass, nickel plated
• Contact Material: Silver alloy
• Base: Durable PBT plastic

Applications for the SPDT Blue Illuminated Push Button

This sealed illuminated push button switch is ideal for:

• DIY electronics projects and control panels
• Automotive dashboards and marine control systems
• Home automation and smart devices
• Custom arcade cabinets and gaming builds
• Industrial equipment where waterproof switches are essential

What’s Included

• 1× SPDT blue illuminated push button switch (momentary)
• Mounting nut
• O-ring for waterproof installation

Enjoy peace of mind with high durability, simple installation, and stylish blue illumination in your next project. Order your blue illuminated SPDT momentary push button switch today for quality you can trust!
