SPDT Sealed Illuminated Push Button Switch Momentary (Green)
SPDT Sealed Illuminated Push Button Switch – Momentary, Green, IP67 WaterproofEasy-to-Use, Waterproof Push Button Switch

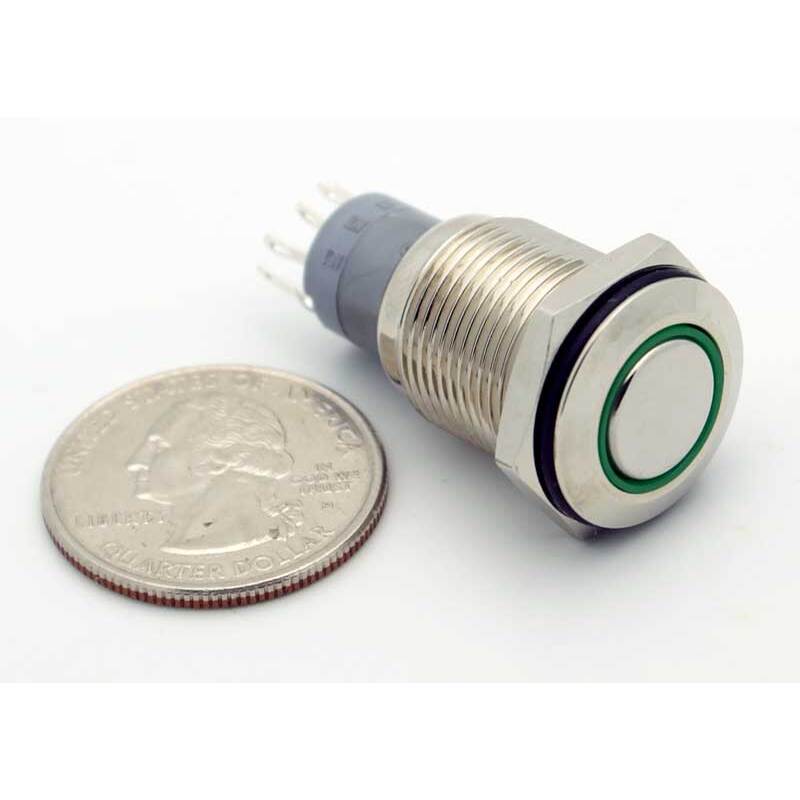

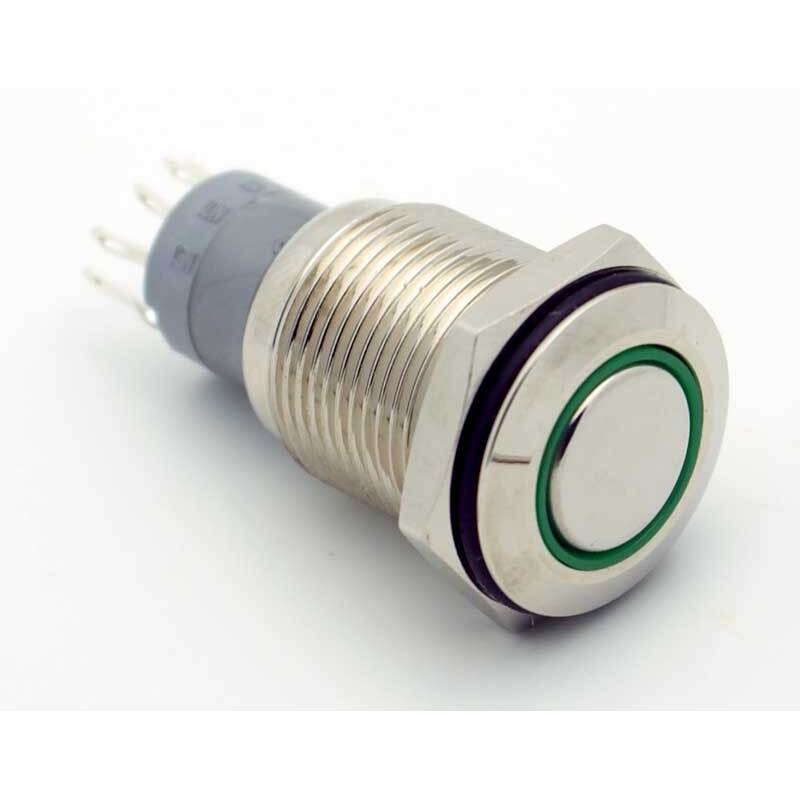

Upgrade your next project with this SPDT sealed illuminated push button switch—a perfect combination of style, durability, and simple operation for everyday users. Featuring a flush-mounted design and a vivid green illuminated ring that lights up with 12VDC, this switch is perfect for panel installations, DIY electronics, and automotive applications.
Reliable SPDT Momentary Action with Versatile Contacts
This momentary push button switch provides both Normally Open (NO) and Normally Closed (NC) contacts, giving you flexible control options. Just press the button for a quick ON or OFF action—ideal for control panels, dashboards, and any situation needing reliable momentary input.
IP67 Waterproof & Tamper-Proof Design
Constructed with a tough, nickel-plated brass body, this IP67 rated push button switch is completely sealed for reliable performance even in wet or dusty environments. The tamper-proof design keeps your setup secure and looking great whether indoors or outdoors.
Technical Specifications
- Switch Type: SPDT (Single Pole, Double Throw) – Momentary ON or OFF
- Illumination: Green ring, 12VDC
- Contact Rating: 3A @ 250VAC, 2A @ 24VDC
- Electrical Life: 50,000 cycles
- Contact Resistance: 50m-Ohms max (initial)
- Insulation Resistance: 1,000M-Ohms min @ 500VDC
- Dielectric Strength: 2,000V RMS (50~60Hz)
- Operating Temperature: -20°C ~ +70°C
- IP Rating: IP67 Waterproof
- Mounting Hole: 5/8" (16mm)
- Max Panel Thickness: 0.50"
- Overall Length: 1.23"
- Protection Torque: 5 ~ 14Nm (nut)
- Operating Force: 5.5N max
- Busing & Button Material: Brass, Nickel Plated
- Contact Material: Silver Alloy
- Base: PBT (durable high-performance plastic)
What’s Included
Each package includes one SPDT momentary green illuminated push button switch, mounting nut, and O-ring for easy installation and long-lasting waterproof protection.
Perfect for Everyday Projects
Whether you’re upgrading your car’s dashboard, building a custom control panel, or starting your next hobby project, this sealed green illuminated push button switch is an easy, stylish, and reliable solution. Enjoy simple wiring, clear feedback, and a professional look on any budget.
