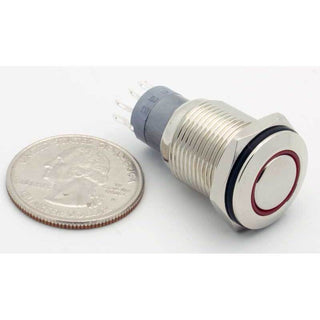

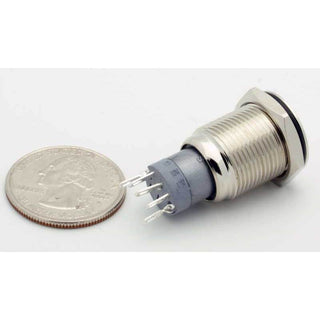

SPDT Sealed Illuminated Push Button Switch Momentary (Red)
SPDT Sealed Illuminated Push Button Switch – Momentary, Red, IP67 WaterproofReliable, Waterproof Red Illuminated Push Button Switch
Upgrade your project or panel with this SPDT sealed illuminated push button switch featuring a vibrant red LED ring for easy visibility. Designed with both normally open (NO) and normally closed (NC) contacts, this momentary red push button switch offers versatile control for your electronics.
Key Features of the Momentary Illuminated Switch
- Waterproof and Dustproof: Rated IP67 for reliable outdoor or harsh environment use.
- Momentary Action: (ON) or (OFF) function for temporary activation – returns to default position when released.
- Sealed and Tamper-Proof: Nickel-plated brass body with flush mounting for a secure, tamper-resistant finish.
- Red Illuminated Ring: LED illuminates when supplied with 12VDC power; perfect for status indication or stylistic effect.
- Easy Panel Mount: Fits standard 16mm diameter holes (5/8"), suitable for panels up to 0.50" thick.
Technical Specifications
- Switch Type: Single Pole Double Throw (SPDT)
- Contacts: 1 x Normally Open (NO), 1 x Normally Closed (NC)
- Voltage Rating: 3A @ 250VAC, 2A @ 24VDC
- LED Voltage: 12VDC (Red ring illumination)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max (Initial)
- Insulation Resistance: 1,000MΩ min @ 500VDC
- Dielectric Strength: 2,000V RMS 50~60Hz
- Operating Temperature: -20°C ~ +70°C
- IP Rating: IP67 (Waterproof, dustproof)
- Mounting Hole: 16mm (5/8")
- Max. Panel Thickness: 0.50"
- Overall Length: 1.23"
- Torque: 5 – 14Nm max. (nut application)
- Operating Force: 5.5N max.
Quality Materials & Package Contents
- Button & Bushing: Nickel plated brass
- Contacts: Silver alloy
- Nut: Nickel plated brass
- Base: Durable PBT
- Includes: 1 x Switch, mounting nut, and O-ring for waterproof seal
Easy to Use – Perfect for DIY & Everyday Projects
Ideal for home automation, automotive, marine, and appliance upgrades, this illuminated momentary push button switch offers straightforward installation and reliable operation. Whether you need an IP67 push button switch for outdoor lighting or a waterproof illuminated push button for custom electronics, this versatile component fits your needs and adds a professional look to any application.
