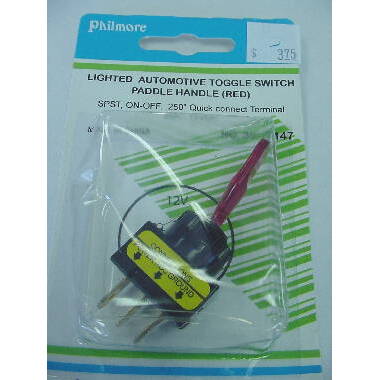

SPST Lighted Toggle Switch Paddle Handle Red 20A
SPST Lighted Toggle Switch – Paddle Handle, Red Lamp, 20AEasy-to-Use 20A Red Lighted Toggle Switch
Upgrade your electronics or automotive projects with this user-friendly SPST lighted toggle switch featuring a classic paddle handle and bright red illumination. Designed for reliability and ease of use, this paddle handle toggle switch offers a simple ON-OFF function with instant visual feedback from the integrated red lamp indicator.
Key Features of the Red Illuminated Paddle Handle Toggle Switch
- Type: Single Pole Single Throw (SPST) – straightforward ON/OFF control
- Handle Style: Easy-grip paddle handle for comfortable operation
- Illumination: Built-in red lamp lights up when switch is ON
- Electrical Rating: 20A at 12V DC – great for automotive or low-voltage projects
- Terminals: 0.250" quick connect tabs for convenient wiring
- Mounting Hole Size: Fits standard 0.500" (1/2") panel openings
- Max Panel Thickness: 0.093" (3/32")
- Quantity: Includes one switch and mounting nut
Perfect for Automotive & DIY Applications
This red illuminated SPST toggle switch is designed for compatibility with 12V DC systems, making it ideal as an automotive toggle switch for vehicles, trucks, boats, RVs, and custom electronics panels. Use it to control auxiliary lights, fans, or any 12V accessory where you want a clear ON indication and simple operation.
Quick & Secure Installation
With industry-standard 0.250" quick connect terminals, wiring up this lighted paddle switch is fast and mess-free. The included mounting nut makes it easy to secure the switch in a dashboard or project enclosure—simply insert into a 0.5" hole (up to 0.093" panel thickness) and tighten.
Technical Data for the SPST Red Lighted Toggle Switch
- Switch Type: SPST (Single Pole Single Throw), ON-OFF
- Handle: Paddle
- Indicator: Red lamp (illuminates when ON)
- Electrical Rating: 20A @ 12V DC
- Terminals: 0.250" (6.35mm) quick disconnect
- Mounting Hole: 0.500" (1/2") diameter
- Maximum Panel Thickness: 0.093" (3/32")
- Includes: 1 switch and mounting nut
Notes & Warnings
- For use with 12V DC systems only. Exceeding the 20A maximum current rating may cause switch failure.
- Not intended for household (AC) mains use.
