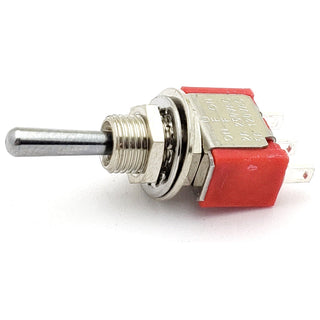

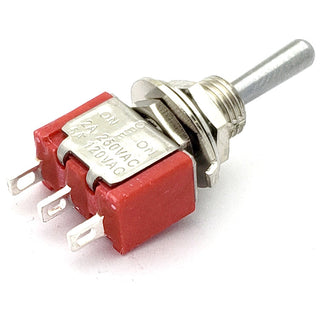

SPDT Mini Switch On-Off-On
SPDT Mini Switch On-Off-On – Compact 3-Position Toggle SwitchEasy-to-Use SPDT Miniature Toggle Switch for Everyday Projects
Upgrade your next DIY or electronics project with our SPDT mini switch, featuring a reliable on-off-on toggle function and robust metal actuator. With its compact design and straightforward operation, this single pole double throw (SPDT) switch is perfect for home repairs, hobby builds, model railroads, and light equipment panel controls.
Main Features of the SPDT Mini Switch
- Type: SPDT (Single Pole Double Throw)
- Action: On-Off-On (center OFF position for maximum flexibility)
- Actuator: Durable metal toggle for smooth and positive switching
- Mounting Hole Size: 0.250" diameter (easy panel installation)
- Terminals: Solder lug terminals for secure electrical connections
- Contact Material: Coin silver with silver plating for superior conductivity
- Terminal Material: Brass with silver plating
Current Ratings & Application Notes
- Rated Current: 5A @ 120V AC or 28V DC
- Rated Current: 2A @ 250V AC
These miniature toggle switches are ideal for controlling small lights, fans, or low-power circuits. The on-off-on design allows for three selectable states, making them a smart choice for reversing motor direction or selecting between functions.
Benefits for Everyday Consumers
- Simple installation in most standard panels or project boxes
- Easy to operate with a solid, tactile click
- Reliable switching for home electronics, automotive mods, and more
- Compact and space-saving – fits where larger switches can’t
Important Notes
- This 3-position SPDT toggle switch is not waterproof and should be used in dry environments.
- Requires basic soldering skills to attach wires to the lug terminals.
Why Choose Our SPDT On-Off-On Mini Switch?
Enjoy durable, hassle-free performance with a quality mini toggle switch trusted by professionals and hobbyists alike. Its solid metal actuator, dependable contacts, and user-friendly design make it an excellent choice for any project needing a compact on-off-on SPDT switch.
