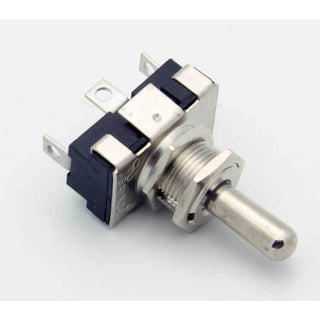

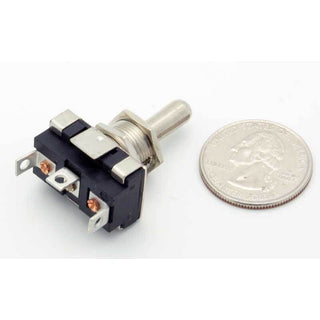

SPDT Toggle Switch (On)-Off-On 20A – Heavy Duty, Easy to Install

Reliable On-Off-On SPDT Toggle Switch for Everyday Projects

Upgrade your DIY or repair projects with this versatile SPDT toggle switch. Designed for convenience, this on-off-on toggle switch features a sturdy bat handle for easy operation and is built to provide dependable switching in home, automotive, or electronics applications. With a simple installation process, this 20A toggle switch is perfect for both beginners and experienced hobbyists.

Heavy Duty 20A SPDT Toggle Switch – Built to Last

This heavy-duty toggle switch is rated for 20A at 125VAC and 10A at 277VAC, making it an ideal choice for circuits that demand higher current. The single pole double throw (SPDT) switch design allows you to control two circuits with a single switch, offering flexible wiring options for different needs.

• Circuitry: SPDT – Single Pole Double Throw
• Action: (ON) - OFF - ON
  Note: The (ON) position is momentary. The OFF and other ON position are maintained.
• Current Ratings: 20A 125VAC, 10A 277VAC, (1+1/2 HP)
• Contact Material: Nickel Plated Brass
• Terminals: Tin Dipped Brass Solder Terminals (Accepts 16 - 20 AWG wire)
• Handle: Bat Handle Toggle
• Mounting Hole Size: 1/2"
• Thread Type: 15/32-32
• Includes: 1 Switch, mounting nuts, and washer

Easy Installation and Versatile Use

The SPDT toggle switch features clearly labeled solder terminals for hassle-free installation. Just connect your wires (16 - 20 AWG) using basic tools and you’re ready to switch power on or off in your next project. Widely used in automotive upgrades, hobby electronics, and home repairs, this easy-to-install toggle switch is a reliable addition to any toolkit.

Notes & Warnings

• This switch features a momentary ON position; the lever will spring back to OFF when released from this side.
• Be sure to check your circuit voltage and current requirements before installation.
• Always disconnect power before wiring or soldering to ensure your safety.
