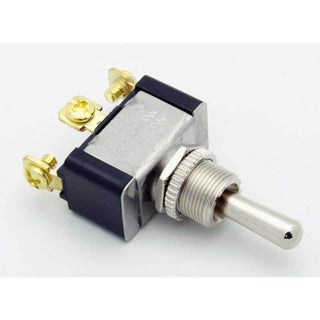

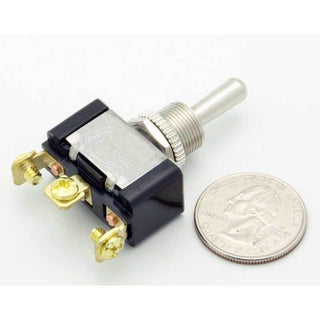

SPDT Toggle Switch On-Off-(On) 20A
SPDT Toggle Switch On-Off-(On) 20A – Heavy Duty Bat Handle SwitchReliable SPDT Toggle Switch for Everyday Projects
Upgrade your electrical setup with this SPDT toggle switch featuring a user-friendly On-Off-(On) action. With a classic bat handle design and robust construction, this switch is perfect for home repairs, automotive builds, DIY projects, or replacing worn-out equipment switches.
Key Features and Benefits
- SPDT (Single Pole Double Throw) Circuitry: Easily control two circuits with a single switch.
- Action: ON - OFF - (ON). The center position is OFF, one side is ON, and the other side is momentary ON—for temporary or impulse switching.
- Heavy-Duty 20A Rating: Handles up to 20 amps at 125VAC, and 10 amps at 277VAC. Also rated for 1-1/2 HP loads.
- Durable Bat Handle: Comfortable, easy grip for quick operation.
- Nickel-Plated Brass Contacts: Ensures reliable electrical connections and long lifespan.
- Brass Screw Terminals: For secure and easy wiring—no special tools needed.
- Panel Mount Design: Fits into a standard 1/2" mounting hole (thread type 15/32-32). Includes mounting nuts and washer for hassle-free installation.
Technical Specifications
- Circuit Type: SPDT (Single Pole Double Throw)
- Switch Action: ON - OFF - (ON) (momentary on one side)
- Handle Style: Bat Handle
- Contact Material: Nickel Plated Brass
- Terminals: Brass Screw Type
-
Current Ratings:
- 20A at 125VAC
- 10A at 277VAC
- 1+1/2 HP
- Mounting Hole: 1/2" diameter (15/32-32 thread)
- Includes: 1 toggle switch, mounting nuts, and washer
Perfect For:
- Home wiring and upgrades
- Automotive and marine electrical panels
- DIY electronics
- Industrial control boxes
- Replacing or upgrading old toggle switches
Important Notes
- The (ON) position is momentary—returns to OFF when the lever is released.
- Always turn off power before installing or replacing electrical switches.
This 20A SPDT toggle switch On-Off-(On) is designed for reliability and ease of use—ideal for a wide range of everyday electrical and electronic projects. If you need a heavy-duty toggle switch with both maintained and momentary positions, this model is a smart choice.
