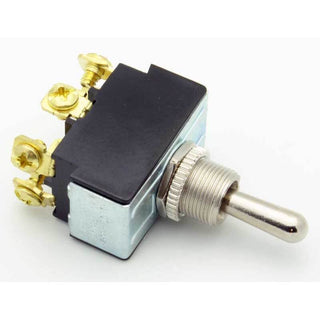

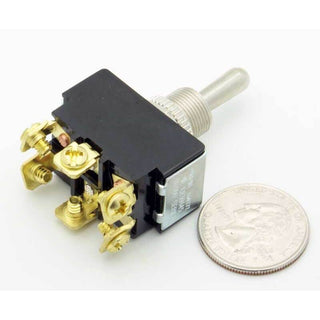

DPDT Toggle Switch (On)-Off-(On) 20A
DPDT Toggle Switch (On)-Off-(On) 20A – Heavy Duty Bat Handle SwitchReliable 20A DPDT Toggle Switch for Everyday Use
Upgrade your projects with this easy-to-install DPDT toggle switch. Featuring a classic bat handle design, this heavy-duty double pole double throw switch makes it simple to control circuits in home, automotive, or DIY electrical setups.
Momentary On-Off-On Toggle Switch Action
This On-Off-On toggle switch offers momentary action in both ON positions. Simply hold the switch in either ON direction, and it will return to the center OFF position when released. The center OFF position is not momentary, providing firm stability when needed.
- Circuitry: DPDT (Double Pole Double Throw)
- Action: (ON) - OFF - (ON) (Momentary in both ON positions)
- Handle Type: Bat Handle
- Contact Material: Nickel Plated Brass
Heavy-Duty Performance and Construction
Designed for high-current applications, this 20A toggle switch is built with brass screw terminals for secure wiring. The robust metal construction and nickel-plated brass contacts ensure dependable performance and long-lasting durability for both hobbyists and professionals.
-
Current Rating:
- 20A @ 125VAC
- 10A @ 277VAC
- (1 + 1/2 HP)
- Terminal Type: Brass Screw Terminals
- Contact Material: Nickel Plated Brass
Simple Installation for Your Projects
This bat handle DPDT toggle switch fits a standard 1/2" mounting hole and comes complete with mounting nuts and a washer. The 15/32-32 thread type ensures a secure fit in panels, enclosures, and dash mounts—perfect for electrical projects, automotive upgrades, and household repairs.
- Mounting Hole: 1/2"
- Thread Type: 15/32-32
- Includes: 1 Switch, Mounting Nuts, Washer
Notes and Warnings
- This switch is momentary in both ON positions. The ON positions are spring-loaded and will return to center OFF when released.
- Confirm your panel cutout matches the 1/2" mounting hole requirement.
- Always use caution when working with high-voltage electrical circuits.
Enjoy dependable control for your next electrical project with this versatile DPDT On-Off-On toggle switch, built for easy use and everyday reliability.
