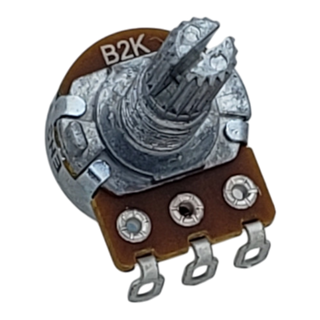

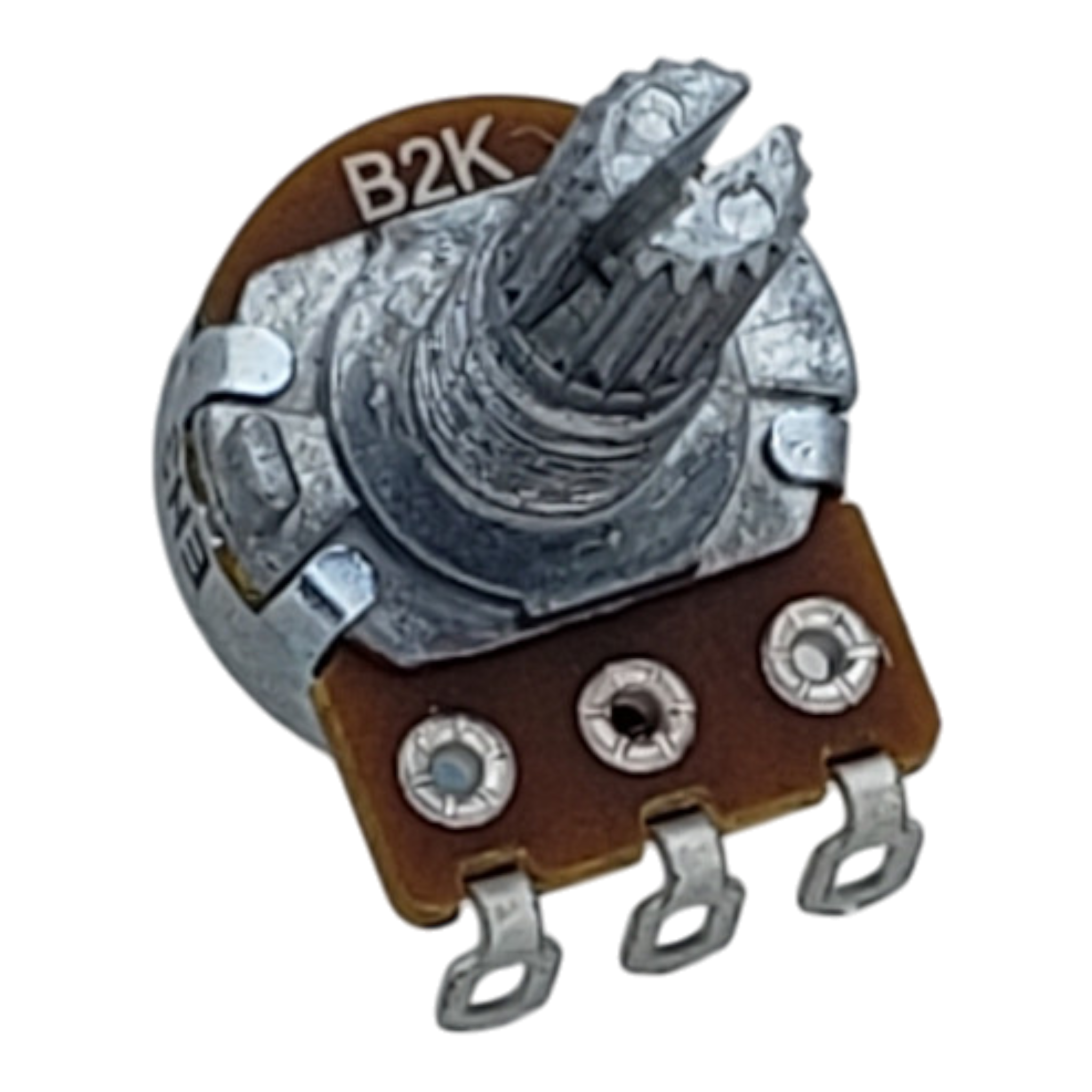

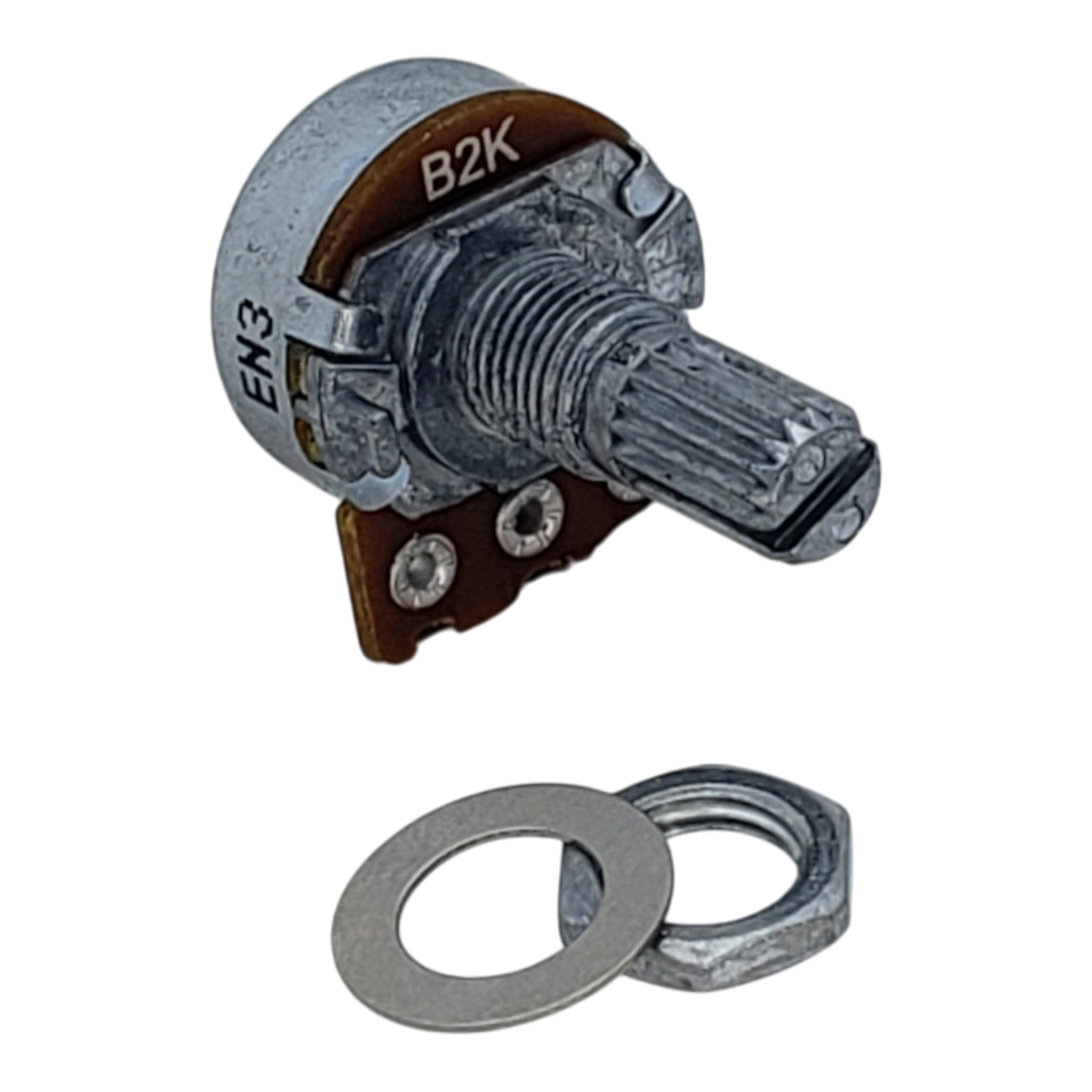

2K Linear 1/8W Potentiometer with Split Splined Shaft
2K Linear 1/8W Potentiometer with Split Splined Shaft
This 2K linear taper potentiometer is a simple, useful control part for electronics repairs, DIY projects, audio circuits, control panels, and custom builds. The linear taper gives a smooth, even change in resistance as the shaft is turned, making it a good choice when you want predictable adjustment from one end of the control range to the other.
The solder lug terminals make it easy to wire into a project without needing a circuit board footprint. The 6mm split splined shaft fits many common push-on knobs, making this potentiometer convenient for panel-mounted controls and replacement work.
Easy-to-Wire 2K Linear Potentiometer
This potentiometer is designed for top adjustment and uses solder lugs for direct wiring. It works well for hobby electronics, repair benches, test fixtures, low-power control circuits, and other applications that need a compact adjustable resistor.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Alpha |
| Manufacturer Part Number | B2K 17mm |
| Resistance | 2K ohm |
| Taper | Linear, Type B |
| Power Rating | 0.125W |
| Adjustment Type | Top adjustment |
| Terminals | Solder lugs |
| Shaft Type | Split splined / knurled shaft |
| Shaft Diameter | 6mm |
| Shaft Length | 17mm total, 10.5mm + 6.5mm |
| Thread Length | 6.5mm |
| Mounting Hole | 7.5mm |
| Base Diameter | 16mm |
| Rotation Angle | 300° ± 5° |
| RoHS | Yes |
| Vetco SKU | TEA-1967 |
Why Vetco Carries This Potentiometer
Vetco carries 2K linear potentiometers because they are practical everyday parts for repairs, prototypes, and control circuits. This style is easy to mount, easy to solder, and compatible with many standard knobs, making it a reliable choice for both beginners and experienced builders.
