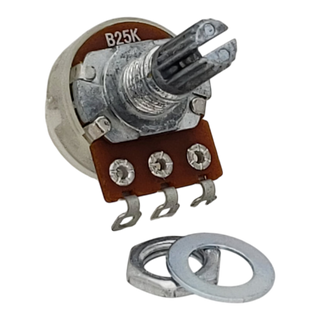

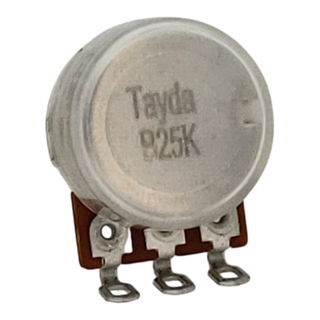

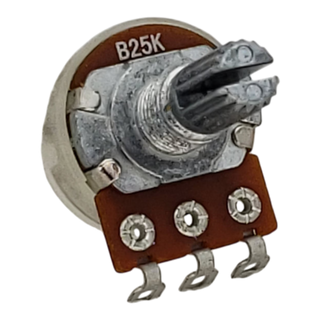

25K Linear 1/8W Potentiometer with Split Splined Shaft & Dust Seal
25K Linear 1/8W Potentiometer with Split Splined Shaft & Dust Seal
This 25K linear taper potentiometer is a compact adjustable control for electronics repairs, DIY projects, audio circuits, and custom panels. The linear taper provides a steady, even resistance change as the shaft is turned.
It has solder lug terminals for easy hand wiring, a 6mm split splined shaft for use with many standard push-on knobs, and an included dust seal. This makes it a convenient choice for panel-mounted controls and replacement work.
25K Linear Potentiometer for DIY Electronics
A 25K potentiometer is useful in many low-power circuits that need adjustable resistance or a variable voltage control. It can be used in control boxes, audio projects, repair work, test circuits, and general electronics builds.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Tayda Electronics |
| Manufacturer Part Number | RV16108NO-KA17D8.5-B25K-060C |
| Resistance | 25K ohm |
| Taper | Linear, Type B |
| Power Rating | 0.1W |
| Adjustment Type | Top adjustment |
| Terminals | Solder lugs |
| Dust Seal | Included |
| Shaft Type | Split splined / knurled shaft |
| Shaft Diameter | 6mm |
| Shaft Length | 17mm total, 10.5mm + 6.5mm |
| Thread Length | 6.5mm |
| Mounting Hole | 7.5mm |
| Base Diameter | 16mm |
| Rotation Angle | 300° ± 5° |
| Vetco SKU | TEA-5655 |
Why Vetco Carries This Potentiometer
Vetco carries 25K linear potentiometers because they are useful for everyday electronics projects, repairs, and custom controls. This solder lug version is easy to work with, includes a dust seal, and fits many standard knobs.
