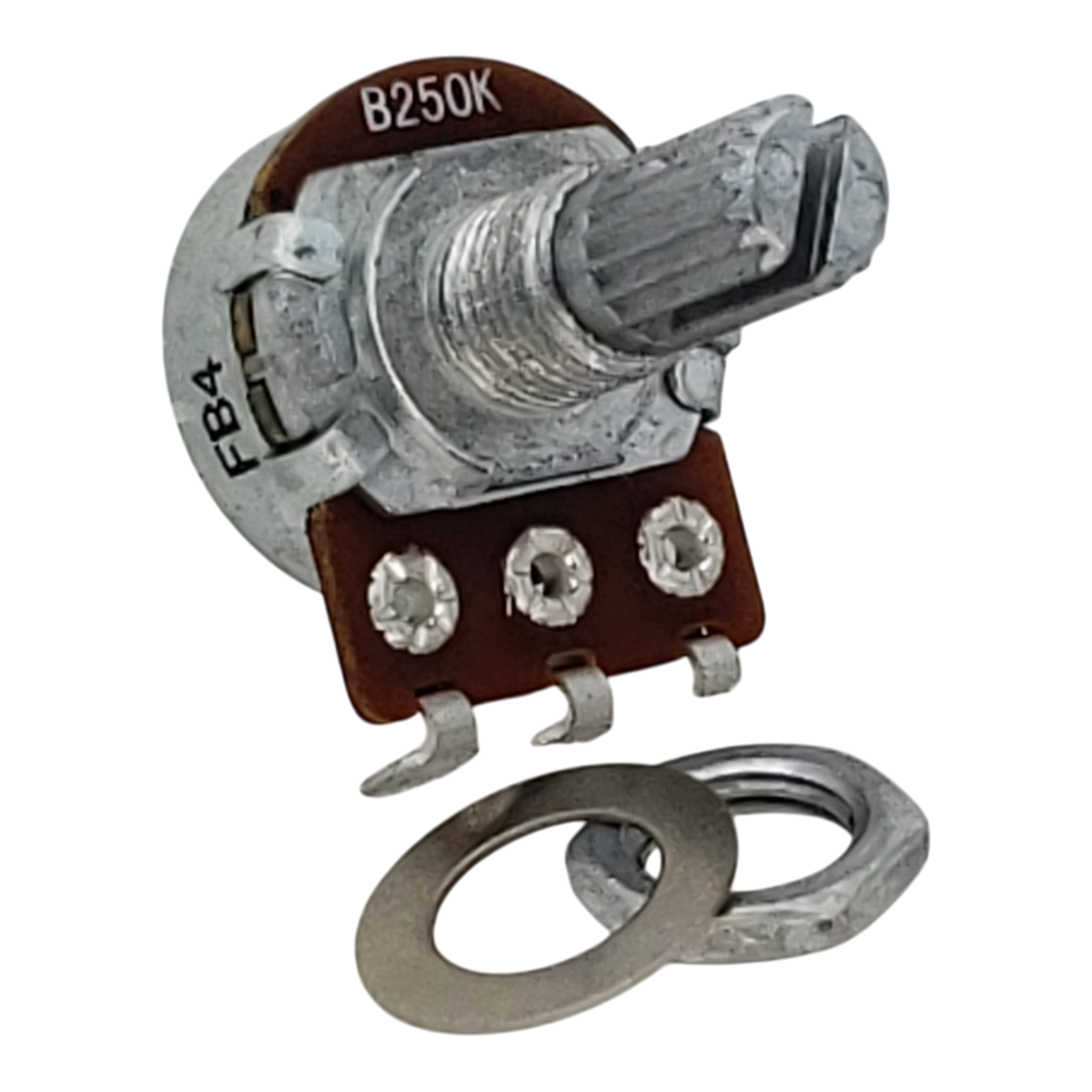

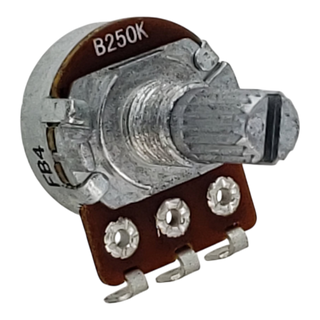

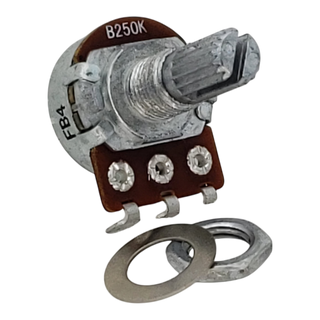

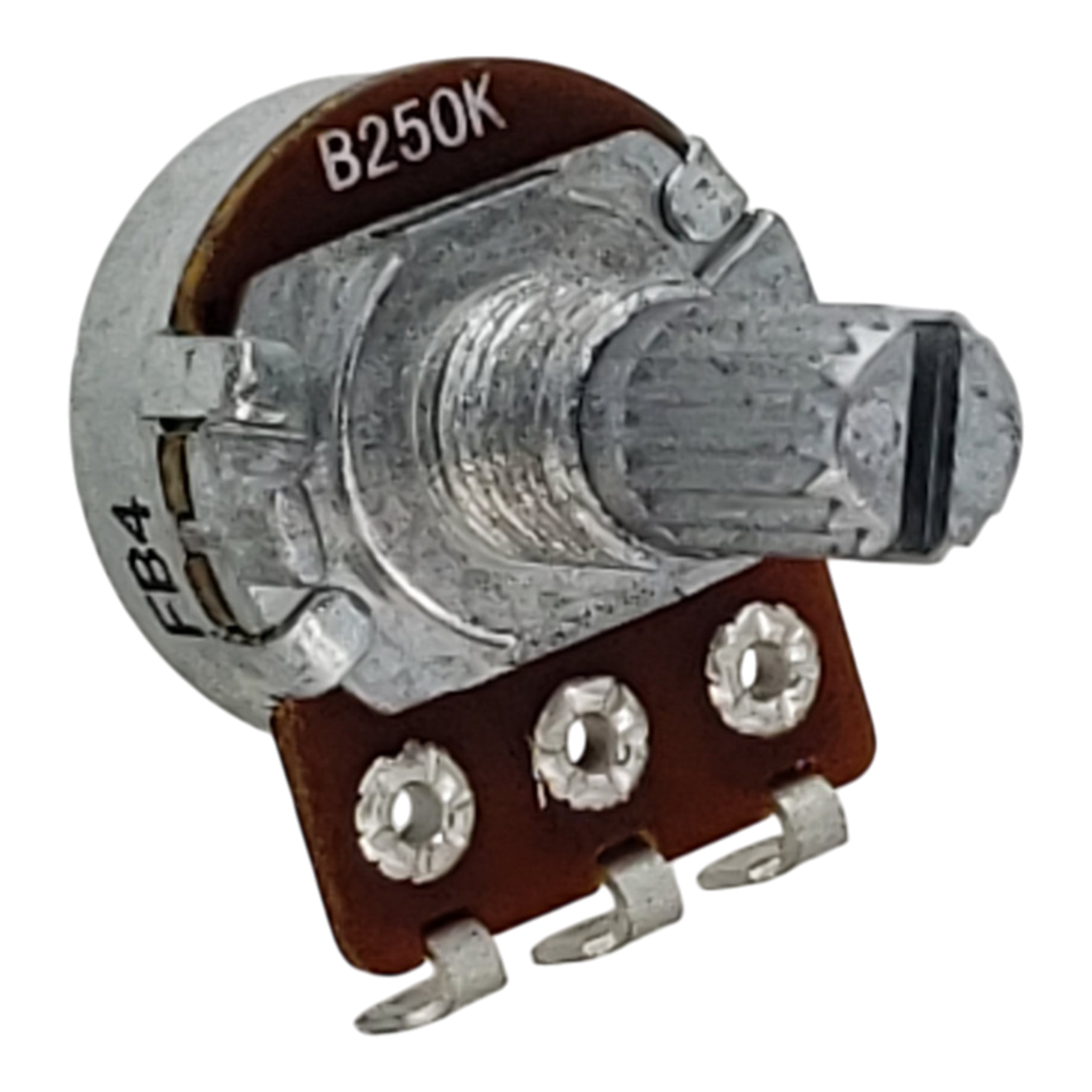

250K Linear 1/8W Potentiometer with Split Splined Shaft
250K Linear 1/8W Potentiometer with Split Splined Shaft
This 250K linear taper potentiometer is a handy adjustable control for electronics repairs, audio projects, DIY builds, and custom control panels. The linear taper gives an even resistance change as the shaft is rotated, making adjustments smooth and predictable.
The solder lug terminals make it easy to wire into a project, and the 6mm split splined shaft works with many standard push-on knobs. This compact 17mm potentiometer is a useful replacement part and project component.
250K Linear Potentiometer with Solder Lugs
A 250K potentiometer is commonly used in signal-level circuits, audio projects, guitar-related electronics, test circuits, and control applications. The solder lug style is useful for panel wiring, hand-built circuits, and repairs where a PCB-mount control will not fit.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Alpha |
| Manufacturer Part Number | B250K 17mm |
| Resistance | 250K ohm |
| Taper | Linear, Type B |
| Power Rating | 0.125W |
| Adjustment Type | Top adjustment |
| Terminals | Solder lugs |
| Shaft Type | Split splined / knurled shaft |
| Shaft Diameter | 6mm |
| Shaft Length | 17mm total, 10.5mm + 6.5mm |
| Thread Length | 6.5mm |
| Mounting Hole | 7.5mm |
| Base Diameter | 16mm |
| Rotation Angle | 300° ± 5° |
| RoHS | Yes |
| Vetco SKU | TEA-1968 |
Why Vetco Carries This Potentiometer
Vetco carries 250K linear potentiometers because they are useful for electronics customers working on repairs, audio circuits, and custom projects. This version is easy to solder, simple to mount, and compatible with many common knobs.
