manufacturer part number: 501-0003
|number of turns||1|
|actuator type||Stainless Steel Round Shaft|
|termination style||Solder Eyelets, Gold Plated|
|mounting type||Panel Mount, 3/8" Hole|
|size - body||1.12" Dia x .536" H|
|curve type||KU - Linear|

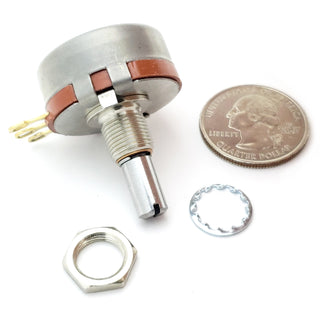

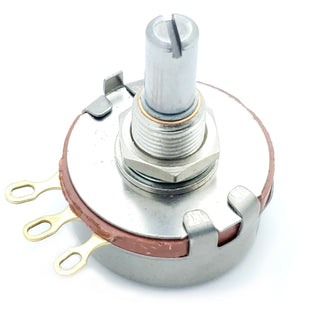

PEC KU/RV4NAY Series Potentiometer. PEC Part Number: KU2511S28
These high-quality potentiometers are built for reliability and are ideal for both new construction and repair projects. It mounts in a 3/8" hole and includes a locating tab to prevent rotation. The tab can be folded over or cut off if not required. The 1/4" diameter, 7/8" long shaft is smooth and round, but had a spit at the top that measures 0.065" deep, suitable for knobs that include an anti-rotation flange built in.
Smooth, 314° rotation and rated for 25,000 cycles. Please see the datasheet link above for detailed specifications.
QTY: 1 x 250 Ohm 2 Watt Linear Taper Potentiometer
