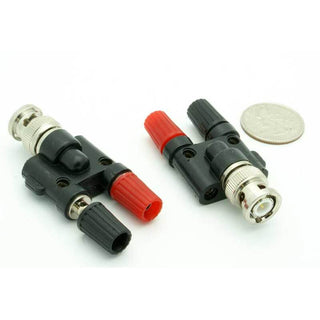

Dual Banana Jack to BNC Male Adapter

Easy Test Equipment Connections with BNC to Banana Adapter

This Dual Banana Jack to BNC Male Adapter makes connecting your test equipment simple and efficient. With two banana jacks (binding posts) and a BNC male connector, this adapter is perfect for adapting probes to oscilloscopes, function generators, or other instruments with a BNC interface. It’s an essential accessory for any electronics hobbyist or bench technician.

Key Features of the BNC to Banana Plug Converter

• Versatile Connection: Dual banana jack/binding posts allow easy wire or banana plug insertion. Compatible with 16AWG wire and standard banana plugs.
• BNC Male Connector: Securely connects to BNC-equipped instruments for signal transfer and measurement accuracy.
• Side Stacking Capability: 0.161" holes in the adapter body let you stack multiple units side-by-side for expanded testing.
• Standard Spacing: Banana jacks have 0.75" center-to-center spacing for universal compatibility.
• Durable Construction: Built to withstand repeated use on your test bench.

Technical Specifications

• Connector A: Dual banana jack (binding post)
• Connector B: BNC male
• Banana Jack Center-to-Center Spacing: 0.75"
• Side Stacking Hole Diameter: 0.161"
• Wire Compatibility: Accepts 16AWG wire or standard banana plugs
• Overall Dimensions: 1.11" W x 2.33" L
• Product ID: 2390B
• Quantity: 1 adapter per pack

How to Use

Simply insert your test lead or banana plug into the binding posts, then connect the BNC male end to your test equipment. For expanded versatility, use the side stacking holes to combine multiple adapters.

Your Go-To BNC to Binding Post Adapter

Whether you're setting up a new lab, troubleshooting circuits, or upgrading your workbench, this BNC to Banana Jack Connector offers reliable performance and convenience. Add this adapter to your collection for flexible, hassle-free connections every time.
