2.1mm DC Power Panel Mount Jack
SKU: 2112

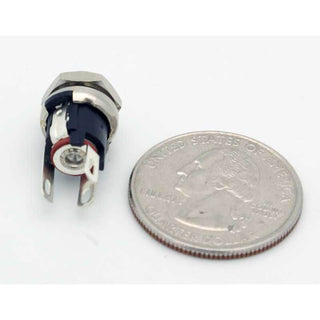

2.1mm x 5.5mm DC Power Panel Mount Jack
Panel Mount DC Barrel Power Jack. These jacks may also be called DC Coaxial Jacks.
2.1mm DC Plug PH-210B
Overall Dimensions: 0.82" Tall x 0.43" Wide
QTY: 1 Jack. Includes mounting nut.
Vetco stocks a wide variety of DC Barrel Plugs, Jacks, Adapters and Pig Tail Cables.
Panel Mount DC Barrel Power Jack. These jacks may also be called DC Coaxial Jacks.
- Jack Size: 2.1mm ("Type M")
- Center Pin: 2.1mm
- Inner Diameter: 5.5mm
- Solder Terminals for 18-24awg wire
- Mounting Hole: 0.313"
- Maximum Panel Thickness: 1/8" (0.138") (3.5mm)
- Features an integrated normally-closed switch that opens when a plug is inserted. This is useful for disabling internal batteries when powered externally, etc.
2.1mm DC Plug PH-210B
Overall Dimensions: 0.82" Tall x 0.43" Wide
QTY: 1 Jack. Includes mounting nut.
Vetco stocks a wide variety of DC Barrel Plugs, Jacks, Adapters and Pig Tail Cables.
2.1mm x 5.5mm DC Power Panel Mount Jack
Panel Mount DC Barrel Power Jack. These jacks may also be called DC Coaxial Jacks.
2.1mm DC Plug PH-210B
Overall Dimensions: 0.82" Tall x 0.43" Wide
QTY: 1 Jack. Includes mounting nut.
Vetco stocks a wide variety of DC Barrel Plugs, Jacks, Adapters and Pig Tail Cables.
Panel Mount DC Barrel Power Jack. These jacks may also be called DC Coaxial Jacks.
- Jack Size: 2.1mm ("Type M")
- Center Pin: 2.1mm
- Inner Diameter: 5.5mm
- Solder Terminals for 18-24awg wire
- Mounting Hole: 0.313"
- Maximum Panel Thickness: 1/8" (0.138") (3.5mm)
- Features an integrated normally-closed switch that opens when a plug is inserted. This is useful for disabling internal batteries when powered externally, etc.
2.1mm DC Plug PH-210B
Overall Dimensions: 0.82" Tall x 0.43" Wide
QTY: 1 Jack. Includes mounting nut.
Vetco stocks a wide variety of DC Barrel Plugs, Jacks, Adapters and Pig Tail Cables.
