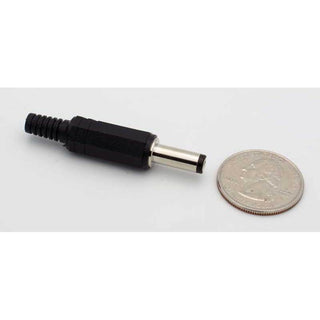

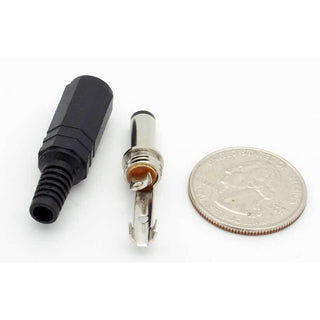

2.1mm x 5.5mm DC Power Inline Plug

Inline DC Barrel Power Plug. These plugs may also be called DC Coaxial plugs.

• Plug Size: 2.1mm ("Type M")
• Center Pin: 2.1mm
• Outer Diameter: 5.5mm
• Solder Terminals for 18-24awg wire
• Molded Strain Relief will fit cables up to 0.17" Diameter
• Extra long barrel - 1+7/16" - for deep jacks.

This plug mates with the following jack:
2.1mm DC Panel Mount Jack PH-2112

Overall Dimensions: 2.03" Long x 0.40" Diameter
QTY: 1 Plug



Vetco stocks a wide variety of DC Barrel Plugs, Jacks, Adapters and Pig Tail Cables.
