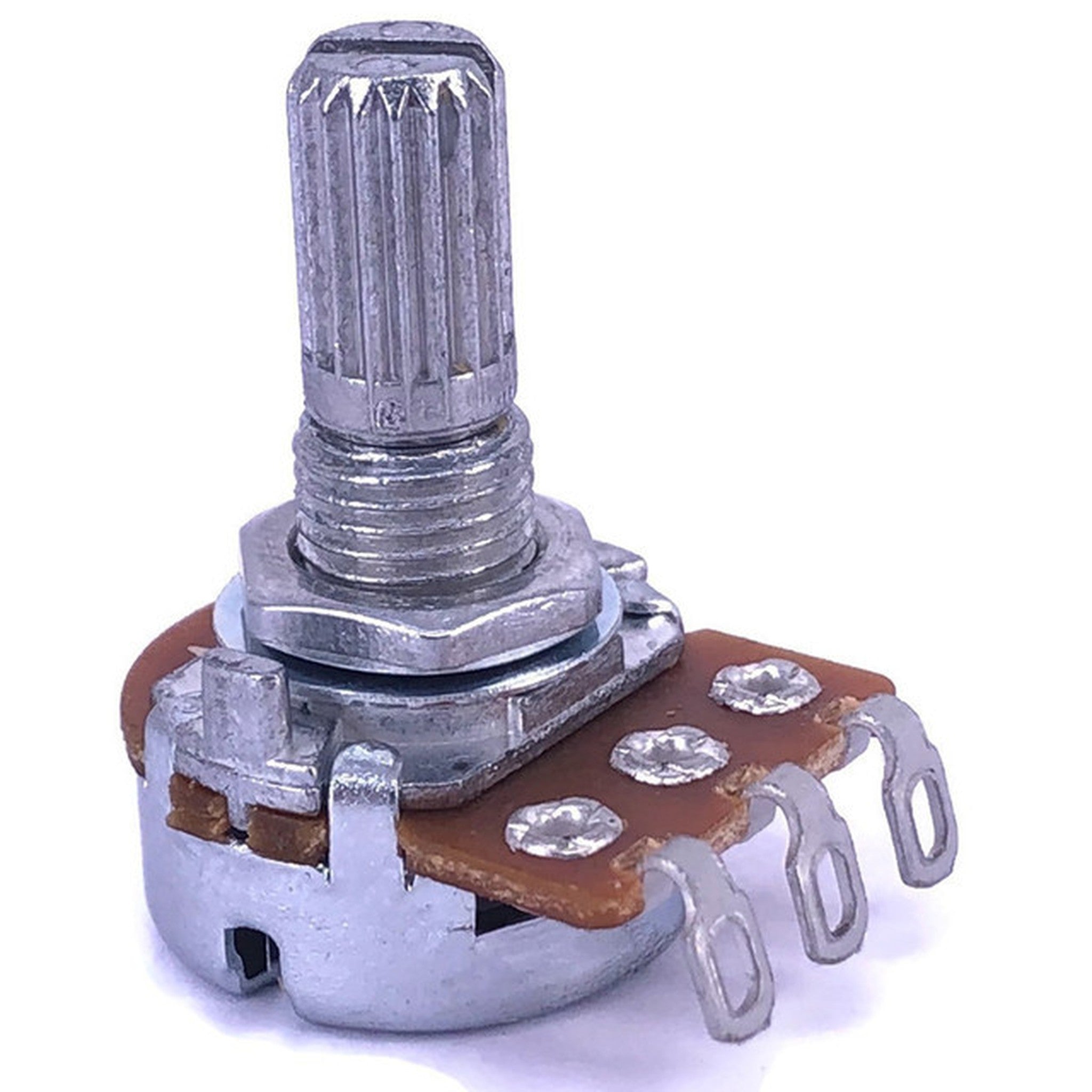

20k Ohm 0.125W Linear Taper Potentiometer with Solder Lugs
20k Ohm 0.125W Linear Taper Potentiometer with Solder Lugs
This ALPHA 20k ohm linear taper potentiometer is a flexible mid-range control for adjusting signals, biasing circuits, and tuning your projects. The 17mm body fits easily into panels and enclosures.
Its Type B linear taper gives an even change in resistance across the full turn, so the 20k ohm setting responds smoothly and predictably as you rotate the shaft.
Flexible 20k Ohm Potentiometer for Signal Adjustment
A 20k ohm linear pot works well for tone shaping, bias adjustment, sensor calibration, and general purpose tuning. The solder lug terminals make connections quick and secure.
Standard Panel Mounting and Knob Fit
A threaded bushing, mounting nut, and knurled T18 spline shaft let this 20k potentiometer install in common panels and accept most push-on control knobs.
Dependable for DIY and Repair Work
Easy to wire and built to last, this 20k ohm linear potentiometer (Vetco SKU TEA-1963) is a solid pick for makers, hobbyists, and repair technicians.
20k Ohm Linear Potentiometer Specifications
| Resistance | 20k ohms |
|---|---|
| Taper | Linear, Type B |
| Power Rating | 0.125 W, 1/8 watt |
| Manufacturer | ALPHA |
| Manufacturer Designation | B20K 17mm |
| Terminal Type | Solder lugs |
| Rotation | 300 degrees, plus or minus 5 degrees |
| Compliance | RoHS compliant |
Shaft and Panel Mounting Dimensions
| Shaft Diameter | 6mm, 0.24 inch |
|---|---|
| Shaft Style | Knurled T18 spline |
| Total Shaft Length | 17mm, 0.67 inch |
| Shaft Above Thread | 10.5mm |
| Thread Length | 6.5mm, 0.26 inch |
| Recommended Mounting Hole | 7.5mm, 0.30 inch |
| Base Diameter | 16mm, 0.63 inch |
| Mounting Style | Nut mounted |
| Knob Compatibility | Fits most standard knobs designed for a 6mm T18 spline shaft |
Compact 17mm ALPHA Potentiometer
Made by ALPHA and marked B20K, this 17mm potentiometer delivers smooth adjustment in a compact, panel-ready package.
