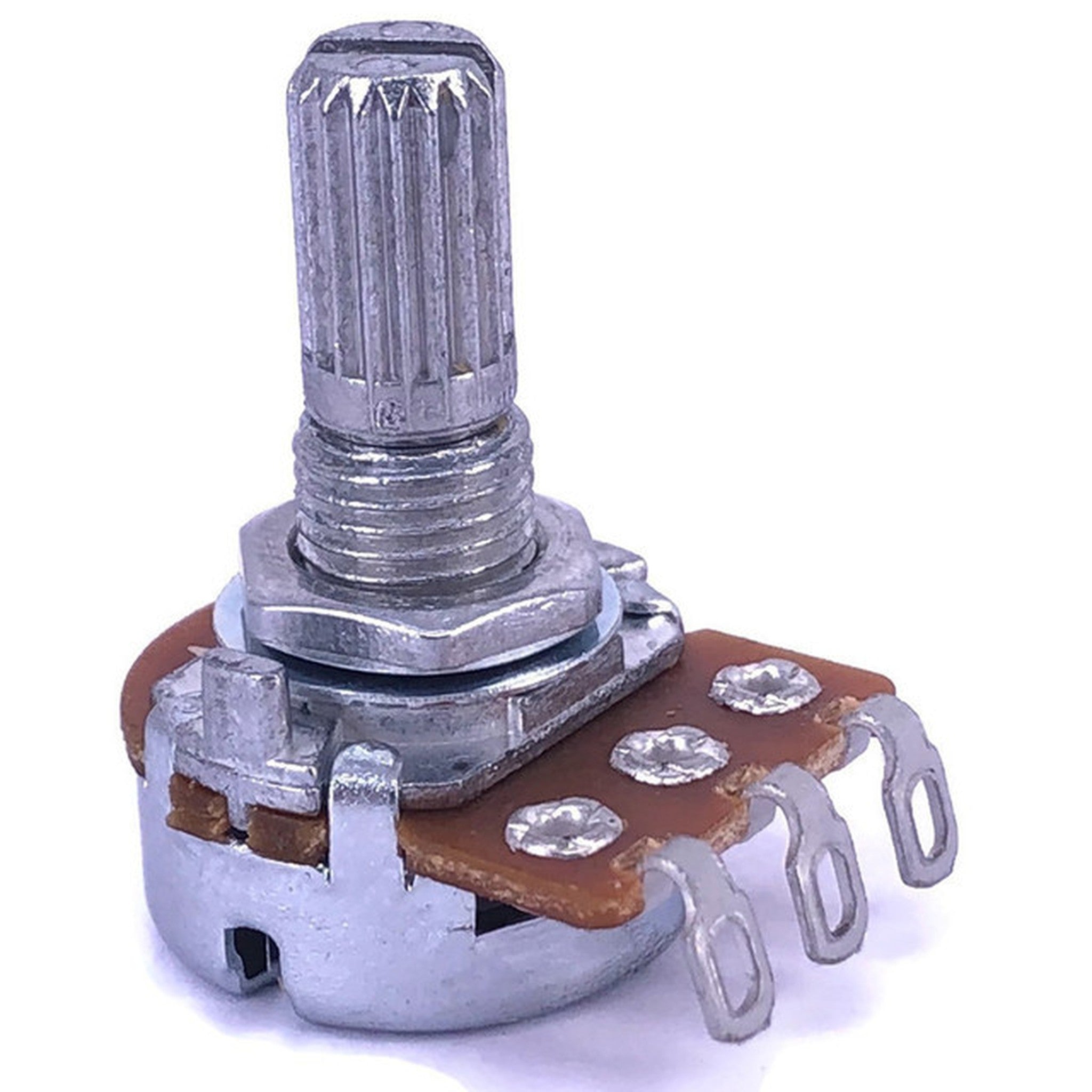

200k Ohm 0.125W Linear Taper Potentiometer with Solder Lugs
200k Ohm 0.125W Linear Taper Potentiometer with Solder Lugs
This ALPHA 200k ohm linear taper potentiometer provides smooth, high-impedance adjustment for timing, audio, and sensitive control circuits. The compact 17mm body fits easily into panels and enclosures.
Thanks to its Type B linear taper, the 200k ohm value changes resistance evenly across the full turn for steady, predictable control.
High-Impedance 200k Ohm Potentiometer
A 200k ohm linear pot works well for RC timing, op-amp feedback, sensor bias, and fine level setting where a large resistance is needed. The solder lug terminals connect easily with standard wire.
Simple Panel Mounting and Knob Fit
The threaded bushing, mounting nut, and knurled T18 spline shaft let this 200k potentiometer mount in common panels and take most push-on knobs.
Useful for DIY Electronics and Repair
Reliable and easy to wire, this 200k ohm linear potentiometer (Vetco SKU TEA-1969) is a dependable choice for makers, technicians, and audio projects.
200k Ohm Linear Potentiometer Specifications
| Resistance | 200k ohms |
|---|---|
| Taper | Linear, Type B |
| Power Rating | 0.125 W, 1/8 watt |
| Manufacturer | ALPHA |
| Manufacturer Designation | B200K 17mm |
| Terminal Type | Solder lugs |
| Rotation | 300 degrees, plus or minus 5 degrees |
| Compliance | RoHS compliant |
Shaft and Panel Mounting Dimensions
| Shaft Diameter | 6mm, 0.24 inch |
|---|---|
| Shaft Style | Knurled T18 spline |
| Total Shaft Length | 17mm, 0.67 inch |
| Shaft Above Thread | 10.5mm |
| Thread Length | 6.5mm, 0.26 inch |
| Recommended Mounting Hole | 7.5mm, 0.30 inch |
| Base Diameter | 16mm, 0.63 inch |
| Mounting Style | Nut mounted |
| Knob Compatibility | Fits most standard knobs designed for a 6mm T18 spline shaft |
Compact 17mm ALPHA Potentiometer
Made by ALPHA and marked B200K, this 17mm potentiometer delivers smooth high-impedance control in a small, panel-ready size.
