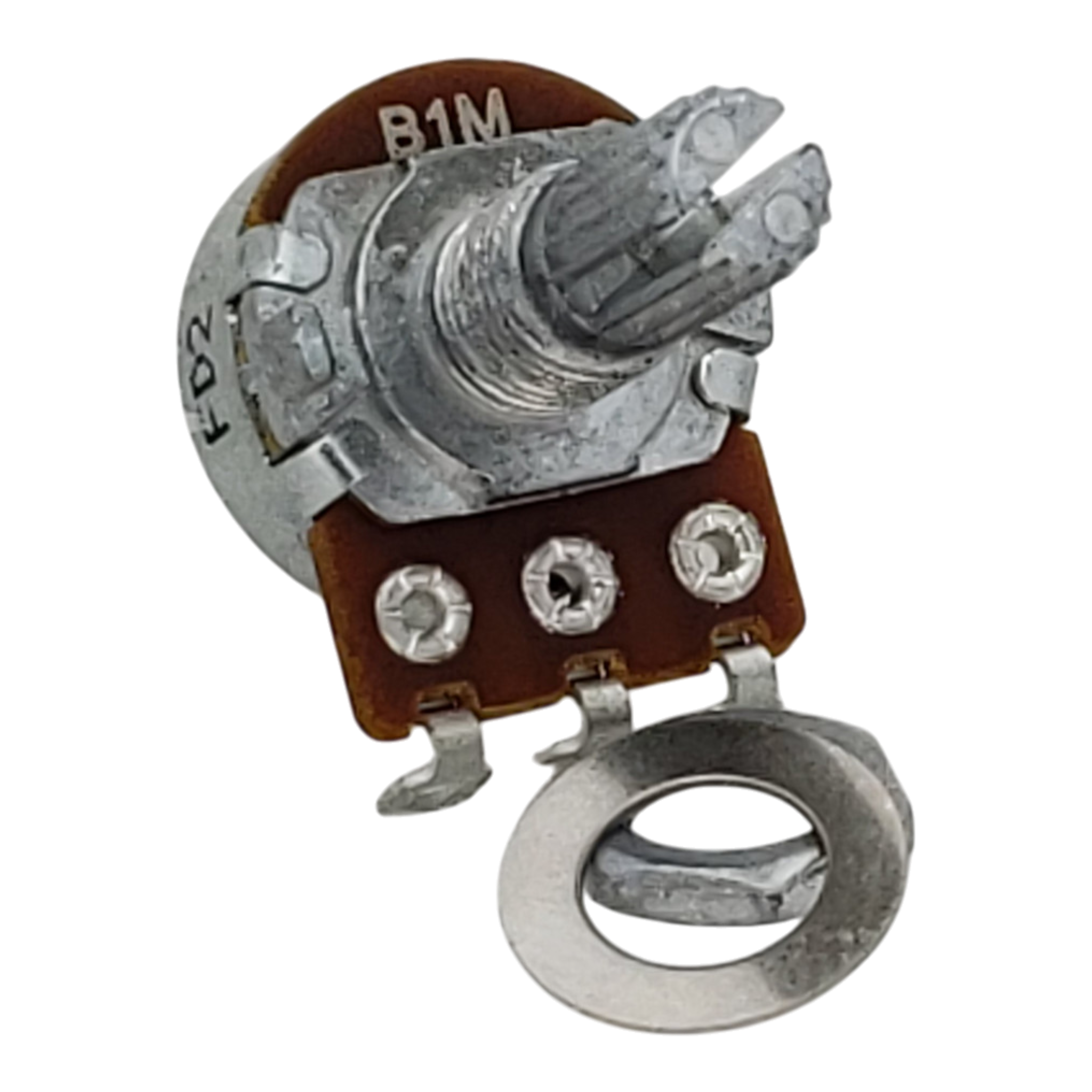

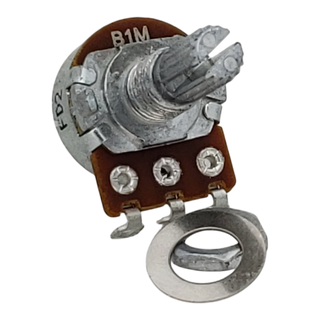

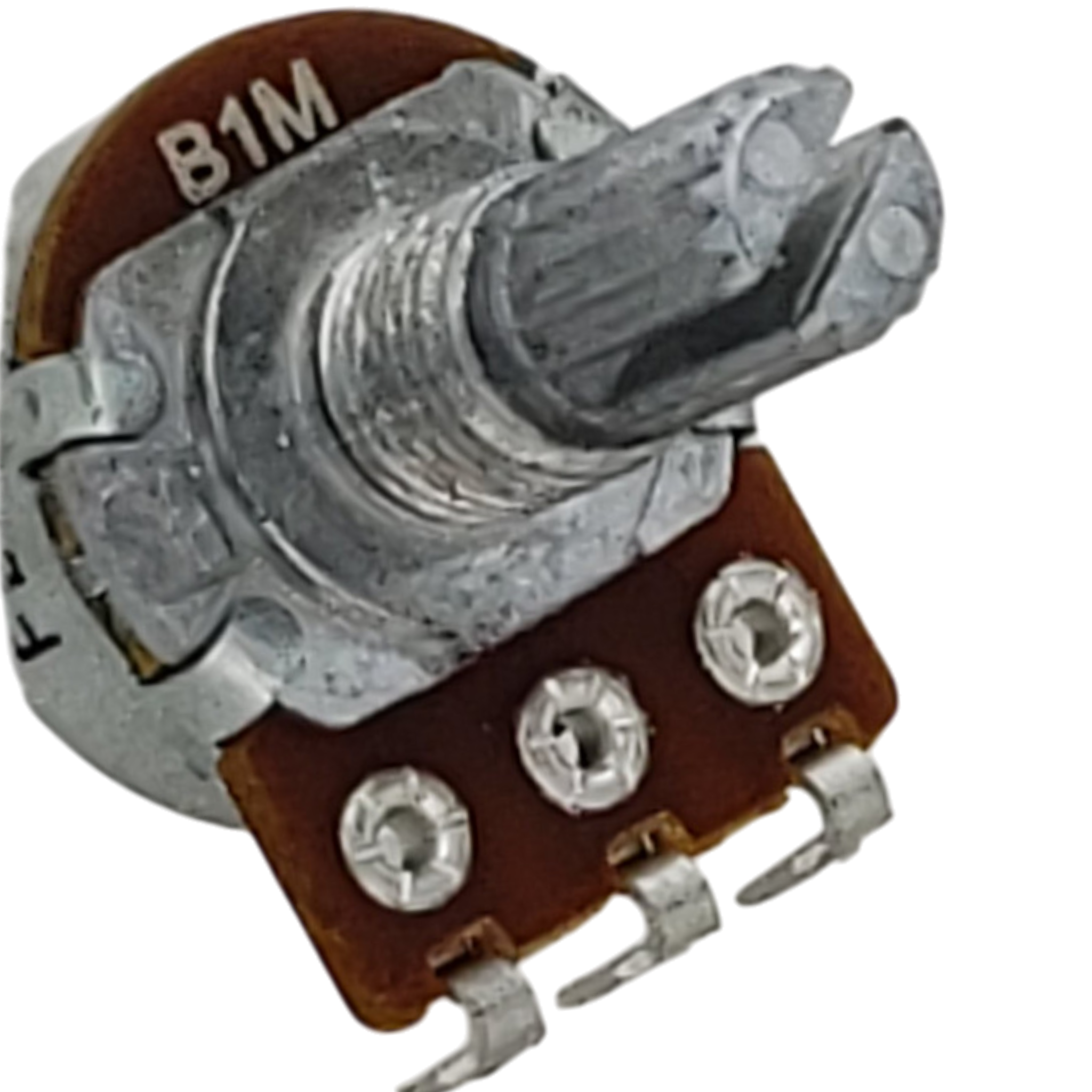

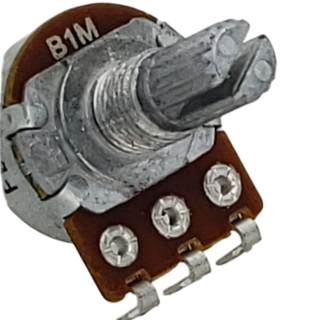

1M Linear 1/8W Potentiometer with Split Splined Shaft
1M Linear 1/8W Potentiometer with Split Splined Shaft
This 1M linear taper potentiometer is a compact adjustable control for electronics repairs, audio projects, DIY circuits, and custom panels. The linear taper provides a smooth, even resistance change as the shaft is turned.
The solder lug terminals are easy to wire by hand, and the 6mm split splined shaft fits many standard push-on knobs. This makes it a convenient part for replacing worn controls or adding a new adjustable control to a project.
1M Linear Potentiometer for Electronics Projects
A 1M potentiometer is useful in circuits that need a high-value adjustable resistance or voltage control. It can be used in signal-level circuits, audio projects, test fixtures, repair work, and custom electronics builds.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Alpha |
| Manufacturer Part Number | B1M 17mm |
| Resistance | 1M ohm |
| Taper | Linear, Type B |
| Power Rating | 0.125W |
| Adjustment Type | Top adjustment |
| Terminals | Solder lugs |
| Shaft Type | Split splined / knurled shaft |
| Shaft Diameter | 6mm |
| Shaft Length | 17mm total, 10.5mm + 6.5mm |
| Thread Length | 6.5mm |
| Mounting Hole | 7.5mm |
| Base Diameter | 16mm |
| Rotation Angle | 300° ± 5° |
| RoHS | Yes |
| Vetco SKU | TEA-1971 |
Why Vetco Carries This Potentiometer
Vetco carries 1M linear potentiometers because they are useful high-value controls for repairs, audio work, and electronics projects. This solder lug style is simple to wire, easy to mount, and practical for customers building or repairing adjustable control circuits.
