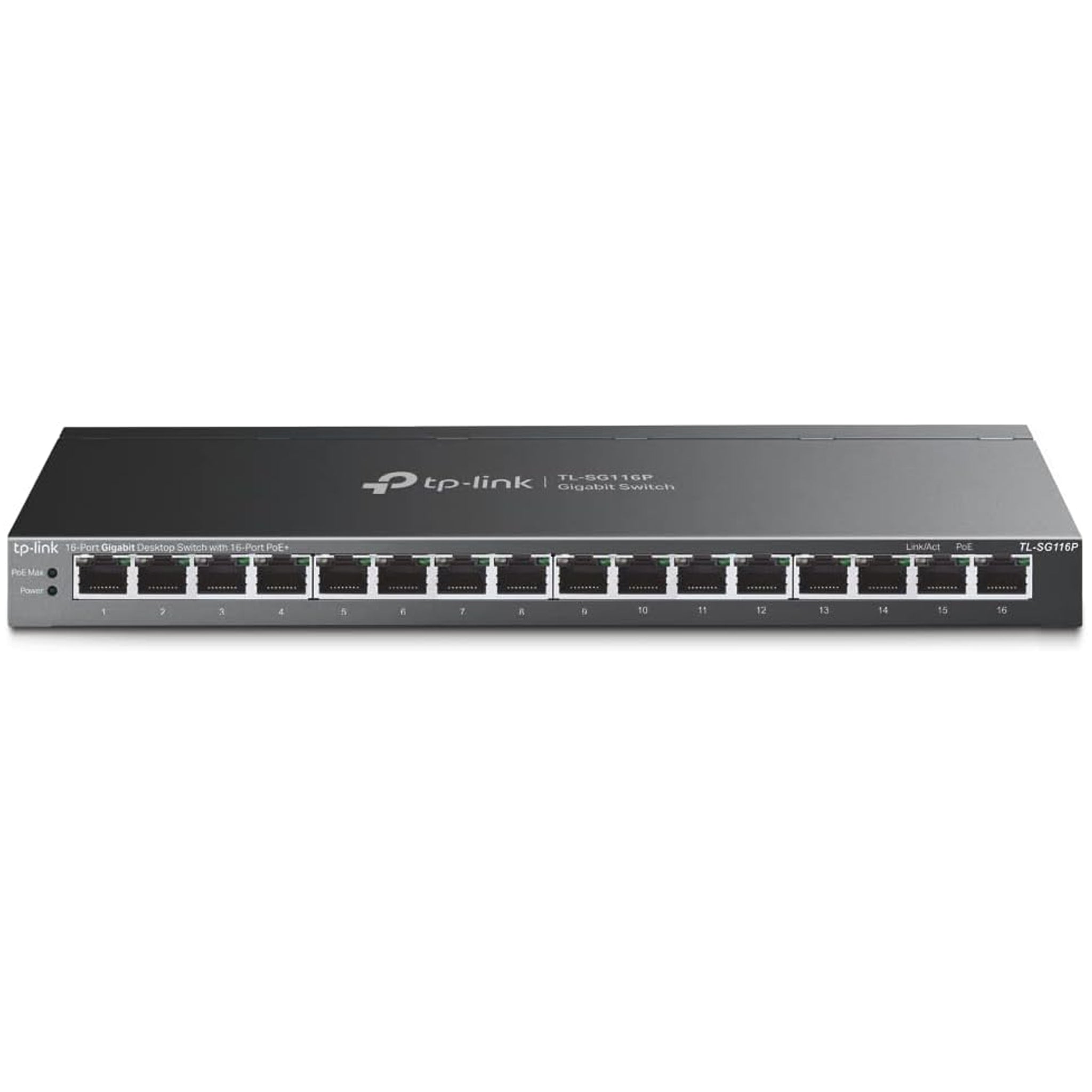

16-Port Gigabit PoE Switch - All 16 ports are PoE+ - Tp-Link (TL-SG116P)
- Unit price
- / per

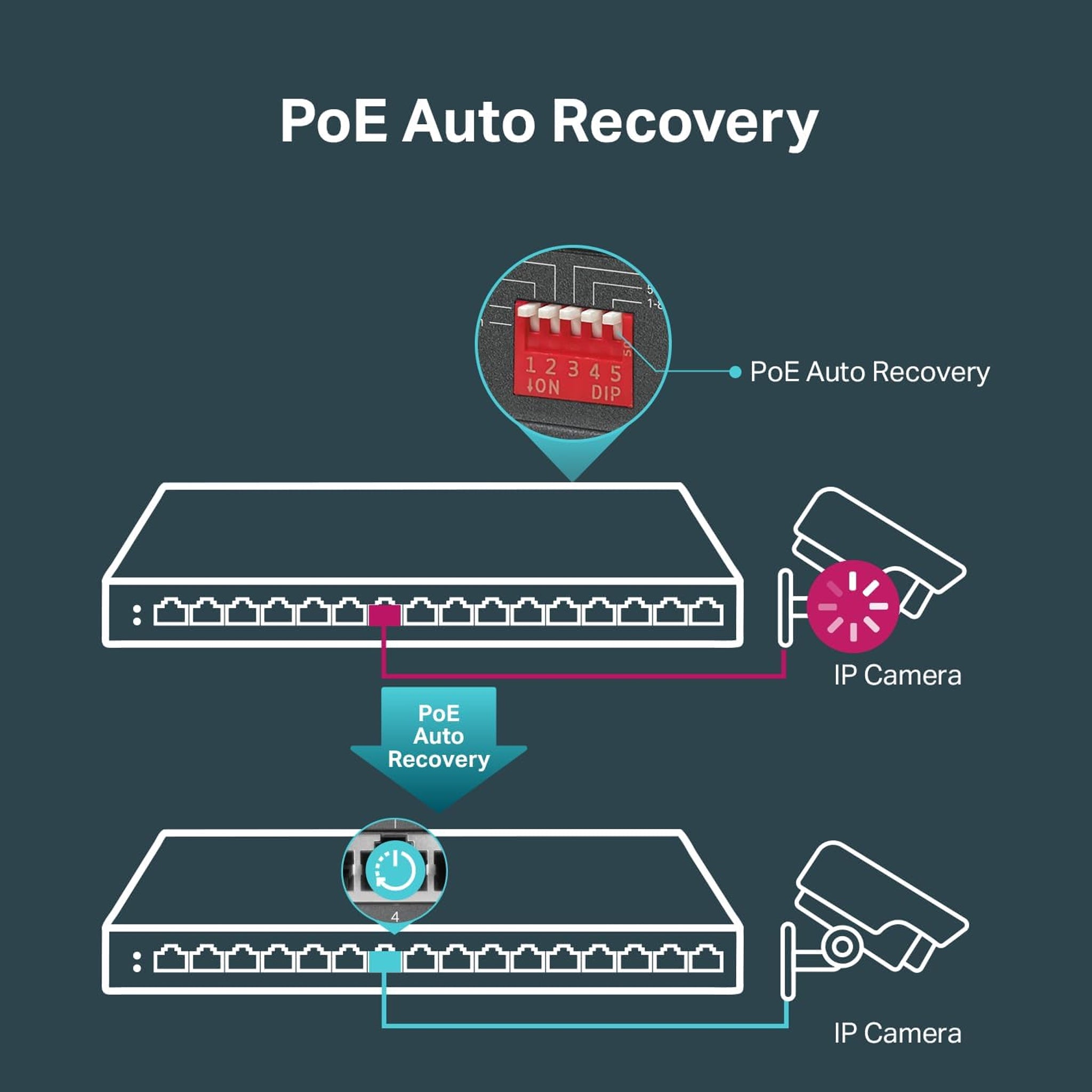

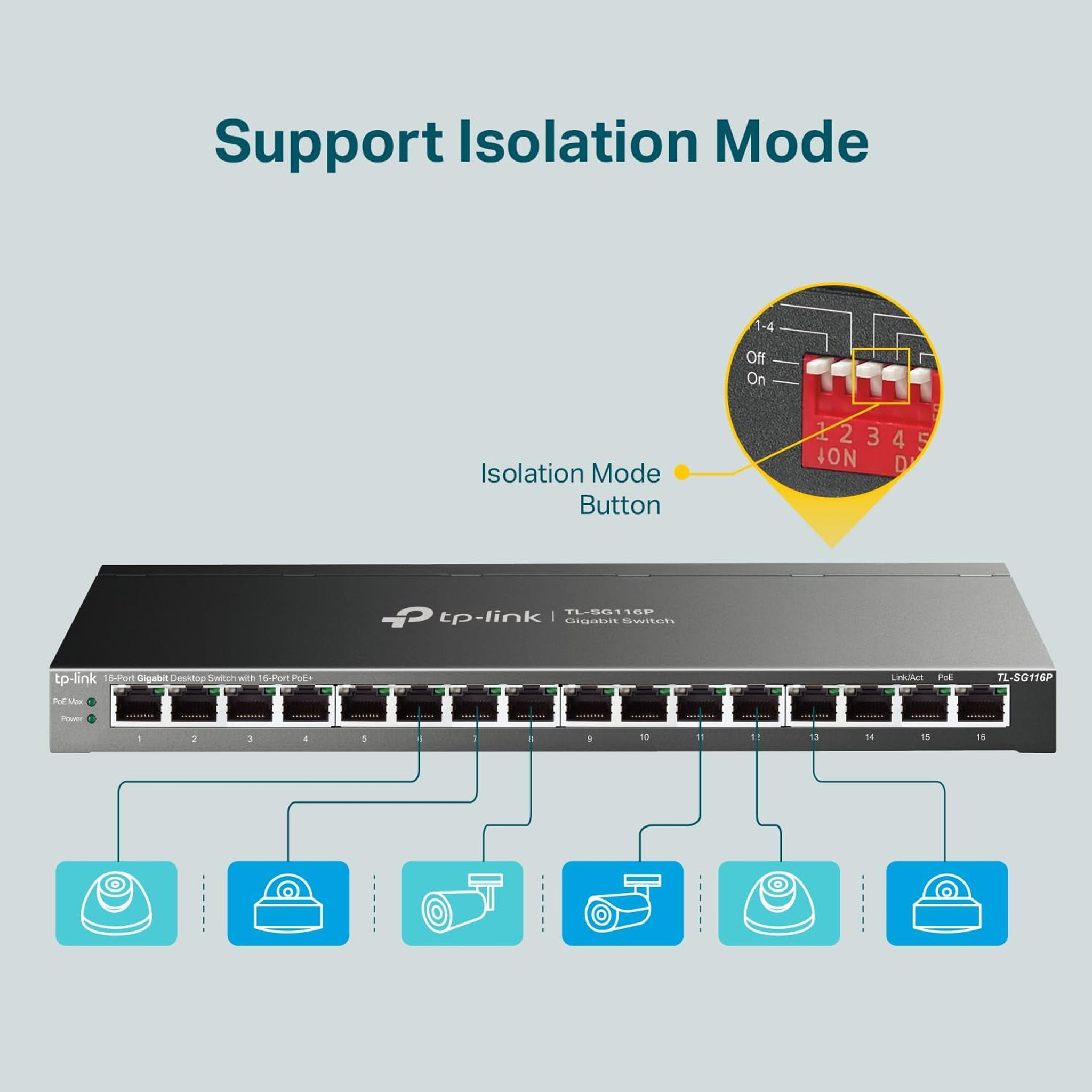

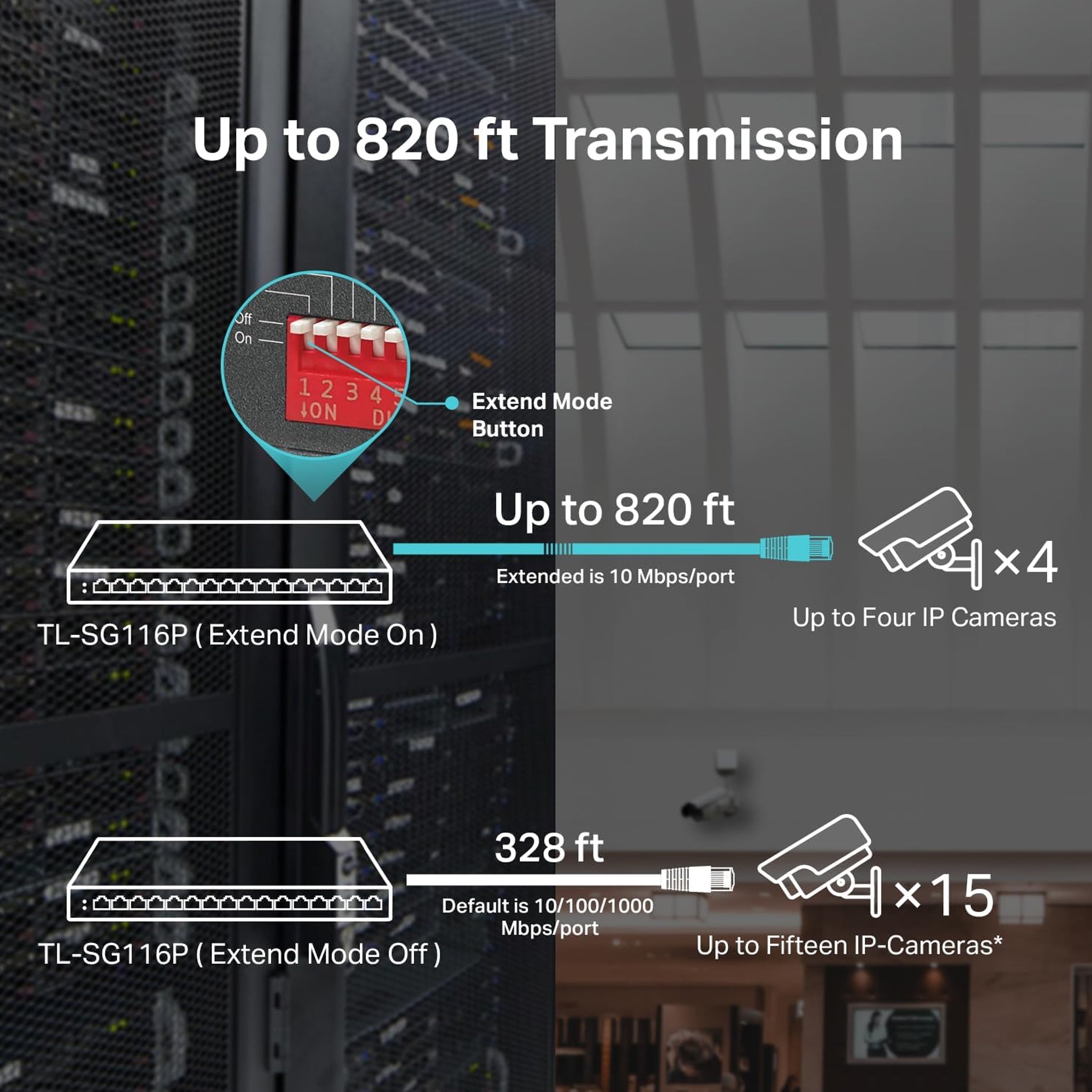

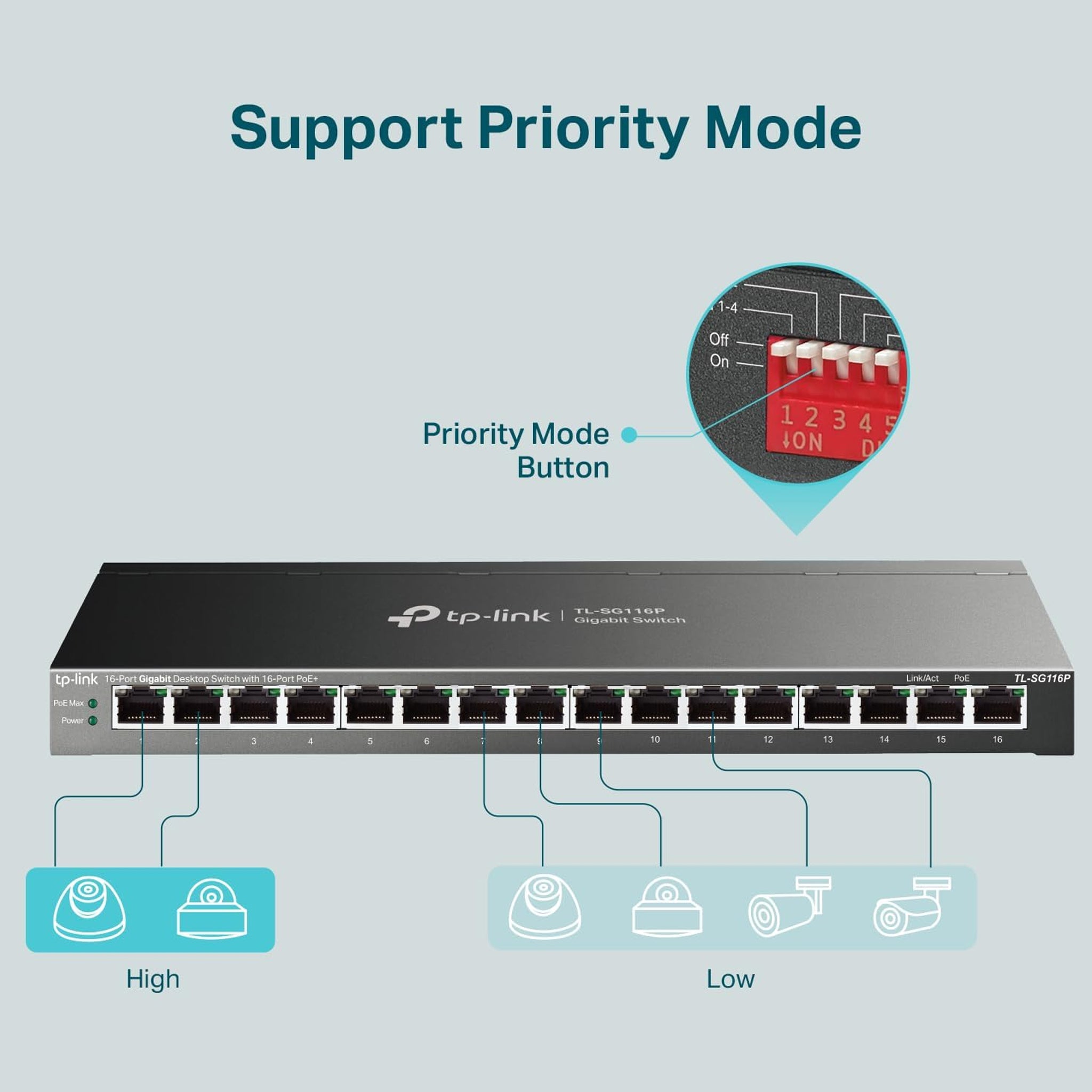

The TP-Link TL-SG116P is a 16-port Gigabit switch, each port supporting PoE+ (IEEE 802.3af/at) with a total power budget of 120W. It features Extend Mode for up to 250m transmission, Priority Mode for critical devices, Isolation Mode for enhanced security, and PoE Auto Recovery for automatic rebooting of unresponsive devices. Its fanless design ensures silent operation, making it ideal for offices and surveillance setups.
Technical Specifications:
Specification | Details |
---|---|
Model | TL-SG116P |
Ports | 16× 10/100/1000 Mbps RJ45 |
PoE Standard | IEEE 802.3af/at |
PoE Ports | All 16 ports are PoE+ |
PoE Power Budget | 120W total, up to 30W per port |
Switching Capacity | 32 Gbps |
Forwarding Rate | 23.8 Mpps |
MAC Address Table | 8K entries |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 10 KB |
Advanced Features | Extend Mode, Priority Mode, Isolation Mode, PoE Auto Recovery |
Mounting | Desktop or wall-mountable |
Dimensions (W×D×H) | 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm) |
Power Consumption | Max 144.28W (with 120W PD connected) |
Operating Temperature | 0–40°C (32–104°F) |
Storage Temperature | -40–70°C (-40–158°F) |
Operating Humidity | 10–90% RH non-condensing |
Storage Humidity | 5–90% RH non-condensing |
Certifications | FCC, CE, RoHS |
Package Contents | TL-SG116P Switch, Power Adapter, Installation Guide |

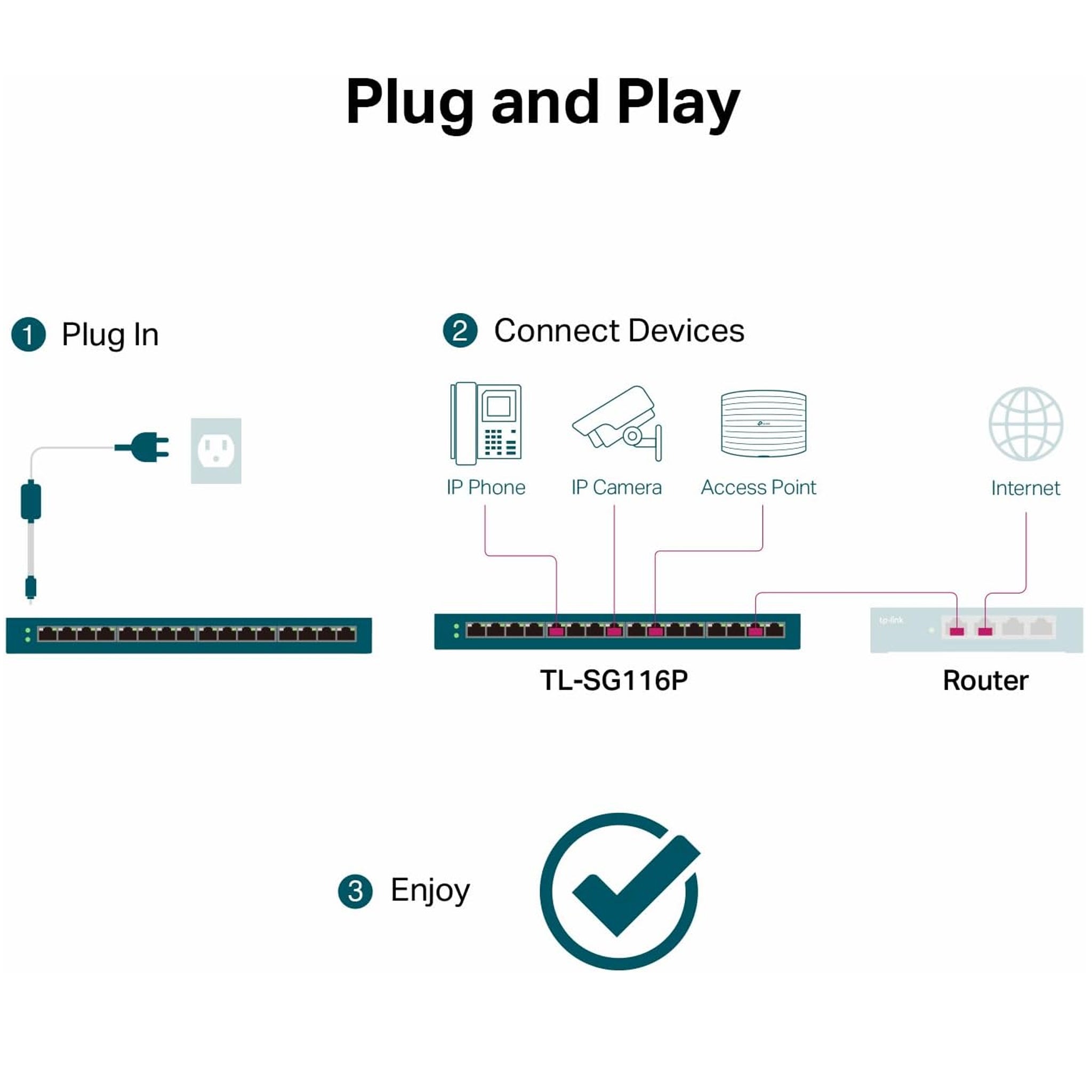

This switch is ideal for expanding networks with PoE devices like IP cameras, access points, and VoIP phones, offering reliable performance without the need for complex configuration.
What do customers say?
Customers find the network switch to be rock solid and easy to install, describing it as plug-and-play. They appreciate its functionality, with customers noting it has never failed, and its suitability for home office TCP/IP needs. They like its power capabilities, with one mentioning it powers 4 IP cameras effectively, and consider it good value for money.
