12V-24V IP65 Waterproof Rocker Switch Box - Blue LED
12V Waterproof Rocker Switch Box with Blue LED

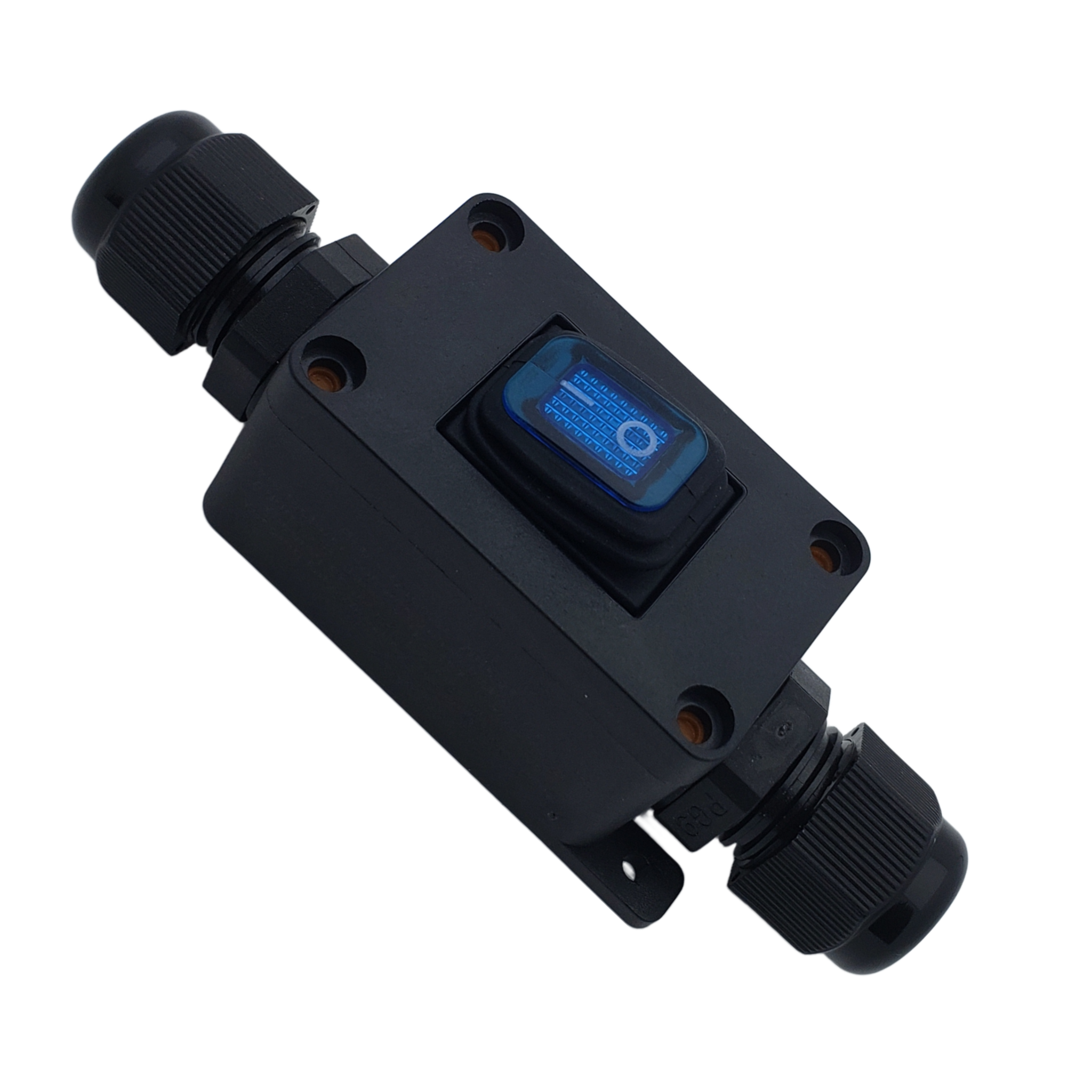

This compact 12V waterproof rocker switch combines a rugged electrical junction box with a built-in KCD1 round illuminated switch. Designed for 12V to 24V DC systems, the maintained ON-OFF switch features a bright blue LED that provides at-a-glance power status for automotive, marine, RV, solar, outdoor lighting, and industrial control applications.

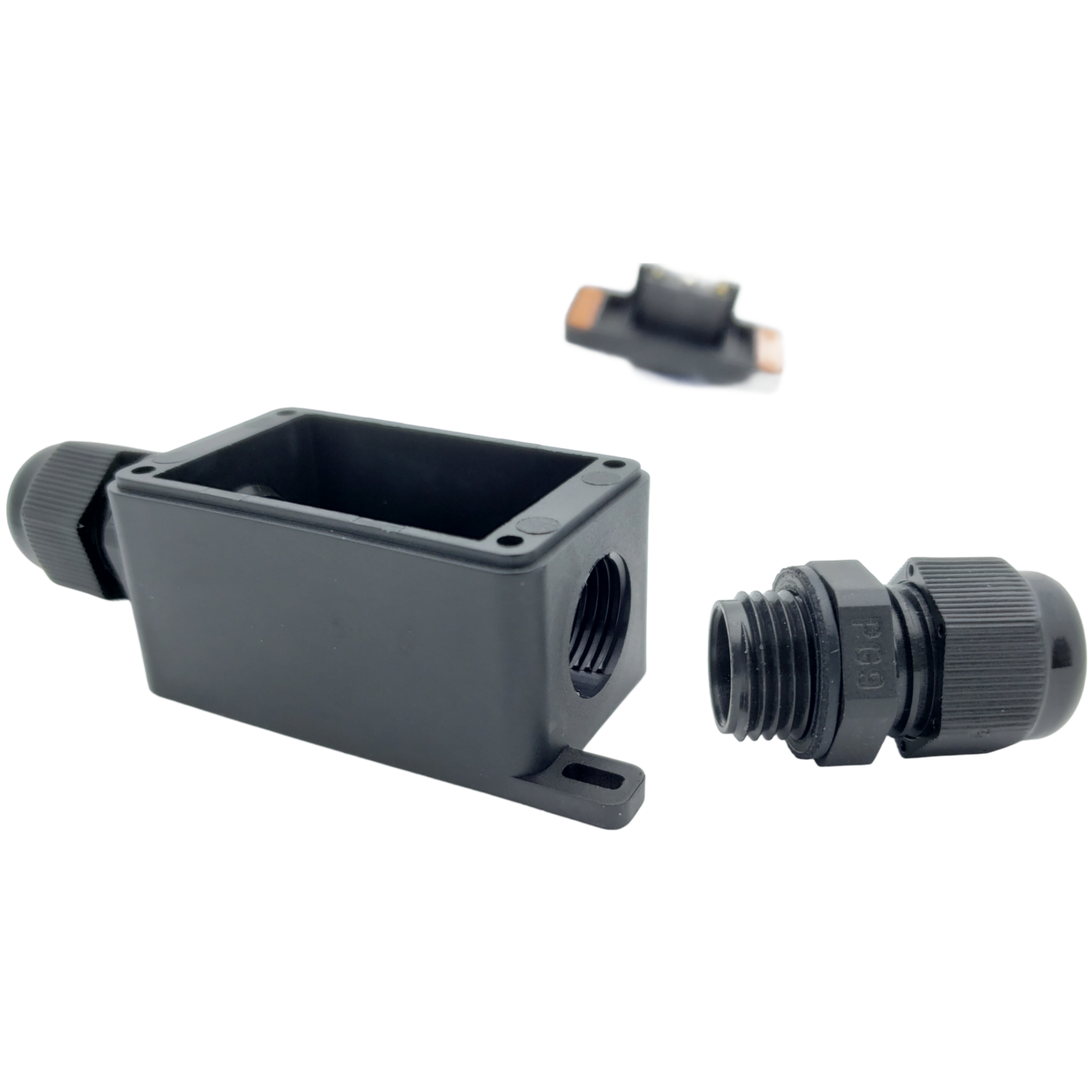

The enclosure uses high-impact PA66/ABS plastic, a durable polycarbonate light guide, and a high-grade rubber gasket for dependable environmental protection. Two PG9 waterproof cable glands provide single-input and single-output cable routing, creating a clean and protected line-in/line-out wiring installation.
IP65 Waterproof Switch Box for Low-Voltage Control
The IP65 waterproof switch box is dust-tight and protected against low-pressure water jets from any direction. This makes it well suited for outdoor lighting, landscape lighting, equipment controls, RV electrical systems, and protected marine installations where wiring may be exposed to dust, spray, or changing weather conditions.
The blue LED is designed for 12V to 24V DC operation, making this version ideal for low-voltage automotive, RV, marine, and off-grid solar systems. The illuminated actuator makes it easy to confirm switch status in dark equipment compartments, cabins, control areas, and outdoor installations.
Blue LED ON-OFF Rocker Switch

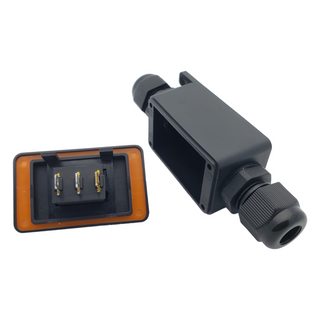

The built-in blue LED rocker switch uses a maintained SPST ON-OFF action. Press the actuator once to turn the connected circuit on, and press it again to turn the circuit off. Three screw terminals support line-in, line-out, and illuminated indicator wiring.

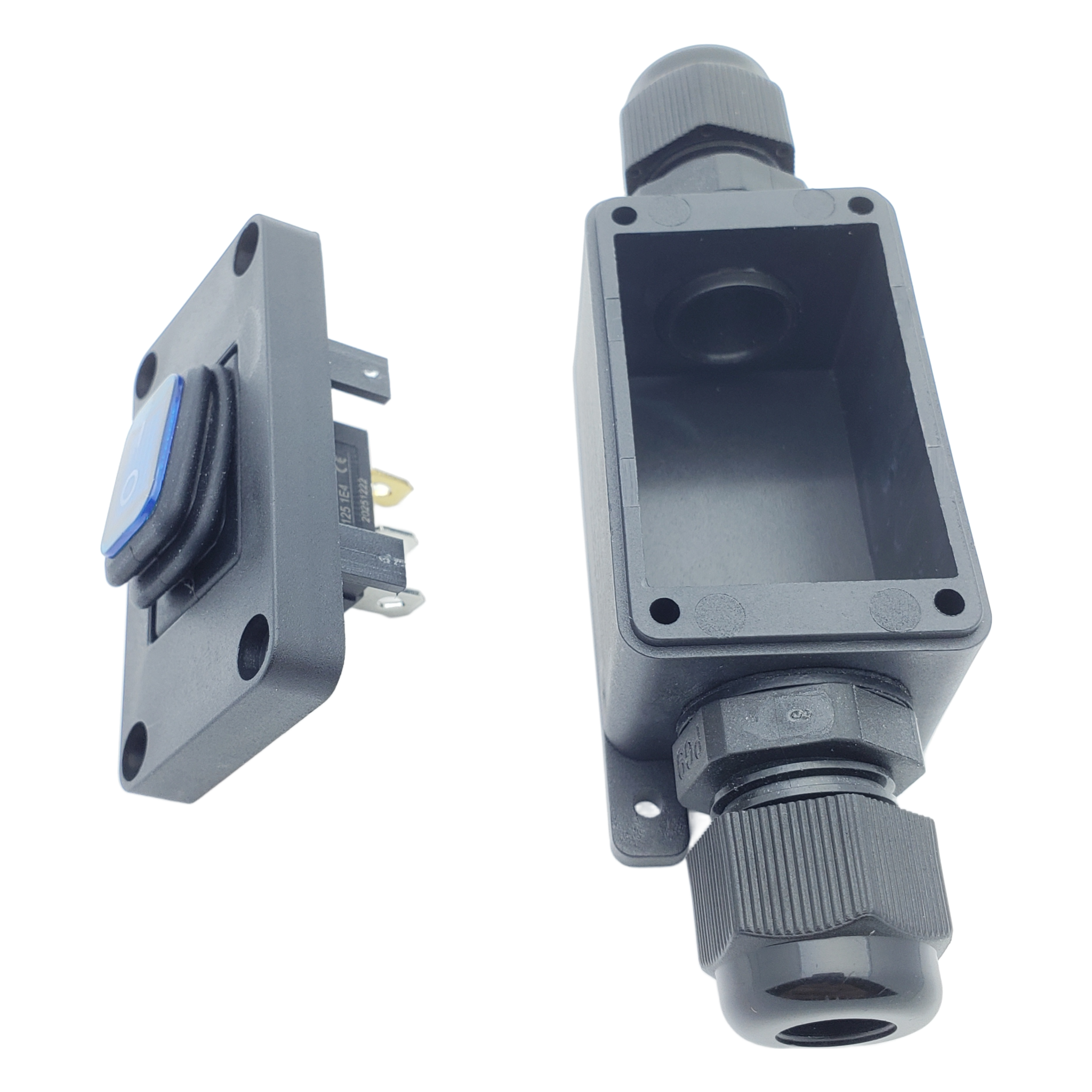

Silver alloy AgCdO contacts provide reliable electrical switching, while H62 brass terminal pins offer durable conductor connections. The round KCD1 switch uses a snap-in installation system, so no separate screws are required to secure the switch in the enclosure.
Want to add a different color switch or need a replacement?
These 12V switches all fit this box:
Waterproof Rocker Switch Applications
This 12V and 24V waterproof rocker switch box provides a convenient enclosed control point for a variety of low-voltage electrical systems, including:
- Outdoor lighting and landscaping - Control pathway lights, garden lights, and other low-voltage exterior loads.
- RV power distribution - Operate cabin lighting, auxiliary equipment, pumps, and accessory circuits.
- Marine electrical systems - Control bilge pumps, cabin lights, and other 12V or 24V onboard equipment in protected locations.
- Off-grid solar systems - Add local ON-OFF control for low-voltage solar loads and accessories.
- Automotive installations - Switch auxiliary lights, equipment, and DC accessories.
- Industrial machinery - Create a compact local start/stop or equipment control box when compatible with the control circuit.
12V Waterproof Rocker Switch Specifications
| Specification | Value |
|---|---|
| Model / MPN | WB5-2T-D112 |
| Product Type | Waterproof electrical junction box with illuminated round rocker switch |
| Illumination | Blue LED |
| LED Operating Voltage | 12V to 24V DC |
| Switch Type | SPST, maintained ON-OFF |
| Switch Style | KCD1 round rocker switch |
| Terminals | 3-pin screw-terminal connection for line-in and line-out wiring |
| Electrical Rating | 30A at 250VAC / 18A at 125VAC |
| Protection Rating | IP65 - dust-tight and protected against low-pressure water jets from any direction |
| Cable Entry | Two PG9 waterproof cable glands - single input and single output |
| Enclosure Material | PA66/ABS high-impact plastic |
| Light Guide Material | Polycarbonate (PC) |
| Waterproof Seal | High-grade rubber gasket |
| Contact Material | Silver alloy (AgCdO) |
| Terminal Pin Material | H62 brass |
| Contact Resistance | ≤50 milliohm |
| Insulation Resistance | ≥100 megohm at 500VDC |
| Dielectric Strength | 1500VAC |
| Electrical Life | 10,000 cycles |
| Operating Temperature | -40°C to +125°C (-40°F to +257°F) |
| Switch Installation | Snap-in mounting - no switch mounting screws required |
| Certifications and Compliance | UL, CE, RoHS, VDE, SGS, ISO9001 |
| Approximate Weight | 0.15 lb (2.4 oz) |
Compact 12V to 24V DC Waterproof Switch Solution
With its integrated enclosure, blue status LED, PG9 cable glands, and durable internal contact materials, this waterproof electrical box with rocker switch simplifies the installation of a protected ON-OFF control point. Its compact format and broad operating temperature range make it a practical choice for professional low-voltage wiring in automotive, marine, RV, landscaping, solar, and industrial systems.
