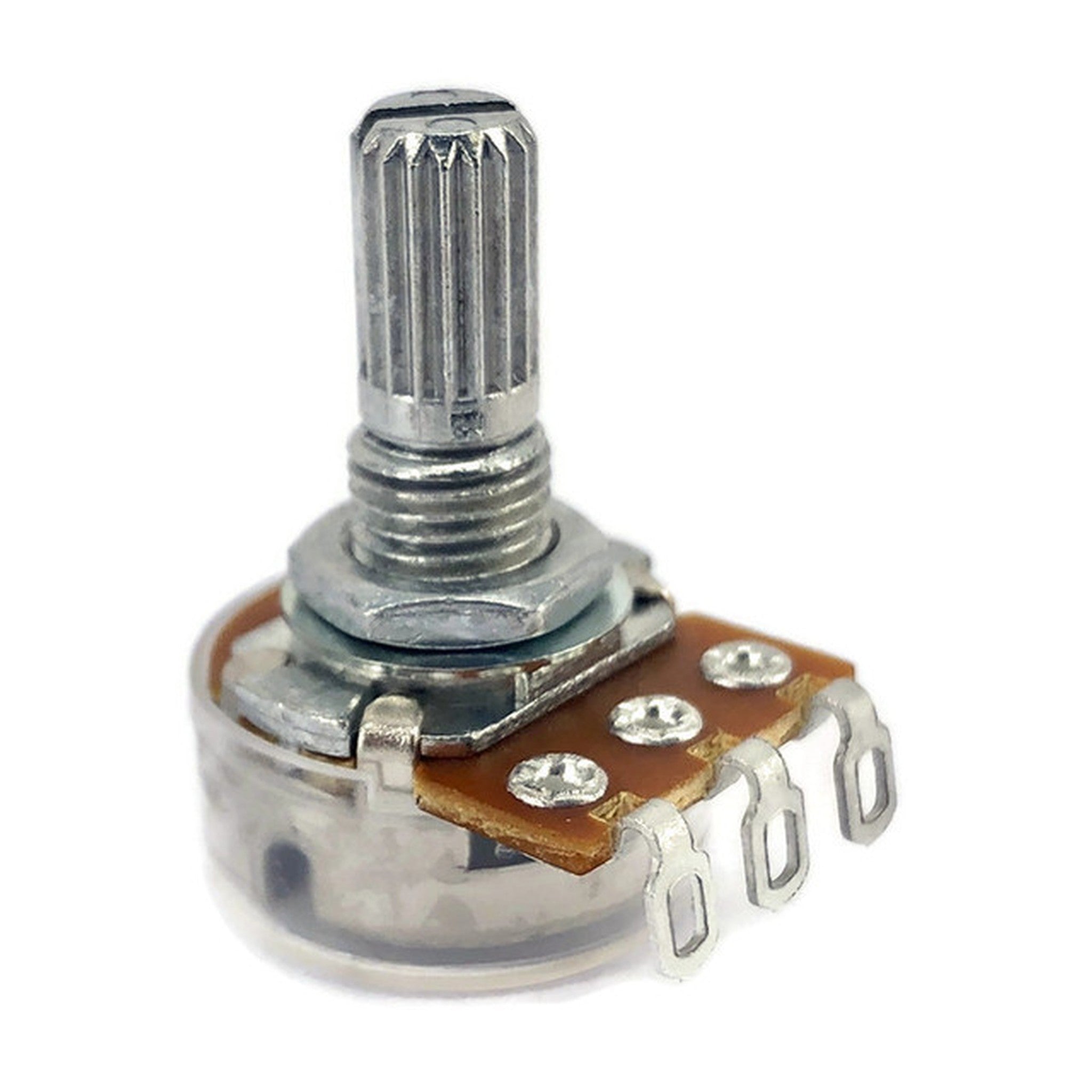

10k Ohm 0.1W Linear Taper Potentiometer with Solder Lugs
10k Ohm 0.1W Linear Taper Potentiometer with Solder Lugs
The ALPHA 10k ohm linear taper potentiometer is one of the most popular and useful control values in electronics. Its compact 17mm body makes it a go-to part for panels, breadboards, and countless DIY builds.
With a Type B linear taper, this 10k ohm potentiometer changes resistance evenly as you turn it, which is exactly what most general purpose adjustment and voltage divider circuits need.
The Popular 10k Ohm Potentiometer for DIY Projects
A 10k ohm linear pot is a favorite for voltage dividers, microcontroller and Arduino analog inputs, brightness and level controls, and everyday prototyping. The solder lug terminals wire up easily with standard hookup wire.
Fits Standard Panels and Knobs
The threaded bushing and mounting nut let this 10k potentiometer mount in most enclosures, and the knurled T18 spline shaft accepts common push-on knobs.
Easy to Use for Beginners and Pros
Reliable and simple to wire, this 10k ohm linear potentiometer (Vetco SKU TEA-5654) is a great choice for learning, prototyping, and equipment repair alike.
10k Ohm Linear Potentiometer Specifications
| Resistance | 10k ohms |
|---|---|
| Taper | Linear, Type B |
| Power Rating | 0.1 W |
| Manufacturer | ALPHA |
| Manufacturer Designation | B10K 17mm |
| Terminal Type | Solder lugs |
| Rotation | 300 degrees, plus or minus 5 degrees |
| Compliance | RoHS compliant |
Shaft and Panel Mounting Dimensions
| Shaft Diameter | 6mm, 0.24 inch |
|---|---|
| Shaft Style | Knurled T18 spline |
| Total Shaft Length | 17mm, 0.67 inch |
| Shaft Above Thread | 10.5mm |
| Thread Length | 6.5mm, 0.26 inch |
| Recommended Mounting Hole | 7.5mm, 0.30 inch |
| Base Diameter | 16mm, 0.63 inch |
| Mounting Style | Nut mounted |
| Knob Compatibility | Fits most standard knobs designed for a 6mm T18 spline shaft |
Compact 17mm ALPHA Potentiometer
Built by ALPHA and marked B10K, this 17mm potentiometer packs dependable performance into a small, panel-friendly size.
