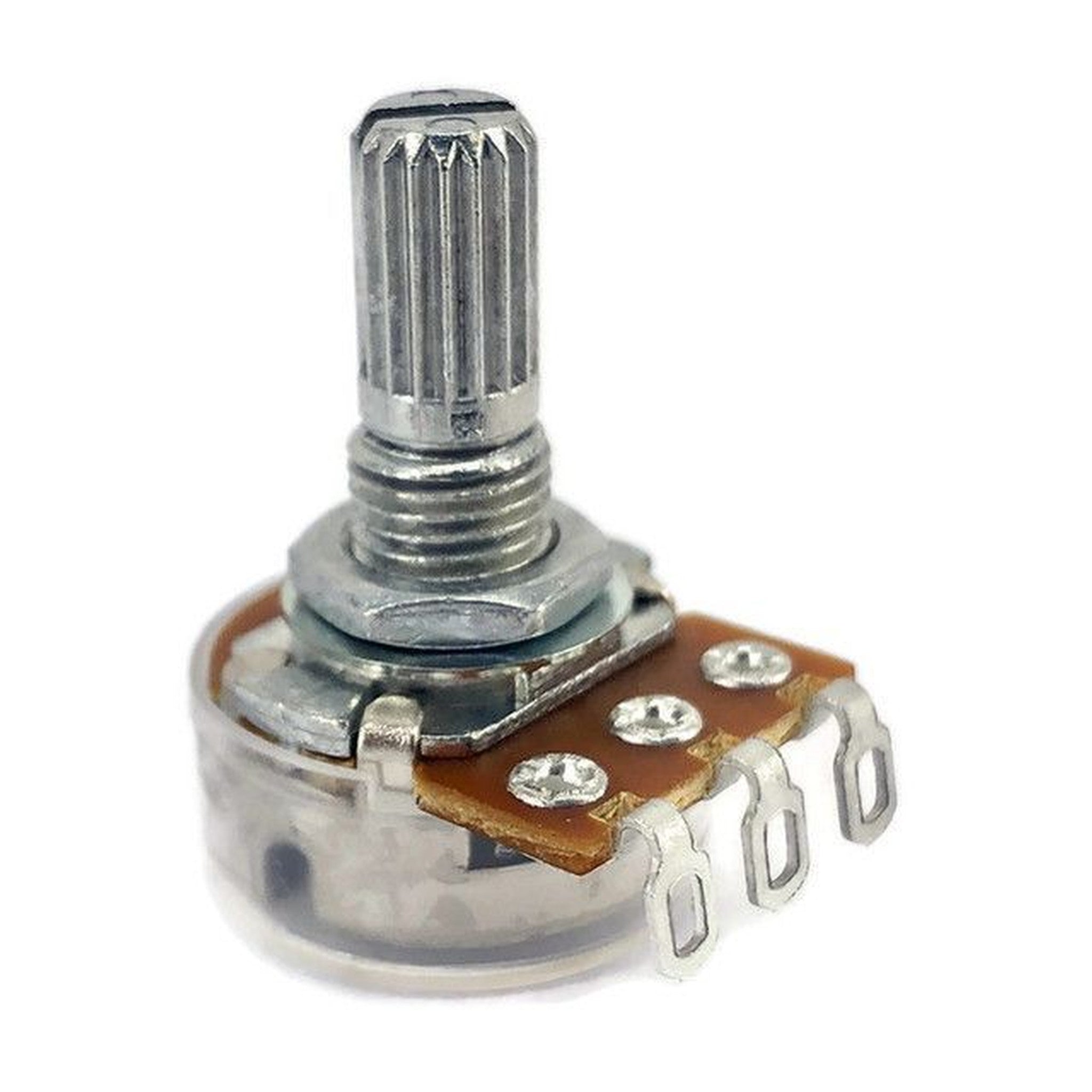

100k Ohm 0.1W Linear Taper Potentiometer with Solder Lugs
100k Ohm 0.1W Linear Taper Potentiometer with Solder Lugs
This ALPHA 100k ohm linear taper potentiometer is a versatile high-impedance control for audio, effects, and sensitive circuits. Its compact 17mm body fits easily into panels, pedals, and project enclosures.
A Type B linear taper changes resistance evenly across the turn, so the 100k ohm setting moves in a smooth, predictable way from one end to the other.
High-Impedance 100k Ohm Potentiometer
A 100k ohm linear pot is well suited to tone and level controls, op-amp feedback, and high-impedance inputs where a larger resistance is needed. The solder lug terminals wire up quickly.
Standard Panel Mounting and Knobs
The threaded bushing, mounting nut, and knurled T18 spline shaft let this 100k potentiometer install in common panels and accept most push-on control knobs.
Handy for Effects, Audio, and DIY
Smooth and easy to use, this 100k ohm linear potentiometer (Vetco SKU TEA-5621) is a favorite for pedal builders, audio tinkerers, and electronics hobbyists.
100k Ohm Linear Potentiometer Specifications
| Resistance | 100k ohms |
|---|---|
| Taper | Linear, Type B |
| Power Rating | 0.1 W |
| Manufacturer | ALPHA |
| Manufacturer Designation | B100K 17mm |
| Terminal Type | Solder lugs |
| Rotation | 300 degrees, plus or minus 5 degrees |
| Compliance | RoHS compliant |
Shaft and Panel Mounting Dimensions
| Shaft Diameter | 6mm, 0.24 inch |
|---|---|
| Shaft Style | Knurled T18 spline |
| Total Shaft Length | 17mm, 0.67 inch |
| Shaft Above Thread | 10.5mm |
| Thread Length | 6.5mm, 0.26 inch |
| Recommended Mounting Hole | 7.5mm, 0.30 inch |
| Base Diameter | 16mm, 0.63 inch |
| Mounting Style | Nut mounted |
| Knob Compatibility | Fits most standard knobs designed for a 6mm T18 spline shaft |
Compact 17mm ALPHA Potentiometer
Built by ALPHA and marked B100K, this 17mm potentiometer offers dependable high-impedance control in a small footprint.
