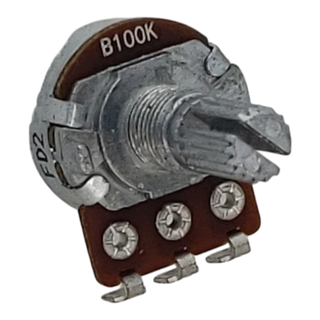

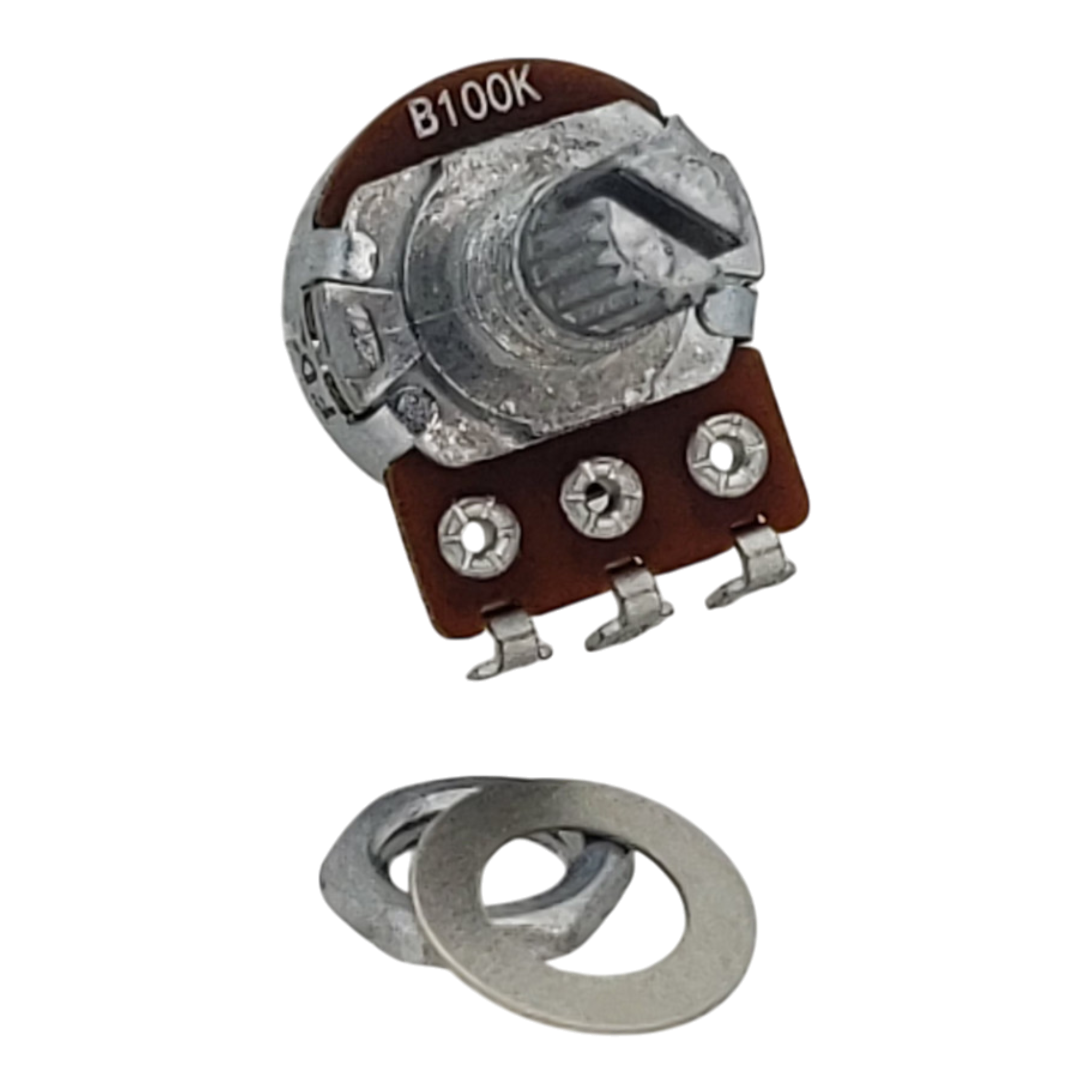

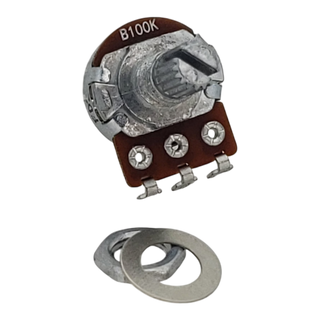

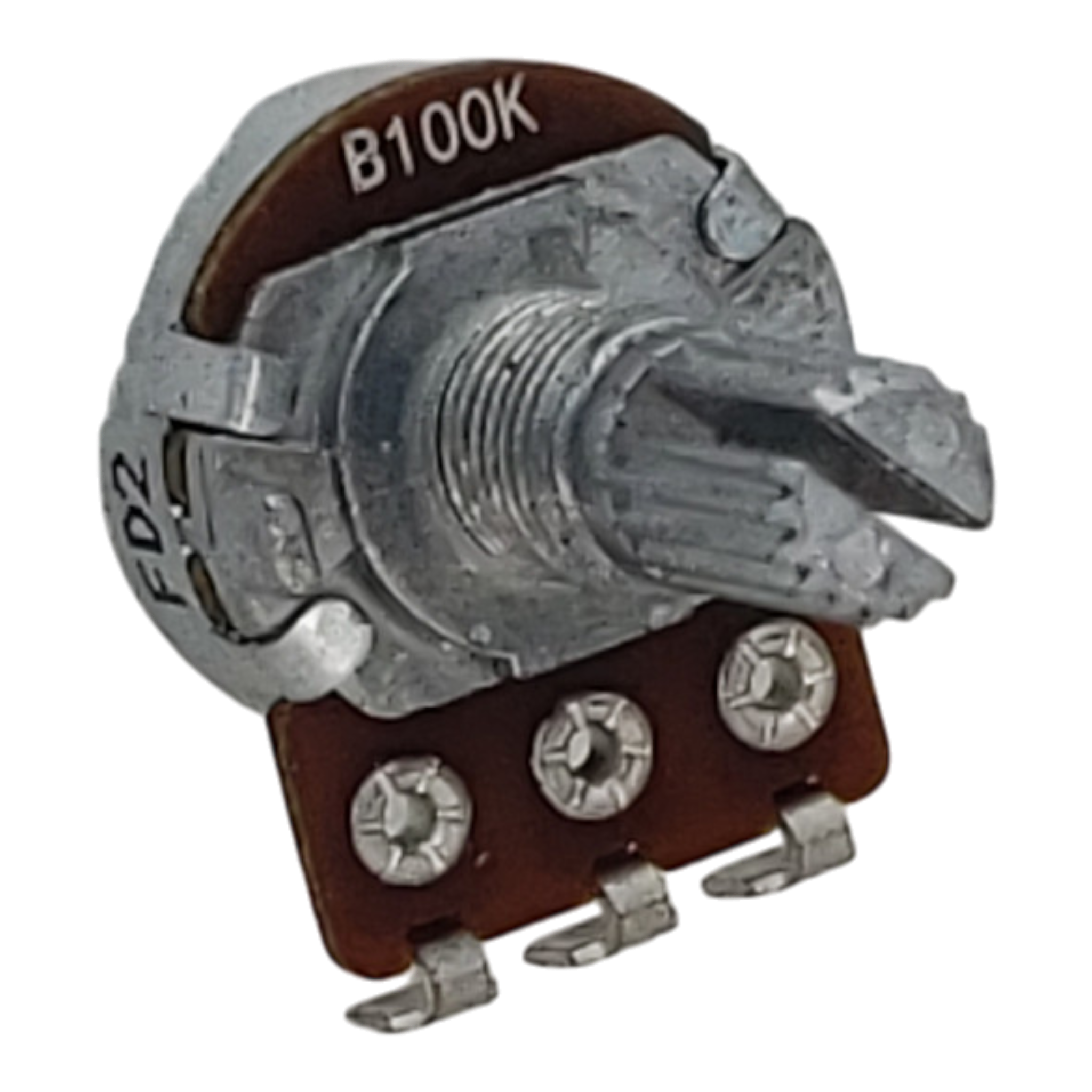

100K Linear 1/8W Potentiometer with Split Splined Shaft
100K Linear 1/8W Potentiometer with Split Splined Shaft
This 100K linear taper potentiometer is a useful adjustable control for electronics repairs, audio circuits, DIY projects, control panels, and custom builds. The linear taper changes resistance evenly as the shaft turns, giving smooth and predictable adjustment across the control range.
The solder lug terminals make this potentiometer easy to wire by hand, while the 6mm split splined shaft fits many standard push-on knobs. It is a good option for panel-mounted controls and replacement jobs where a compact 17mm potentiometer is needed.
100K Linear Potentiometer for Controls and Repairs
A 100K potentiometer is useful in many signal-level and low-power circuits. It can be used for adjustable resistance, voltage divider circuits, audio projects, test fixtures, and general control applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Alpha |
| Manufacturer Part Number | B100K 17mm |
| Resistance | 100K ohm |
| Taper | Linear, Type B |
| Power Rating | 0.125W |
| Adjustment Type | Top adjustment |
| Terminals | Solder lugs |
| Shaft Type | Split splined / knurled shaft |
| Shaft Diameter | 6mm |
| Shaft Length | 17mm total, 10.5mm + 6.5mm |
| Thread Length | 6.5mm |
| Mounting Hole | 7.5mm |
| Base Diameter | 16mm |
| Rotation Angle | 300° ± 5° |
| RoHS | Yes |
| Vetco SKU | TEA-1958 |
Why Vetco Carries This Potentiometer
Vetco carries 100K linear potentiometers because they are common, useful parts for electronics builders and repair customers. This solder lug version is easy to install, works with standard knobs, and is a practical part to keep on hand for control and adjustment circuits.
