100A DC Volt Amp Watt Meter with External Shunt 6.5V -to- 99.99V DC
100A DC Power Meter with External Shunt
Monitor your DC electrical system at a glance with this compact DC power meter. The easy-to-read digital display simultaneously shows voltage, current, power in watts, and accumulated energy in Wh or kWh, so you can quickly see how your system is performing.
This 100A DC watt meter works with DC circuits from 6.5 to 100 VDC and measures loads up to 100 A or 10,000 W. An external 100A DC current shunt is included for current measurement.

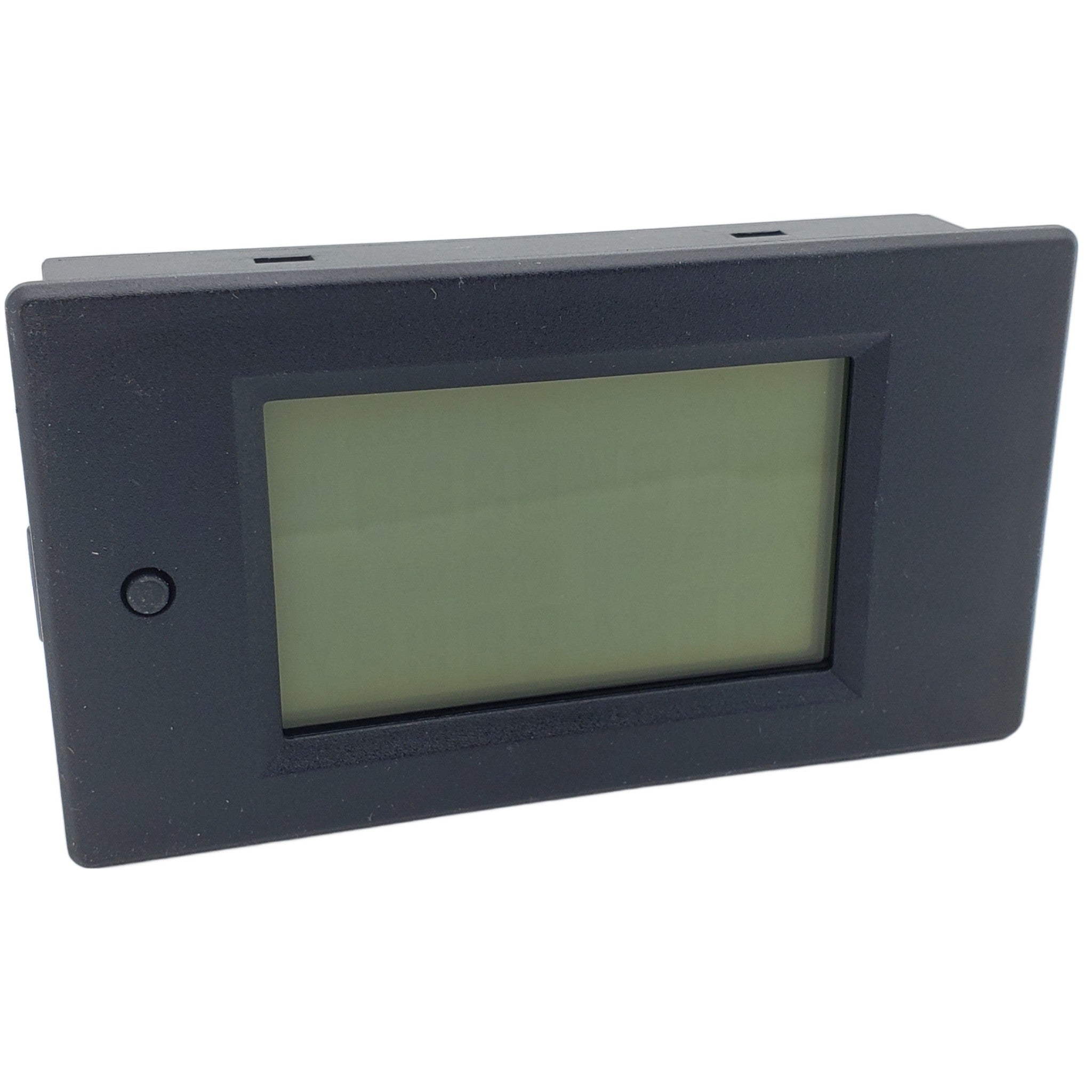

DC Volt Amp Watt Meter for Everyday Power Monitoring

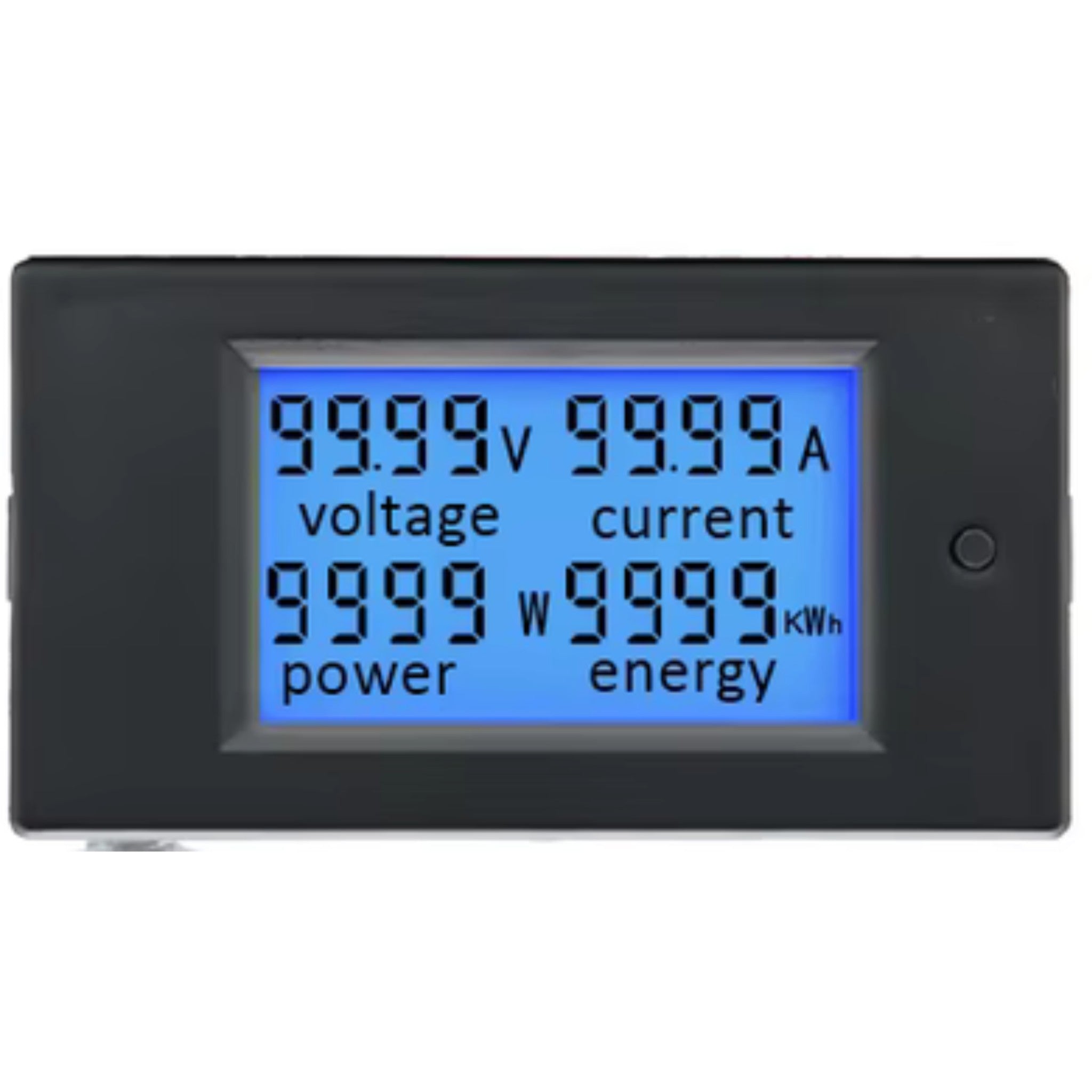

Instead of using separate meters, this digital DC volt amp watt meter provides four useful measurements on one display. Check battery voltage, view current draw, monitor real-time wattage, and track accumulated energy use without switching between screens or tools.
The compact panel design is a practical choice for permanent installation in RV electrical panels, off-grid systems, project enclosures, workbenches, and other low-voltage DC applications.
100A Battery Power Meter for Solar, RV, and Off-Grid Systems
Use this battery power meter to monitor solar panels, battery banks, and 12V, 24V, or 48V power systems. It is also useful for DC power supplies, e-bike battery packs, EV battery systems, and bench power monitoring.
With a measurement range of up to 100 VDC and 100 A, it makes it easier to track charging performance, connected loads, current consumption, and total energy usage.
DC Energy Meter with Wh and kWh Tracking
The built-in DC energy meter records accumulated power consumption across a range of 0 to 9999 kWh. Energy below 10 kWh is displayed in watt-hours, while readings of 10 kWh and above are displayed in kilowatt-hours.
Real-time power is measured from 0 to 10 kW. Loads below 1 kW are shown with decimal resolution from 0.0 to 999.9 W. Higher loads are displayed from 1000 to 9999 W.

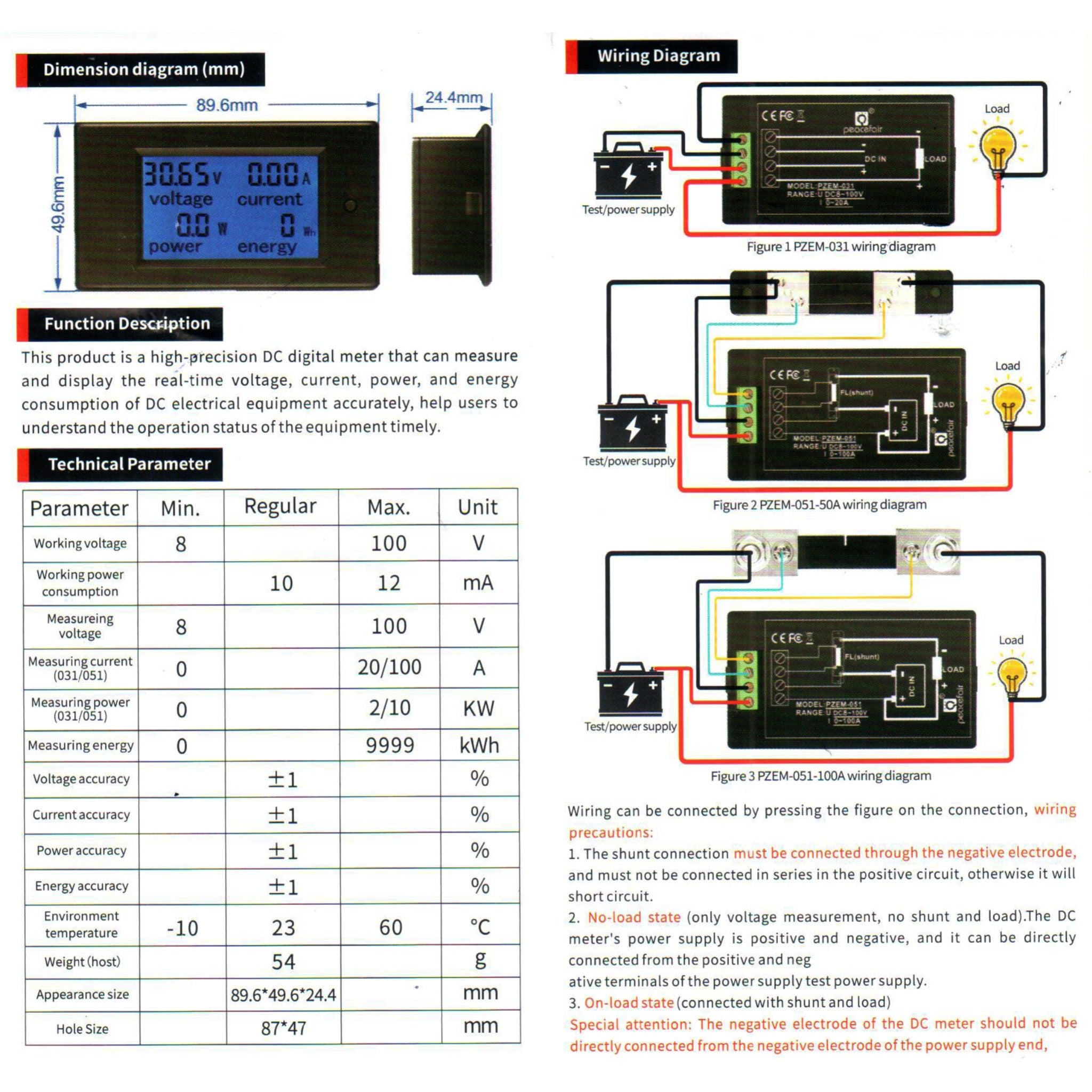

DC Panel Meter Measurement Ranges
| Measurement | Test Range | Display Range |
|---|---|---|
| Voltage | 6.5 to 100 VDC | 6.50 to 99.99 V |
| Current | 0 to 100 A | 0.00 to 99.99 A |
| Power | 0 to 10 kW | 0.0 to 999.9 W below 1 kW; 1000 to 9999 W at 1 kW and above |
| Accumulated Energy | 0 to 9999 kWh | 0 to 9999 Wh below 10 kWh; 10 to 9999 kWh at 10 kWh and above |
100V 100A DC Power Meter Specifications
| Meter Type | Digital DC voltage, current, power, and energy panel meter |
|---|---|
| Working Voltage | 6.5 to 100 VDC |
| Test Voltage | 6.5 to 100 VDC |
| Rated Current | 100 A |
| Rated Power | 10,000 W |
| Measurement Accuracy | Class 1.0 grade |
| Meter Dimensions | 50 x 90 x 25 mm (1.97 x 3.54 x 0.98 in) |
| Included Shunt | External 100A DC current shunt |
| MPN | DC051 |

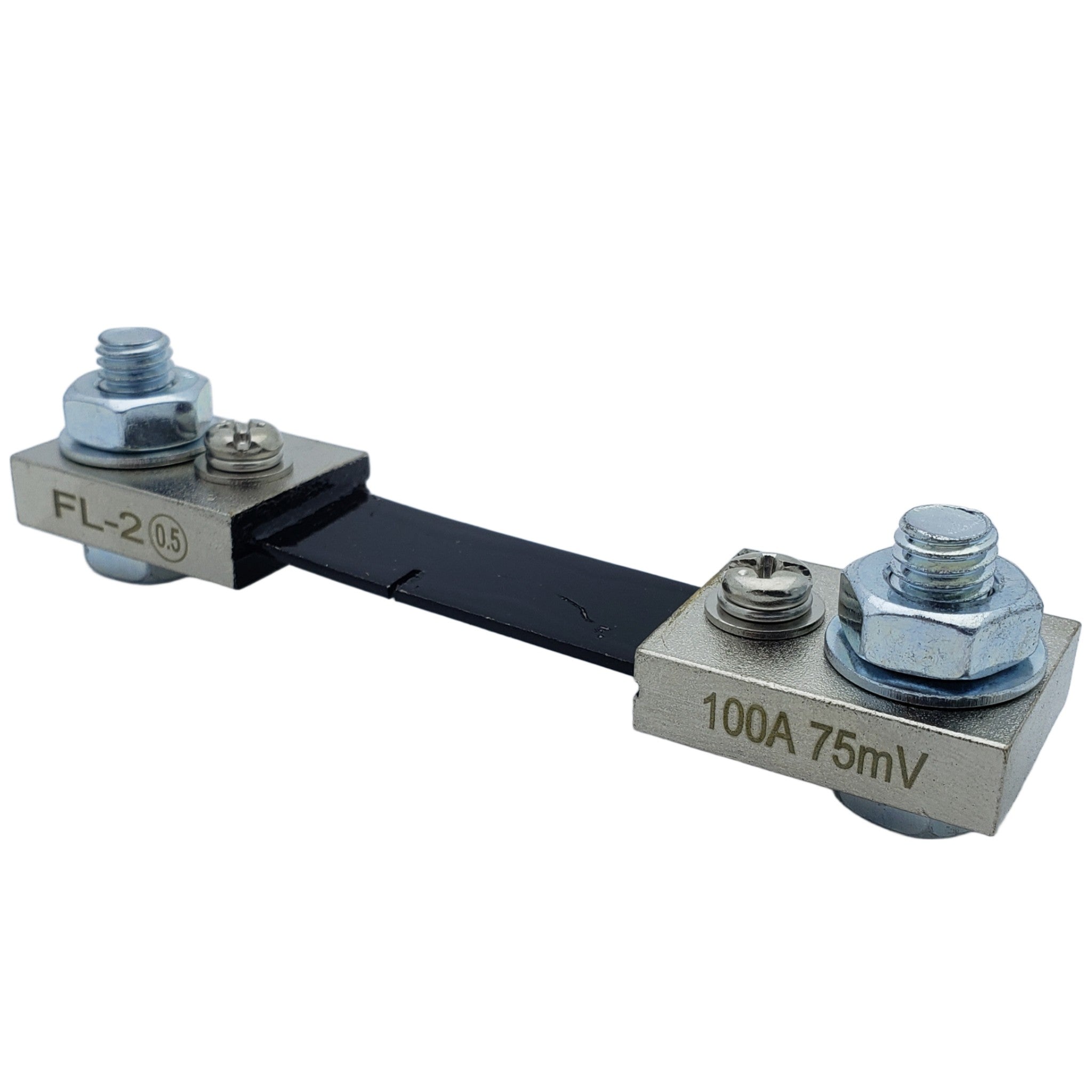

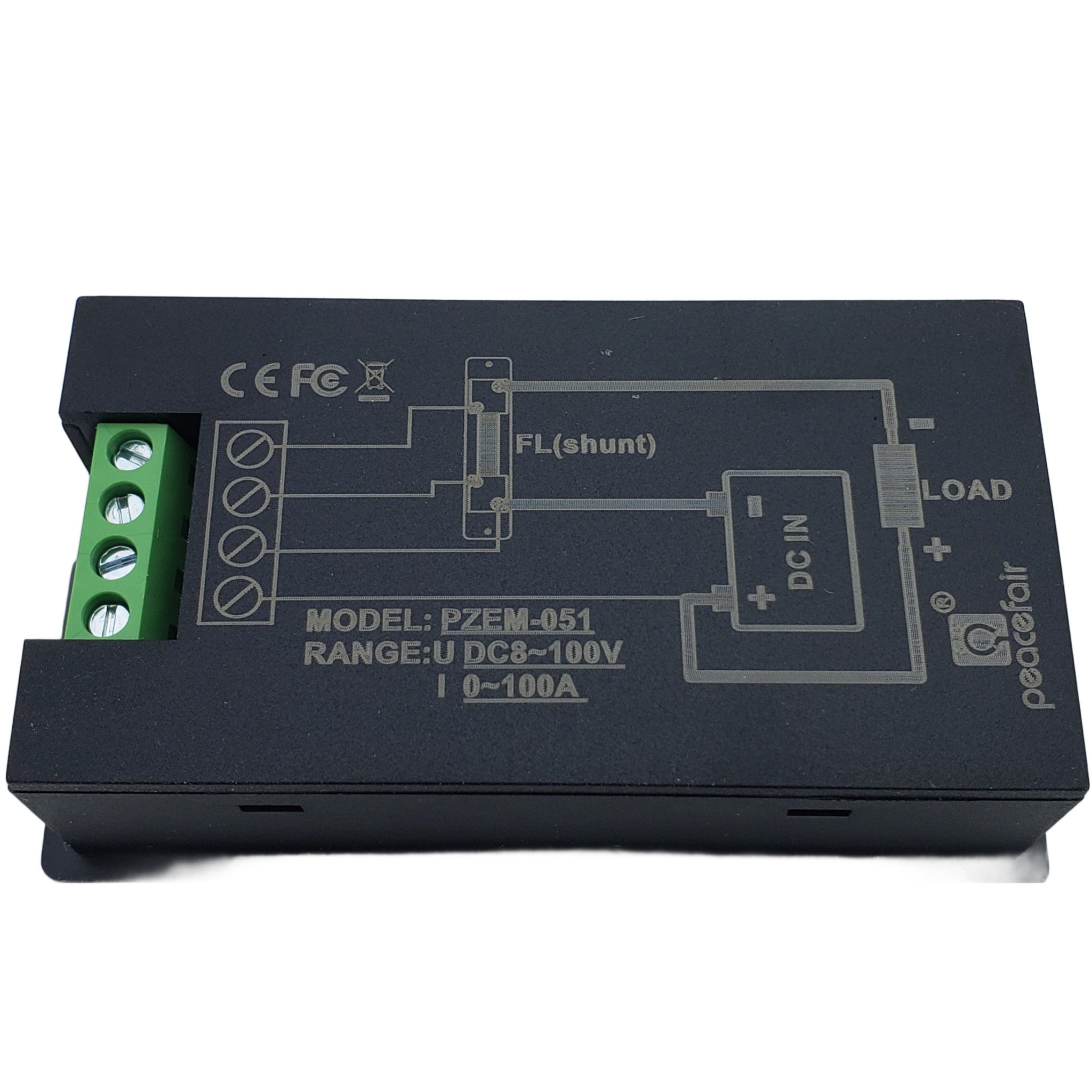

Compact DC Current Meter with Shunt
The included external shunt allows the DC current meter to measure high current without routing the full load through the compact display module. This makes the meter well suited for battery systems and other installations where space and clear power information are important.
For any compatible DC circuit where voltage, amperage, wattage, and accumulated energy need to be tracked at a glance, this 100A DC power meter with external shunt offers a convenient all-in-one monitoring solution.
