RG6/U Quad Shield Direct Burial / Outdoor Coax Cable Box of 1000'
RG6/U Quad Shield Direct Burial / Outdoor Coax Cable Box of 1000'
Wavenet Part Number: RG6QOSPBK2

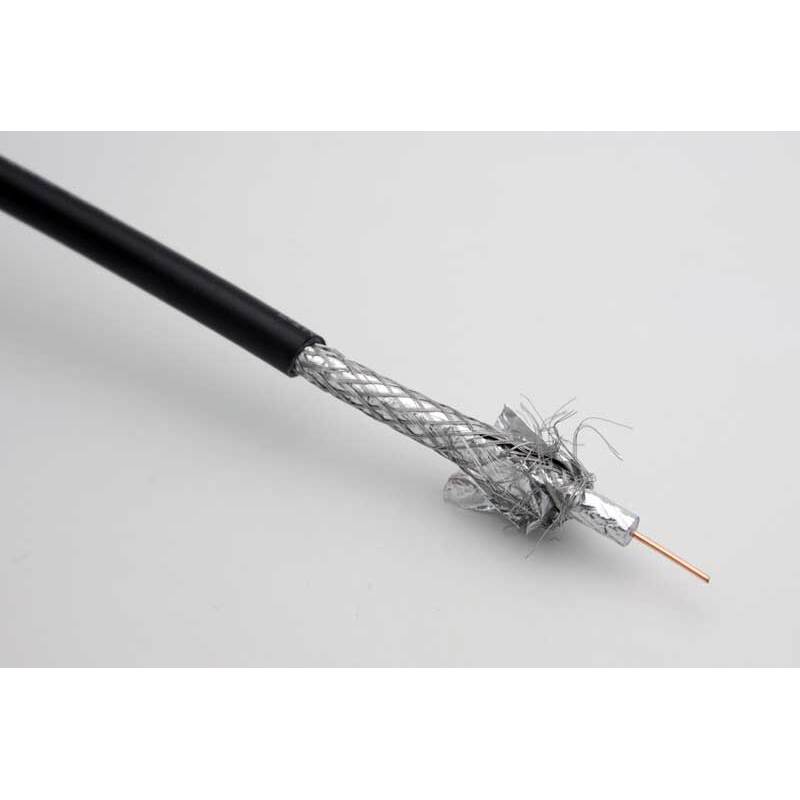

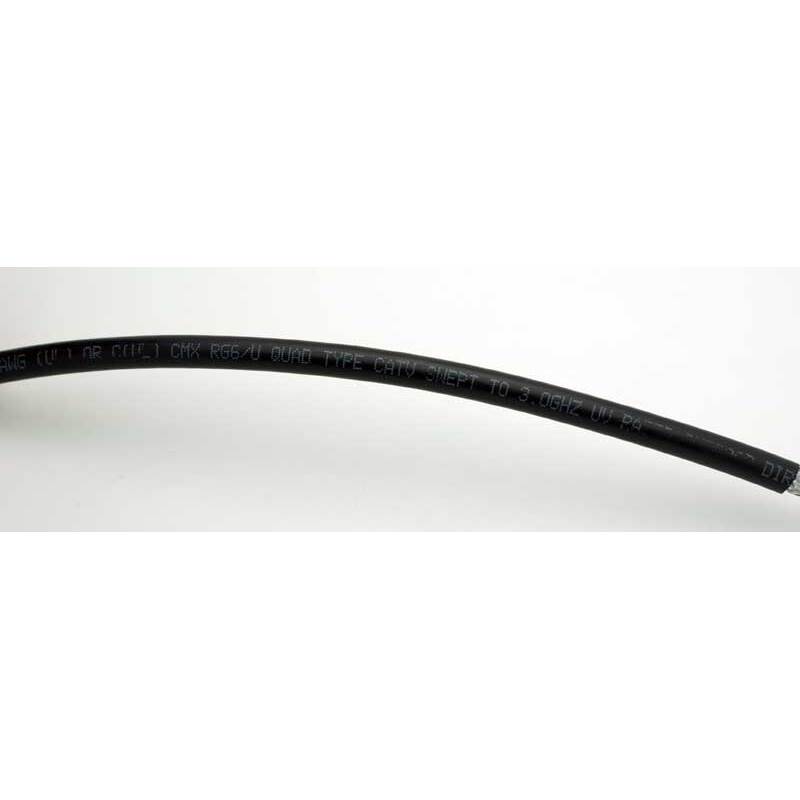

This is quality direct-burial rated RG6 Quad Shield Coax Cable. It is used for running Cable TV, Satellite TV, Video Surveillance, etc. outdoors and underground.
Specifications:
| Center Conductor AWG: | 18 AWG |
| Center Conductor Material: | Copper Coated Steel |
| Insulation: | Skin Foamed PE |
| Nom Thickness: | 0.070" |
| Insulation Diameter: | 0.180" |
| First Braid Shield: | Aluminum - 60% Coverage |
| Second Braid Shield: | Aluminum - 40% Coverage |
| Jacket: | Polyethylene |
| Cable Diameter: | 0.287" |
| Temperature Rating: | -20 to 60°C |
| Impedence: | 75 Ohm |
| Capacitance: | 15.5pF/ft |
| Conductor DCR@20°C: | 28.6 |
| Velocity Factor: | 0.84 |
| Frequency (MHz): | Nom dB/100 |
| 1MHz | 0.89dB |
| 10MHz | 2.66dB |
| 50MHz | 4.79dB |
| 100MHz | 6.72dB |
| 200MHz | 9.28dB |
| 400MHz | 13.28dB |
| 700MHz | 18.36dB |
| 900MHz | 20.43dB |
| 1000MHz | 21.61dB |
| 1200MHz | 23.67dB |
| 1450MHz | 26.03dB |
| 1800MHz | 28.98dB |
| 2200MHz | 32.03dB |
| 2400MHz | 32.83dB |
| 3000MHz | 27.88dB |
For full specs, please see the DATASHEET.
QTY: Sold by the box. Purchases by the foot are also available.
