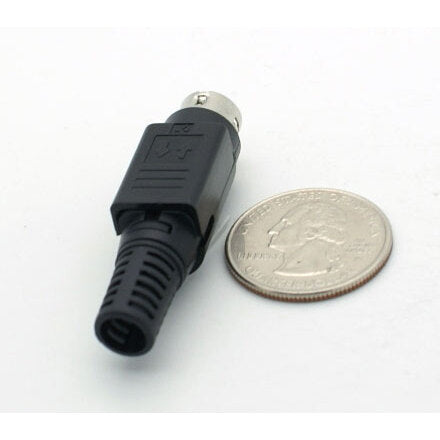

4 Pin Mini-Din Kycon Snap and Lock DC Power Connector
manufacturer: Kycon
manufacturer part number: KPPX-4P
Often referred to as "Power DIN" Plugs, this 4-Pin plug has larger pins and a slightly larger shell than a standard Mini-Din connector and is most often used for DC power supply connections.
Rated for 7.5A @ 20VDC.
Tin plated brass contacts.
The spring loaded outer shell functions as a release mechanism to separate the plug from the jack once mated. The plug has solder cups that will accept wire up to 18AWG. The illustrated assembly guide walks you through installing each of the 8 separate pieces that make up this plug.
