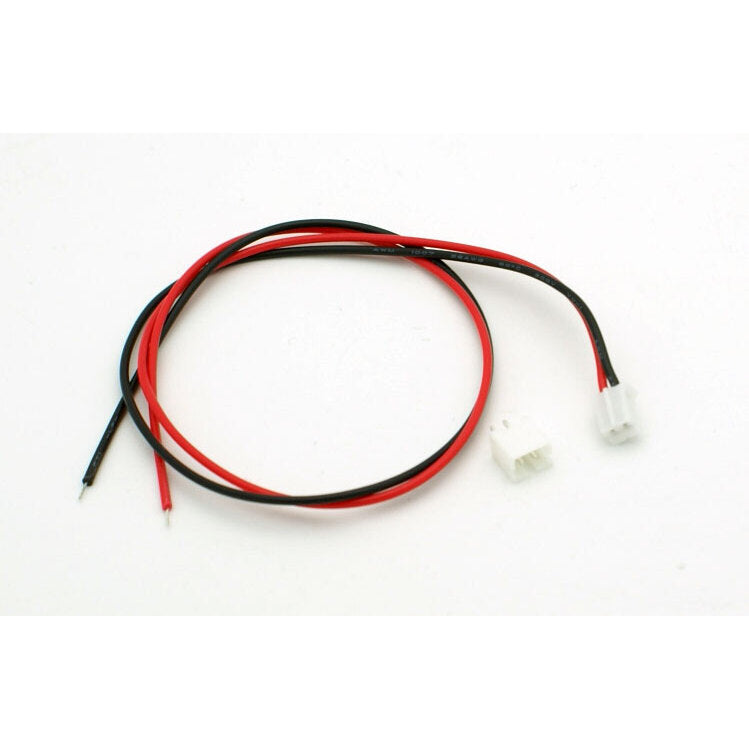

Commonly found on small rechargeable battery packs, RC receivers and transmitters, tiny cameras, and other small electronic devices. This set includes one female JST PH plug, pre-wired, and a male PCB mount JST jack.
Specifications:

• 2-Pin Female JST PH Plug
• 2-Pin Male JST PH PCB Mount Jack
• 2.0mm Spaced Pins on the male connector (standard board spacing is 2.54mm)
• 2 Amp Maximum
• Female Plug is pre-wired with 26AWG Wire 11 inch leads.
• Male board mount connector measures (external dimensions): 0.168 inches (4.73mm) x 0.238 inches (6.06mm) x 0.236 inches (6.00mm). This is STANDARD for JST-PH connectors.

Please note, you will always receive these connectors with leads that are at least 11 inches, but possibly longer. You can contact us any time for more information.

Looking for the 6 inch version?

QTY: 1 x Pair of 2-Pin JST PH Connectors (Male / Female with 11 inch leads)
