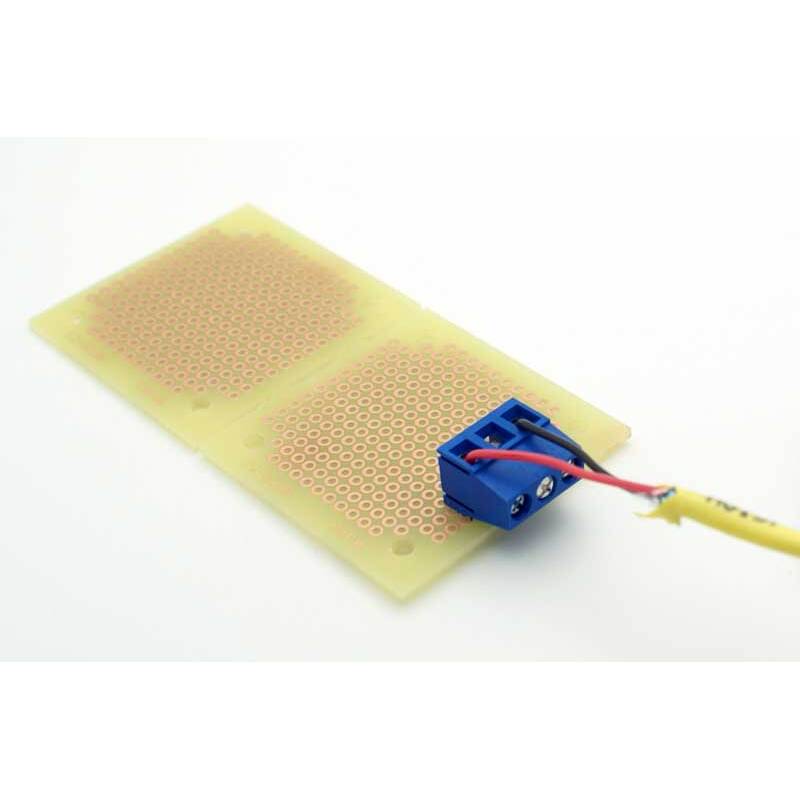

PC Board Mount Screw Terminal Block 90° - 3 Position (14-22AWG)
SKU: VUPN7844
manufacturer: Philmore
manufacturer part number: TB143
Can be ganged together to create any number of contacts required. 90° - Wire enters from the top. 0.1" Spacing
This Terminal block is designed to be end-stackable on a PC board so that the designer may have any number of contacts needed. The design provides secure wire protection for a broad range of wire sizes (up to 14 AWG max). The housing is molded of 94V-0 fire retardant plastic.
These are angled at 90° - The screws are parallel to the PC Board, and the wires enter from the top (at a right angle to the PC Board).
Specifications:
Number of terminals: 3
QTY: 1 Terminal Block
manufacturer part number: TB143
Can be ganged together to create any number of contacts required. 90° - Wire enters from the top. 0.1" Spacing
This Terminal block is designed to be end-stackable on a PC board so that the designer may have any number of contacts needed. The design provides secure wire protection for a broad range of wire sizes (up to 14 AWG max). The housing is molded of 94V-0 fire retardant plastic.
These are angled at 90° - The screws are parallel to the PC Board, and the wires enter from the top (at a right angle to the PC Board).
Specifications:
- Housing: Polymide 66 resin, blue
- Terminals: 0.9 x 0.9 brass, tin plated
- Screws: M2.6 x 0.45P Steel zinc plated, Slot Drive
- Wire cage: Brass, nickel plated
- Rated 10 Amp, 300VAC
- Pitch: 5mm (.100")
Number of terminals: 3
QTY: 1 Terminal Block
