LL-400 Low Loss Coax Cable - w/ 10AWG Stranded Center Conductor - DIRECT BURIAL
USA Made Coax Cable!

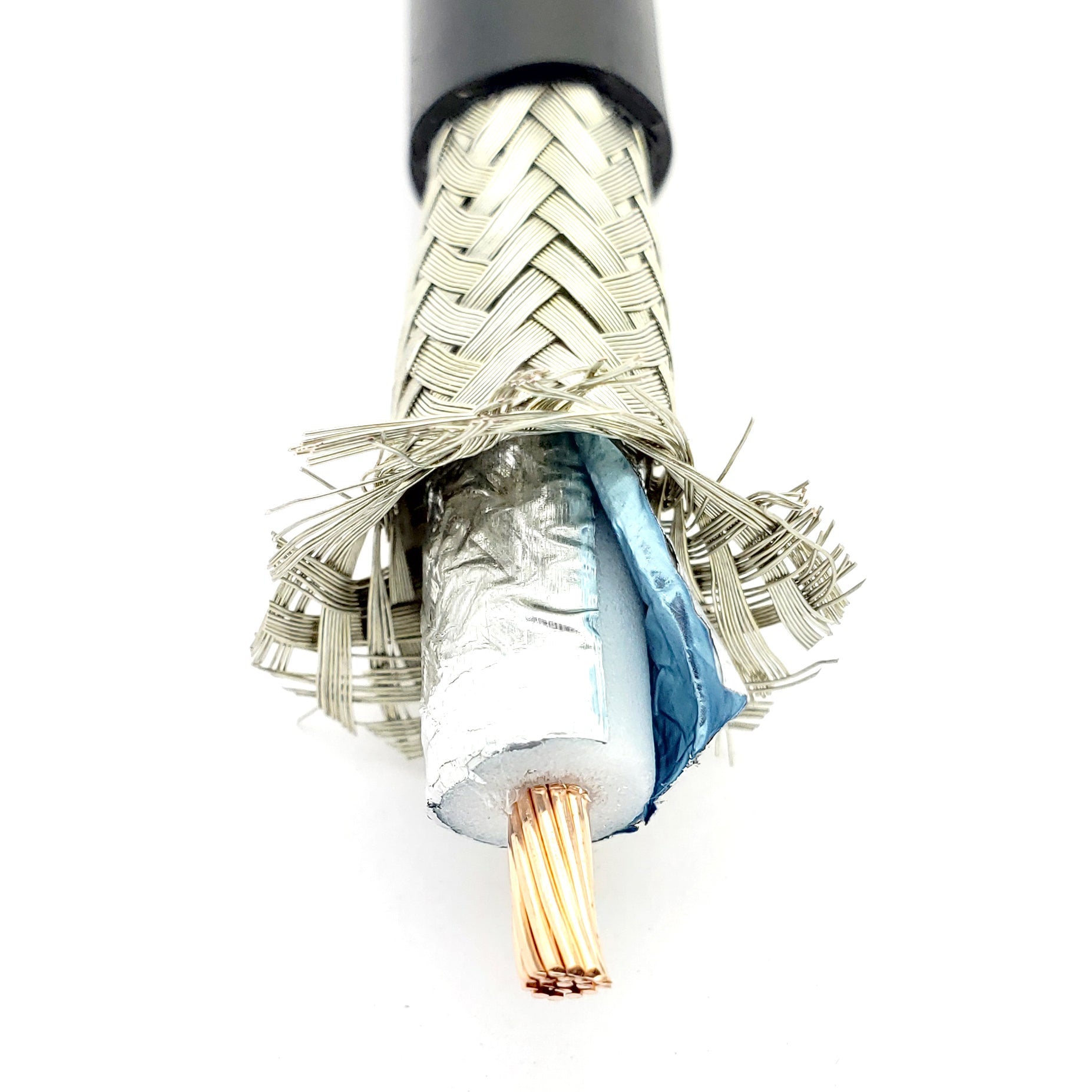

This is LL-400 Coax Cable, an LMR-400 Equivalent Coaxial Cable that meets or exceeds the original LMR-400 coax specifications. This is a very low-loss cable that is suitable for use from HF all the way through multi-gigahertz frequencies. This cable is approximately the same size as RG-8 Coax, and is an easy and effective upgrade to any transmitter or radio system. It features a foamed polyethylene dielectric, 10AWG - 19 Strand Copper center conductor, tinned copper braid and aluminum mylar foil shielding.

Direct Burial Rated - This cable will hold up to outdoor use and can even be buried in the ground without conduit.

Specifications:

TYPE:

RG 8/U/Low
Loss 400 Type

CONDUCTOR:
10 AWG STR BC

DIELECTRIC:
GIFPE

BRAID:
Foil + 95% TC

JACKET NOM. O.D:
Type 3A PE 0.405 Inches

NORMAL ATTENUATION MHZ db/100ft:
50 1.10
100 1.50
200 2.00
400 3.00
1000 5.00

NOMINAL CAPACITANCE pF/FT:
24.6

NOMINAL VELOCITY OF PROPAGATION:
84%

NOMINAL IMPEDANCE Ohms:
50

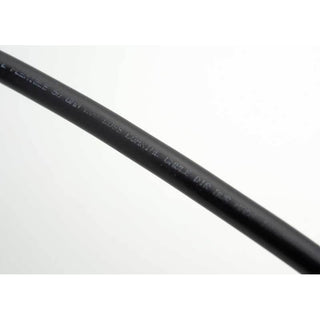

This coax is printed "LL400 50 OHM LOW LOSS COAXIAL CABLE MADE IN USA - DIRECT BURIAL" with linear foot markings.

This cable is sold by the foot, with price breaks at 50, 100, and 500 feet. To purchase, enter the quantity in feet that you would like to buy. Price breaks will applied automatically.


The following connectors work with this coax cable:

RP BNC Bulkhead Female: TES 430910
