LL-240 Low Loss Coax Cable - w/ 16AWG Stranded Center Conductor
SKU: VUPN6431
LL-240 Low Loss Coax Cable - w/ 16AWG Stranded Center Conductor - DIRECT BURIAL
USA Made Coax Cable!

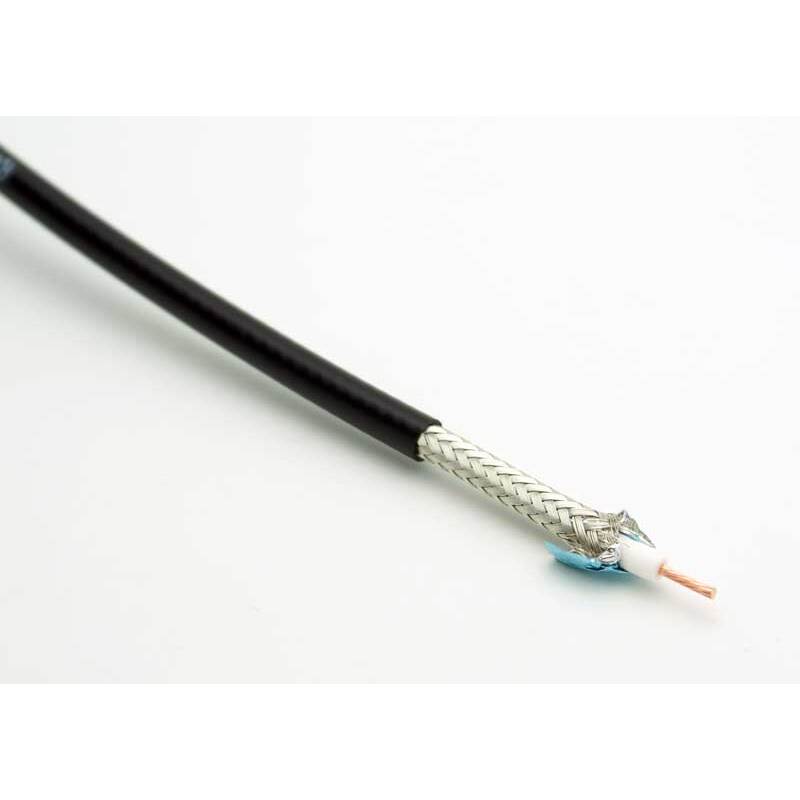

This is LL-240 coax cable, an LMR-240 Equivalent Coaxial Cable that meets or exceeds the LMR-240 specifications. LL-240 is a very low-loss cable that is suitable for use from VHF all the way through multi-gigahertz frequencies. This cable is approximately the same size as RG-8X (Mini-RG-8) Coax, and is an easy and effective upgrade to any transmitter or radio system. It features a foamed polyethylene dielectric, 16AWG - 19 Strand Copper center conductor, tinned copper braid and aluminum mylar foil shielding. CL2 / CMR Rated and ETL Verified.
Specifications:

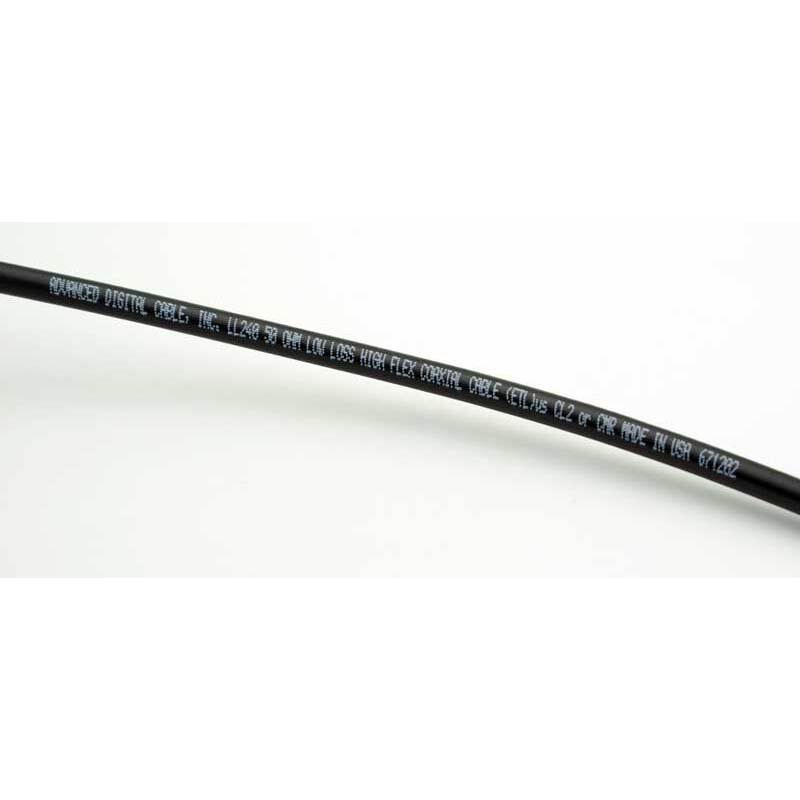

This coax is printed "LL240 50 OHM LOW LOSS HIGH FLEX COAXIAL CABLE (ETL)us CL2 or CMR MADE IN USA" with linear foot markings.
This cable is sold by the foot, with price breaks at 50, 100, and 500 feet. To purchase, enter the quantity in feet that you would like to buy. Price breaks will applied automatically.
The following connectors work with this coax cable:
USA Made Coax Cable!
This is LL-240 coax cable, an LMR-240 Equivalent Coaxial Cable that meets or exceeds the LMR-240 specifications. LL-240 is a very low-loss cable that is suitable for use from VHF all the way through multi-gigahertz frequencies. This cable is approximately the same size as RG-8X (Mini-RG-8) Coax, and is an easy and effective upgrade to any transmitter or radio system. It features a foamed polyethylene dielectric, 16AWG - 19 Strand Copper center conductor, tinned copper braid and aluminum mylar foil shielding. CL2 / CMR Rated and ETL Verified.
Specifications:
| Center Conductor AWG: | 16 AWG |
| Center Conductor Material: | Bare Copper |
| Center Conductor Stranding: | 19 Strand Bare Copper |
| Dielectric Material: | Foamed Polyethlene |
| Nominal Operation Diameter: | 0.242" |
| Braid AWG: | 34 AWG |
| Braid Material: | Tinned Copper |
| Tape Material: | Aluminum Mylar Foil |
| Final Jacket Material: | Polyethlene |
| Impedance: | 50 Ohms |
| Capacitance: | 24.8pF/Foot |
| Velocity Factor: | .84 |
| Frequency (MHz): | Nom dB/100 |
| 50MHz | 2.20dB |
| 100MHz | 3.30dB |
| 200MHz | 4.90dB |
| 400MHz | 5.30dB |
| 1000MHz | 8.90dB |
This coax is printed "LL240 50 OHM LOW LOSS HIGH FLEX COAXIAL CABLE (ETL)us CL2 or CMR MADE IN USA" with linear foot markings.
This cable is sold by the foot, with price breaks at 50, 100, and 500 feet. To purchase, enter the quantity in feet that you would like to buy. Price breaks will applied automatically.
The following connectors work with this coax cable:
| UHF Male: | TES 394841 |
| BNC Male: | TES 384862 |
| BNC Female: | TES 56093 |
| N Male: | TES 373491 |
| N Female: | TES 354507 |
| SMA Male: | TES 315399 |
| SMA Female: | TES 304759 |
| RP SMA Male: | TES 364735 |
| RP SMA Female: | TES 3394980 |
| RP TNC Male: | TES 394461 |
| RP TNC Female: | TES 354039 |
LL-240 Low Loss Coax Cable - w/ 16AWG Stranded Center Conductor - DIRECT BURIAL
USA Made Coax Cable!
This is LL-240 coax cable, an LMR-240 Equivalent Coaxial Cable that meets or exceeds the LMR-240 specifications. LL-240 is a very low-loss cable that is suitable for use from VHF all the way through multi-gigahertz frequencies. This cable is approximately the same size as RG-8X (Mini-RG-8) Coax, and is an easy and effective upgrade to any transmitter or radio system. It features a foamed polyethylene dielectric, 16AWG - 19 Strand Copper center conductor, tinned copper braid and aluminum mylar foil shielding. CL2 / CMR Rated and ETL Verified.
Specifications:
This coax is printed "LL240 50 OHM LOW LOSS HIGH FLEX COAXIAL CABLE (ETL)us CL2 or CMR MADE IN USA" with linear foot markings.
This cable is sold by the foot, with price breaks at 50, 100, and 500 feet. To purchase, enter the quantity in feet that you would like to buy. Price breaks will applied automatically.
The following connectors work with this coax cable:
USA Made Coax Cable!
This is LL-240 coax cable, an LMR-240 Equivalent Coaxial Cable that meets or exceeds the LMR-240 specifications. LL-240 is a very low-loss cable that is suitable for use from VHF all the way through multi-gigahertz frequencies. This cable is approximately the same size as RG-8X (Mini-RG-8) Coax, and is an easy and effective upgrade to any transmitter or radio system. It features a foamed polyethylene dielectric, 16AWG - 19 Strand Copper center conductor, tinned copper braid and aluminum mylar foil shielding. CL2 / CMR Rated and ETL Verified.
Specifications:
| Center Conductor AWG: | 16 AWG |
| Center Conductor Material: | Bare Copper |
| Center Conductor Stranding: | 19 Strand Bare Copper |
| Dielectric Material: | Foamed Polyethlene |
| Nominal Operation Diameter: | 0.242" |
| Braid AWG: | 34 AWG |
| Braid Material: | Tinned Copper |
| Tape Material: | Aluminum Mylar Foil |
| Final Jacket Material: | Polyethlene |
| Impedance: | 50 Ohms |
| Capacitance: | 24.8pF/Foot |
| Velocity Factor: | .84 |
| Frequency (MHz): | Nom dB/100 |
| 50MHz | 2.20dB |
| 100MHz | 3.30dB |
| 200MHz | 4.90dB |
| 400MHz | 5.30dB |
| 1000MHz | 8.90dB |
This coax is printed "LL240 50 OHM LOW LOSS HIGH FLEX COAXIAL CABLE (ETL)us CL2 or CMR MADE IN USA" with linear foot markings.
This cable is sold by the foot, with price breaks at 50, 100, and 500 feet. To purchase, enter the quantity in feet that you would like to buy. Price breaks will applied automatically.
The following connectors work with this coax cable:
| UHF Male: | TES 394841 |
| BNC Male: | TES 384862 |
| BNC Female: | TES 56093 |
| N Male: | TES 373491 |
| N Female: | TES 354507 |
| SMA Male: | TES 315399 |
| SMA Female: | TES 304759 |
| RP SMA Male: | TES 364735 |
| RP SMA Female: | TES 3394980 |
| RP TNC Male: | TES 394461 |
| RP TNC Female: | TES 354039 |
