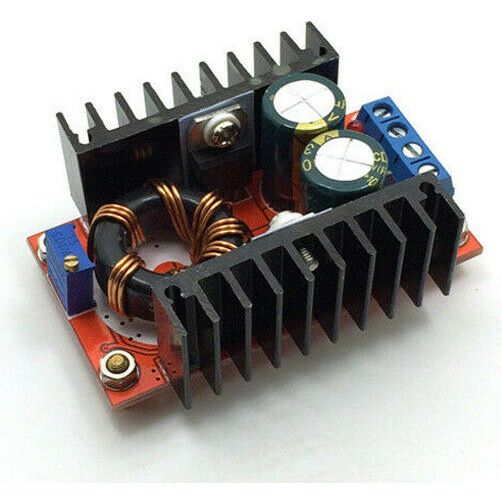

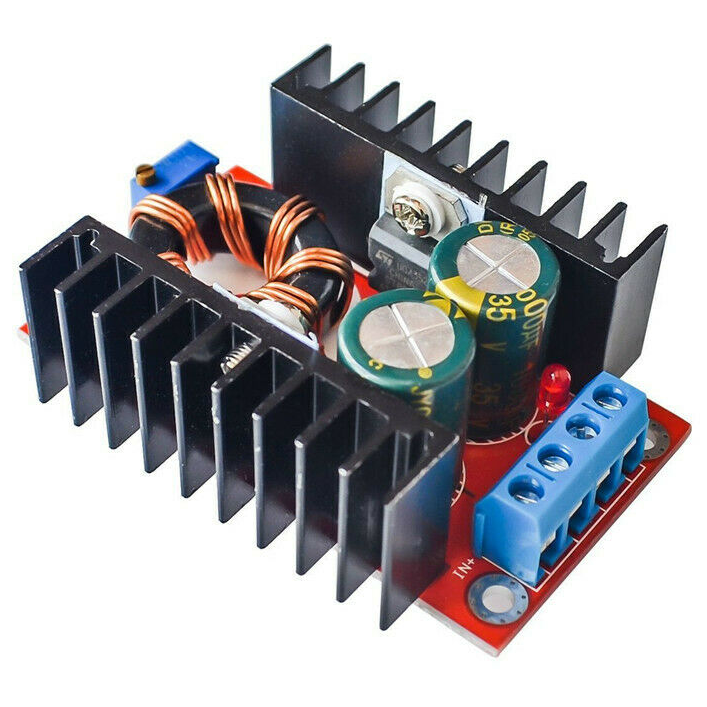

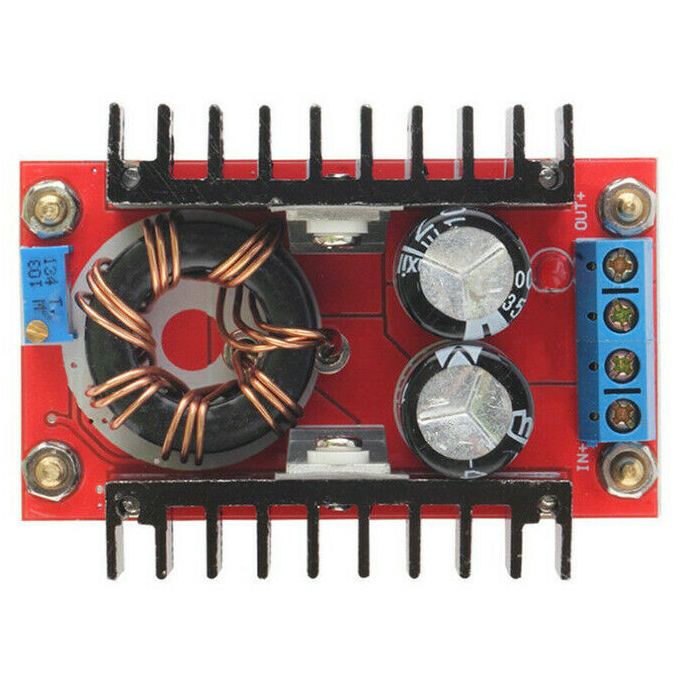

This is basically a much higher amperage version of our smaller VUPN7790 dc to dc step UP module. Its pretty simple. Not only that, but its the easiest way to quickly 'increase a DC voltage' on any project you are working on.

This unit also has a current control potentiometer, along with the standard voltage control potentiometer.

There is no easier way to regulate a DC voltage. The output voltage will always be maintained at the level you set, even if the input voltage lowers. As long as your input voltage meets or is under your output needs, this rule will stay the same.

Specification:



Module Properties: non-isolated step-up module (BOOST)

Input voltage :10-32V

Output voltage: 12-35V (adjustable)

Output Current: 6A (MAX)

Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)

Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)

Easy to drive 65W 90W dual-core notebook.

Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c

Conversion efficiency: 94%  (measured at Input 16V, output 19V 2.5A)

Output Ripple: 2% (MAX) 20M-bandwidth

Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

Full load temperature rise: 45°c

No-load current: 25mA typical

Voltage regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Short circuit protection: None (Please Install fuses and protection circuits at Input port.)

Input Reverse Polarity Protection: None (Please Series diode at the input port.)

These are roughly 2.56 inches by 0.94 inch by 1.85 inches. These measurements are not exact.

Package Includes:

1 x 150W Boost Converter

United States Stock at our retail store: Call for stock status.
