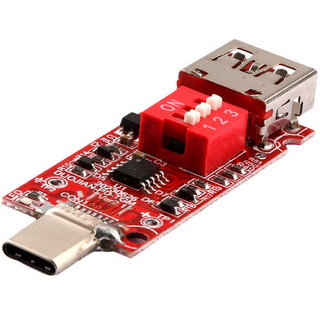

USB Type-C PD QC 3.0 Decoy Trigger Board - USB-C Output Voltage Selector
SKU: VUPN2121
Regular price
$12.95
- Unit price
- / per
USB Type-C PD QC 3.0 Decoy Trigger Board - USB-C Output Voltage Selector
Product features:
-PD decoy dual purpose, support 100W test;
-Uses DIP combination code to adjust the output voltage.
-PD decoy dual purpose, support 100W test;
-Uses DIP combination code to adjust the output voltage.
-Supports voltage output of 5V, 9V, 12V, 15V and 20V
-High-quality materials, countersunk feet double-sided tin reinforcement, high-current.
-Color: Often red, but may come in random color.
-Input voltage: 20V/5A (max)
-Power: support 100W
-Protocol: support PD3.0, compatible with QC2.03.0
-High-quality materials, countersunk feet double-sided tin reinforcement, high-current.
-Color: Often red, but may come in random color.
-Input voltage: 20V/5A (max)
-Power: support 100W
-Protocol: support PD3.0, compatible with QC2.03.0
Switch combination operation instructions:
Switch 1 (all others off) - Set to ON - Output = 20V
Switch 2 (all others off) - Set to ON -Output = 12V
Switch 3 (all others off) - Set to ON -Output = 5V
Switch 1 and 2 (3 Off)- Set to ON -Output = 15V
Switch 1,2 and 3 - All OFF - Output = 9V
Switch 1,2 and 3 - All OFF - Output = 9V
