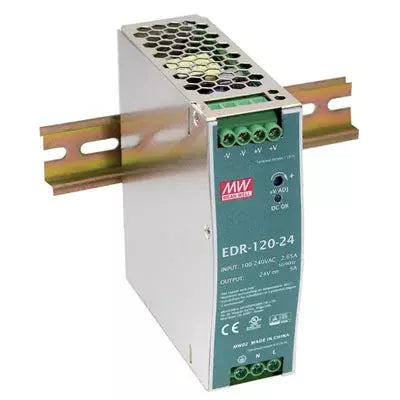

24V DC 5 Amps (120w) DIN Rail Mount Power Supply - Mean Well EDR-120-24
The Mean Well EDR-120-24 is a highly reliable and efficient 24V DC power supply, perfect for industrial automation and control systems. This 120W power supply offers an output current of 5 amps, ensuring stable and consistent power for your devices. Designed for DIN rail mounting, it is ideal for space-saving installations in control panels and enclosures.
This power supply features a wide input voltage range of 90-264V AC, accommodating various global power standards. Its high efficiency of up to 88.5% minimizes energy loss and heat generation, enhancing the longevity and performance of your equipment. With built-in protections against short circuit, overload, over voltage, and over temperature, the EDR-120-24 guarantees safety and reliability in demanding environments.
Compliant with international safety standards, including UL508, TUV EN60950-1, and CE, the Mean Well EDR-120-24 is a robust and dependable choice for your power supply needs.
Technical Specifications
| Specification | Details |
|---|---|
| Model | EDR-120-24 |
| Output Voltage | 24V DC |
| Output Current | 5A |
| Output Power | 120W |
| Input Voltage Range | 90-264V AC |
| Frequency Range | 47-63Hz |
| Efficiency | Up to 88.5% |
| Dimensions | 125.2 x 113.5 x 40mm (L x W x H) |
| Mounting Type | DIN Rail (TS-35/7.5 or TS-35/15) |
| Protection | Short circuit, overload, over voltage, over temperature |
| Operating Temperature | -20°C to +60°C |
| Safety Standards | UL508, TUV EN60950-1, CE |
| Cooling Method | Free air convection |
| Weight | 0.55 kg |
| Mean Time Between Failures (MTBF) | 561.6K hours (25°C) |
Enhance your industrial automation setup with the Mean Well EDR-120-24, a power supply that combines performance, reliability, and safety.
