64x32 Color LED Matrix Screen (RGB) for Arduino or Raspberry Pi
This is a really cool giant LED matrix. It gives you a huge space to display your simple color images or text or images.
Larger programs written for this tend to slow or freeze the UNO, so we recommend the MEGA 2560 to run this. Thats what we are using on the in store display.
The Arduinos aren't included, but we sell those too! You can also use this with a Raspberry Pi or other capable microcontroller as long as you know what you are doing. We can't offer help with that. But its super cool that you can do it if you are so inclined.
You MUST supply 5V 3A+ power to the panel. This can NOT be powered off the Arduino or you will kill your Arduino/Pi!

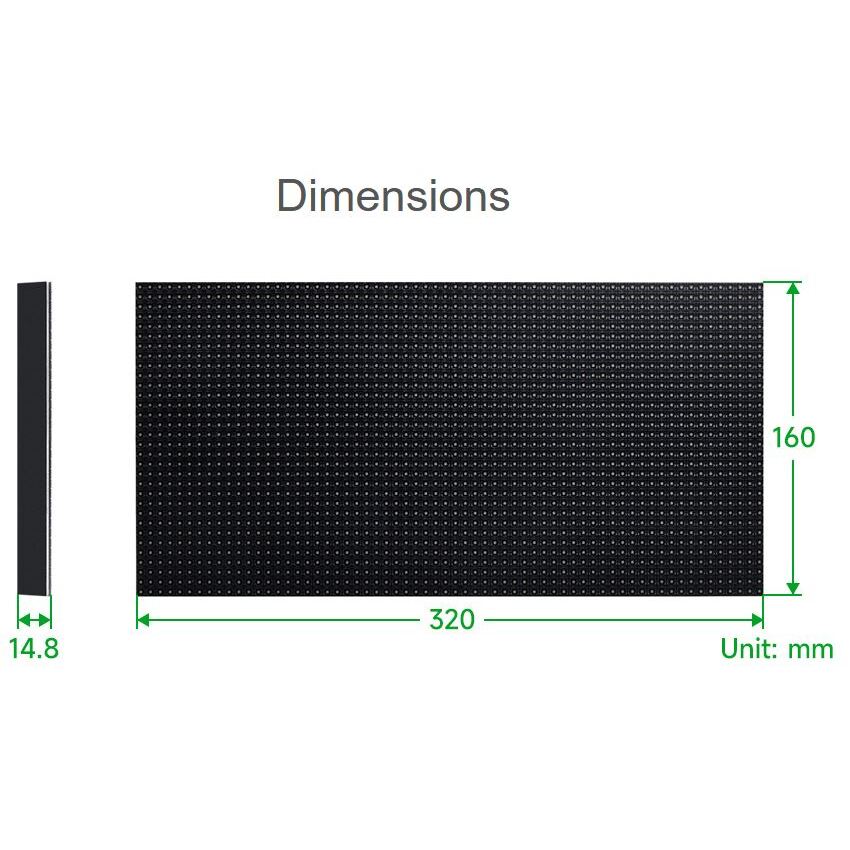

| Dimensions | 320mm × 160mm |
|---|---|
| Pixels | 64×32=2048 DOTS |
| Pitch | 5mm |
| Pixel form | 1R1G1B |
| Viewing angle | ≥140° |
| Control type | synchronization |
| Driving | 1/16 scan |
| Header | HUB75 |
| Power supply | 5V / 4A (VH4 header input) |
| Power | ≤20W |

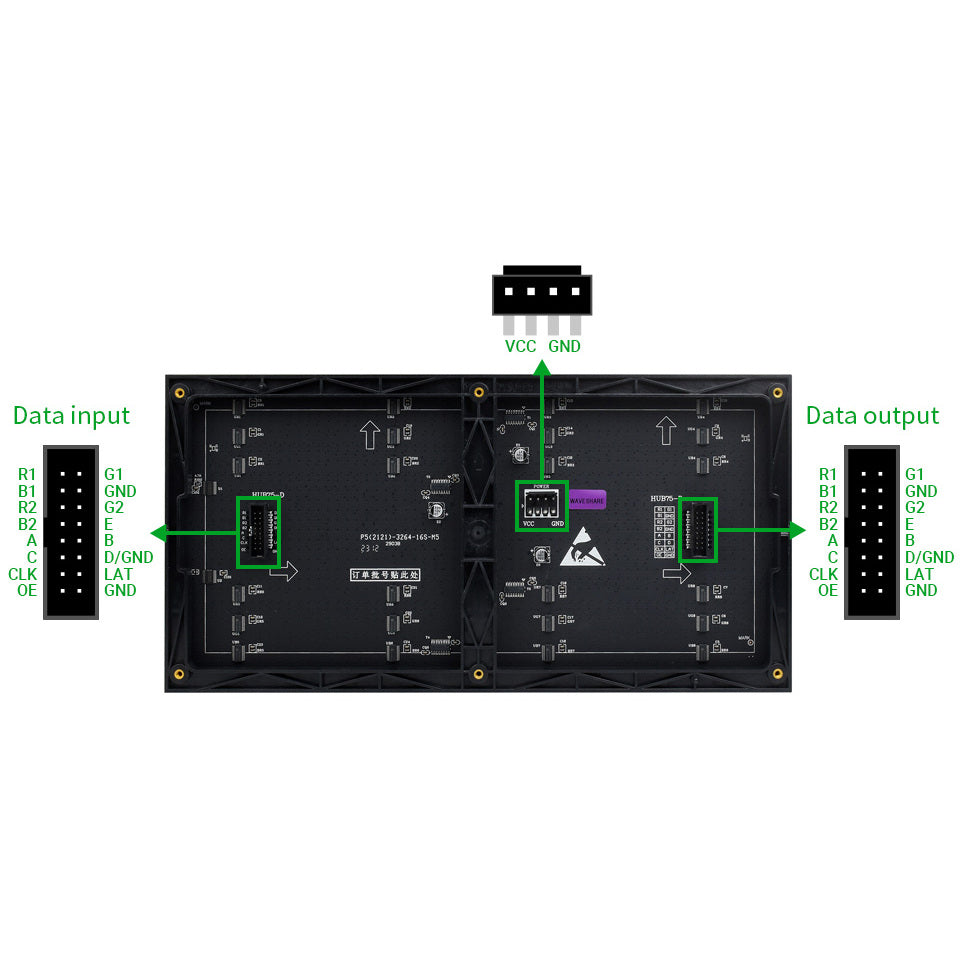

| Pin | Description | Pin | Description |
|---|---|---|---|
| VCC | 5V power input | GND | Ground |
| R1 | R higher bit data | R2 | R lower bit data |
| G1 | G higher bit data | G2 | G lower bit data |
| B1 | B higher bit data | B2 | B lower bit data |
| A | A line selection | B | B line selection |
| C | C line selection | D | D line selection |
| E | E line selection | CLK | clock input |
| LAT/STB | latch pin | OE | output enable |
Wanna get some information on how to use this awesome screen? Check out Waveshare help wiki for theis product here!
Micro controller and power supply not included.
NOTE: Vetco can not offer technical assistance on this product.
