600W DC-DC Step-up Transformer - 10-60V in, 12-80V out

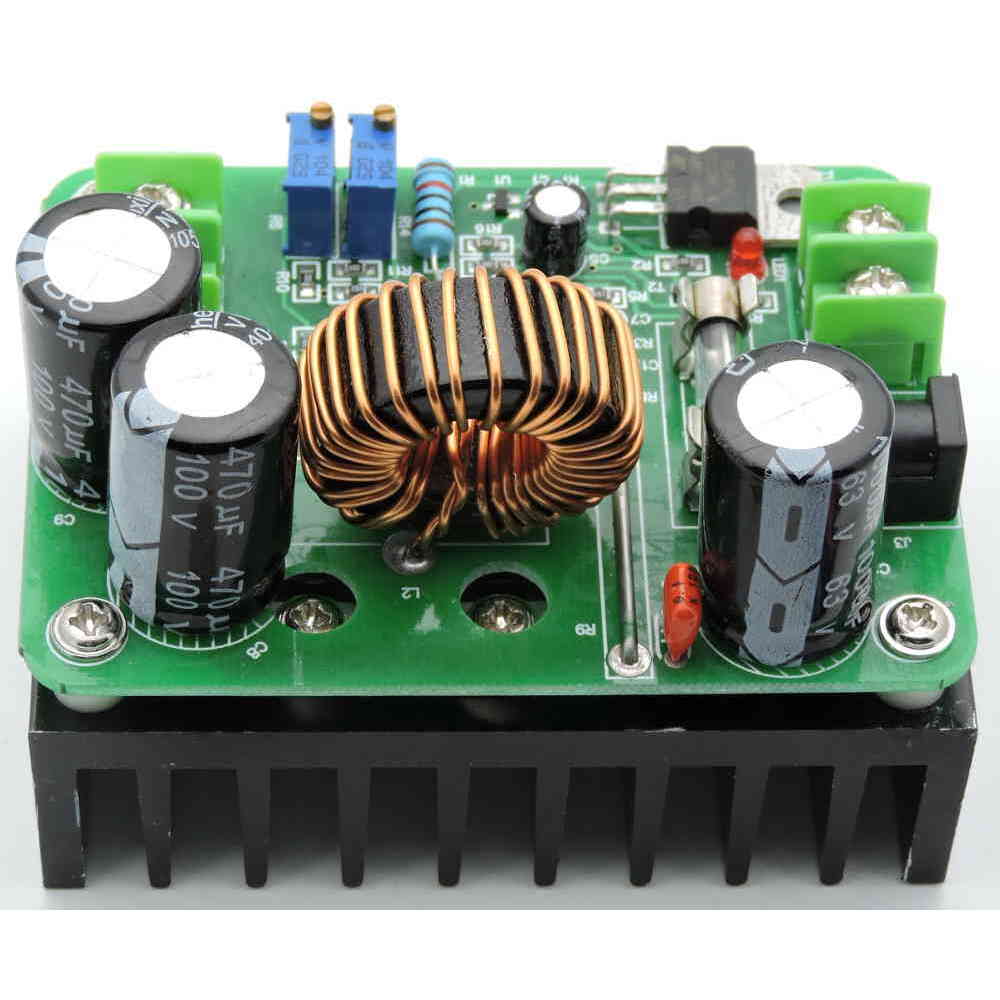

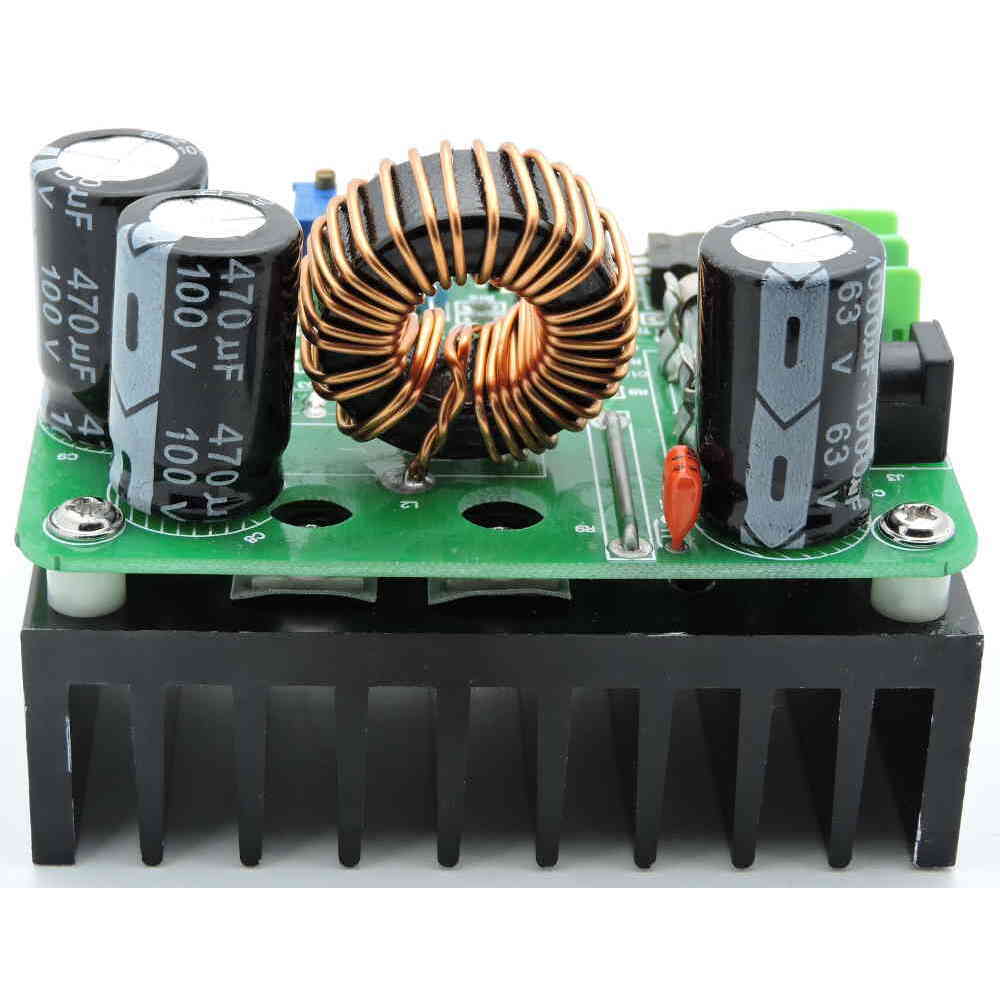

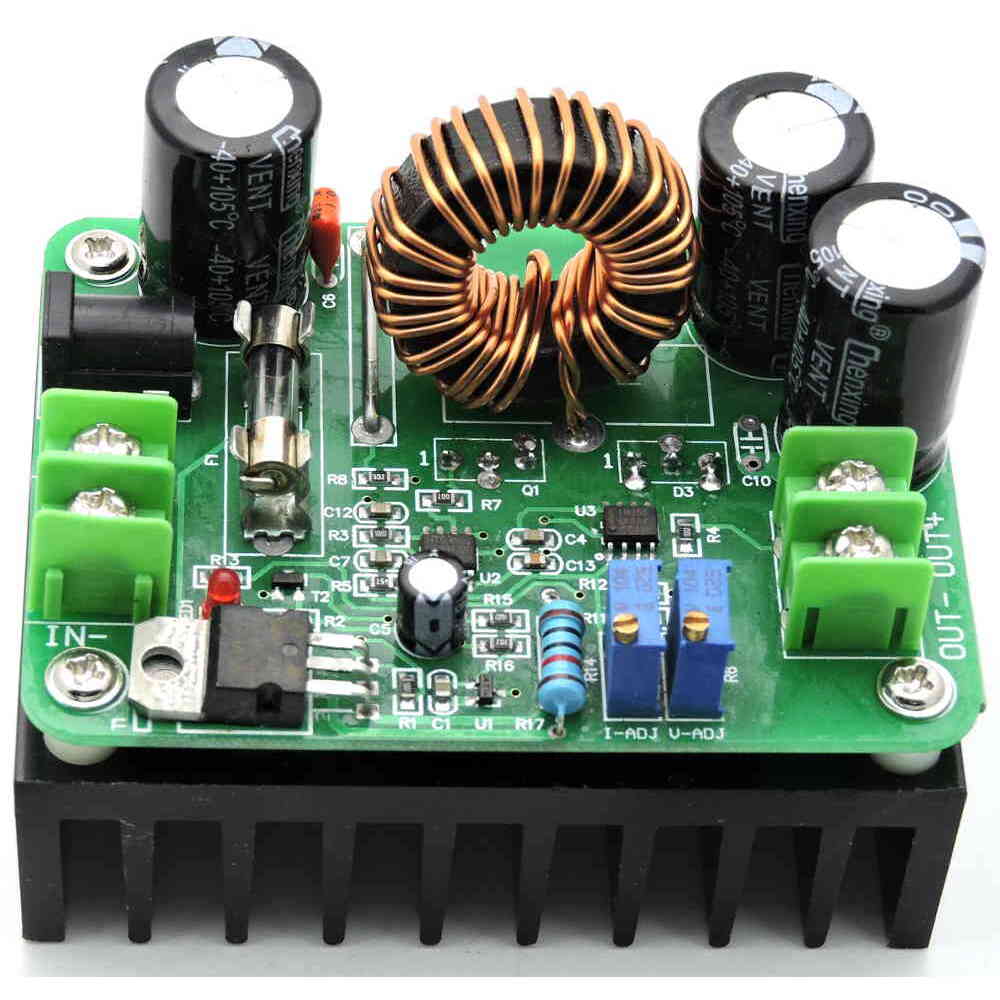

This is a beefy, DC to DC, Step-up Boost Converter. Includes a large heatsink on the bottom.
Specifications:
- Input voltage: 12 to 60 VDC
- Input current: Up to 15A
- Output voltage: 12 to 80 VDC
- Output current: Up to 10A
- Conversion efficiency: Up to 95% (depends on input/output voltages)
- Short circuit protection: 5x20mm Fuse (included)
- Size: 8.5 x 6.2 x 6.0cm
NOTE: These boards are imported from China (but we have U.S. stock) and the manufacturer has been known to change certain characteristics of the boards depending on what parts are available. These changes include color of circuit board. We have seen red, green and blue. However, these characteristic changes and substitutions are done without notice, and are extremely unreliable to plan on. So none of these specific characteristics are guaranteed. And in most cases, we are unable to guarantee or select specific boards with any of these specific characteristics based on request. None of these changes will affect the physical or electrical functionality of the board.
